CAI - MARATHON MOTORS 056T17F15642

B07J29MJMG

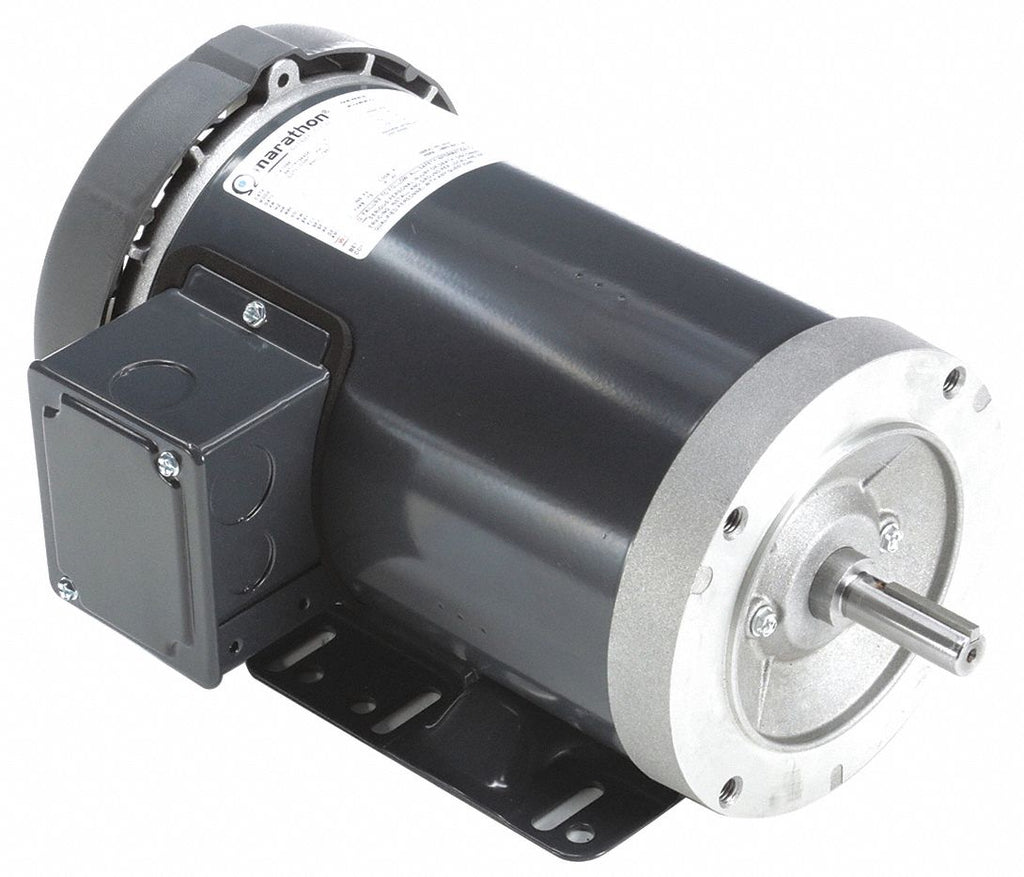

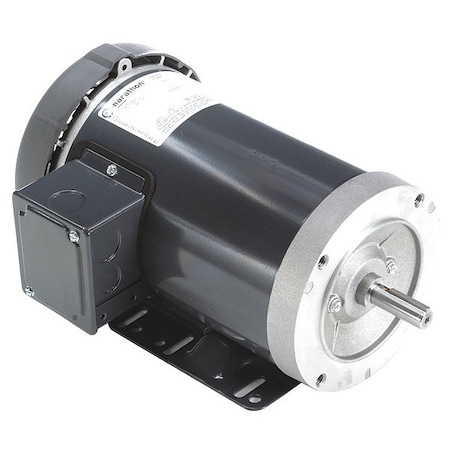

Marathon Motors 1 HP General Purpose Motor,3-Phase,1725 Nameplate RPM,Voltage 575,Frame 56HC

Marathon Motors 1 HP General Purpose Motor,3-Phase,1725 Nameplate RPM,Voltage 575,Frame 56HCzoom

Attributes

Key Value
ApplicationApplication
ApprovalApproval
CC NumberCC003A
CompositionRolled Steel
Constant Torque Speed R.Constant Torque Speed R.
Country of Origin (subj.Mexico
DutyContinuous
Duty CycleContinuous
EfficiencyEfficiency
Efficiency %85.5 %
EnclosureTotally Enclosed Fan Co.
Family SeriesMarathon Electric Motors
Frame56HC
Frame MaterialFrame Material
Frequency RatingFrequency Rating
Full Load Amps1.30
Green Certification or .NEMA Premium(R) Rated
Gross Weight0 lbs
Horsepower1 hp
HP1
Hz60
Ins. ClassF
Insulation ClassInsulation Class
Inverter RatedNo
ItemGeneral Purpose Motor
Item Number056T17F15642
Kilowatts0.75 kW
Length Less Shaft12 1/4 in
ManufacturerMarathon Electric
Manufacturer Part NumberK709A
Manufacturers Warranty .1 yr
Max. Ambient Temp.40 Degrees C
Motor ApplicationGeneral Application
Motor BearingsBall
Motor Design3-Phase
Motor Enclosure DesignTotally Enclosed Fan-Co.
Motor FLAMotor FLA
Motor Frame MaterialSteel
Motor Mounting PositionHorizontal
Motor Mounting TypeFace/Base
Motor Service Factor1.15
Motor Shaft DesignKeyed
Motor Shaft RotationCW/CCW
Motor Thermal ProtectionNone
Mounting TypeBolt-on Base
Nameplate RPM1,725
NEMA Frame56HC
Net Weight42 lbs
No. of Speeds1
Nominal Efficiency85.5 %
Nominal Voltage575 VAC
Number of SpeedsNumber of Speeds
Overall Length14 1/8 in
Phase3, Three
RPM1,725 RPM
RPM Group1701-1800
RPM Range1,701-1,800
Service FactorService Factor, 1.15
Shaft Dia.5/8 in
Shaft Length1 15/16 in
SpeedsSpeeds
StandardsCE, CSA, UL Recognized
UnspscUnspsc
Usable @ 200VNo
Usable @ 208VNo
Variable Torque Speed R.Variable Torque Speed R.
Voltage575V AC
Voltage (AC)575 VAC
Voltage Compatibility575V AC
Weight42 lb

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG8498290336.01In Stock15Marathon Motors42.0336.0 @ 1
thumbzoomGalco056T17F15642-MARA453.671In StockMarathon Electric42.0453.67 @ 1
thumbzoommecampbell.com056T17F15642541.411In Stock33Marathon Motors541.41 @ 1
thumbzoomsustainablesupply.comC2792771650.591In StockMarathon42.0650.59 @ 1
thumbzoompumpproducts.com056T17F15642795.971In StockMarathon795.97 @ 1
