Meltric 63-68073

B079PB45WR

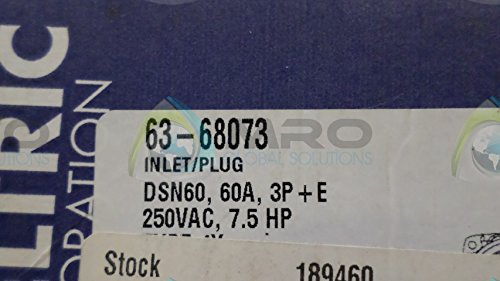

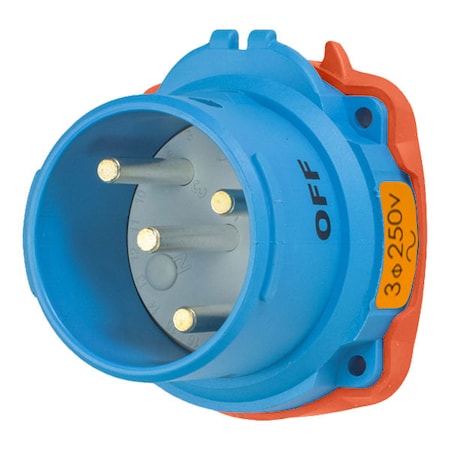

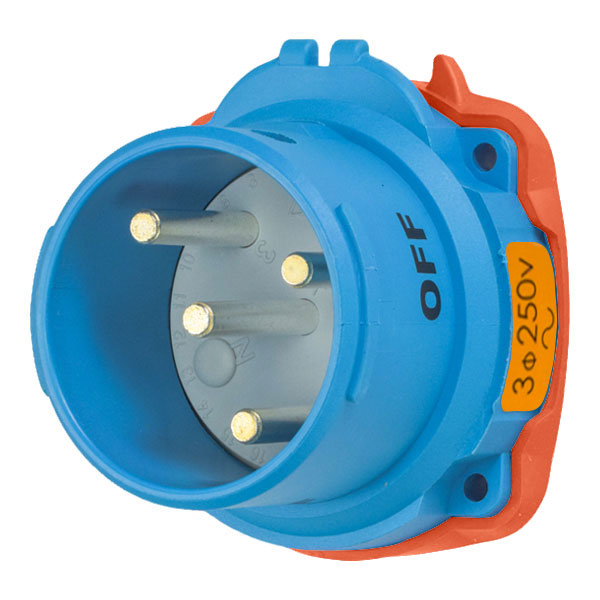

Meltric 63-68073 60 Amp, 250 Volt Inlet, Watertight

Meltric 63-68073 60 Amp, 250 Volt Inlet, Watertightzoom

Attributes

Key Value
Accessory Size3
Amps60
ColorBlue
Contact Configuration3P+G
Country of Origin (subj.United States
CSA ListingcCSAus || 155873 || C22.
Dimensions3.07 in Dia x 2.13 in L
EnclosureIP66/IP67/IP69k
Frequency60 Hz
Frequency Rating60
Horsepower Rating7.5HP
Impact RatingIK08
Keying Position07
Load Break, Abnormal Ov.90A
Load Break, Normal Oper.60A
MaterialPolyester, Poly
Maximum Operating Tempe.140F (60C)
Minimum Operating Tempe.-40F (-40C)
NEMA RatingNEMA 4X
NEMA Watertightness4X
Number of Auxiliary Con.NO AUX
Number of Notch Positio.24
Number of Poles3
Number of Wires4
Phase Cond. Strip Len.7/8 in (22 mm)
Phase Terminal Tighteni.15 IN-LBS / 1.7 N-M
Phase Terminal TypeScrew terminal
Primary IP Rating66/67
Product Line12
Rated Current60A
Rated Voltage250 VAC
Secondary IP Rating69
SeriesDSN60
Short Circuit Rating100 KA - MAKE & WITHSTA.
Short Circuit Rating, F.100 KA 125A (200%) RK1 .
Temperature Rating (Deg.-40 to 140
Terminal TypeScrew
TypeInlet, Switch Rated
UL ListingULC || E79796 VOLUME 8 .
Voltage Color CodeOrange
Voltage Rating110/125/220/250
Volts AC240
Wire Temperature Rating60C
Wiring Capacity14 AWG - 4 AWG
Wiring Capacity, Type W14 AWG - 4 AWG
