Meltric 63-68043

mpn63-68043
brandname: Meltric Plugs & Receptacles
manufacturername: Meltric Plugs & Receptacles

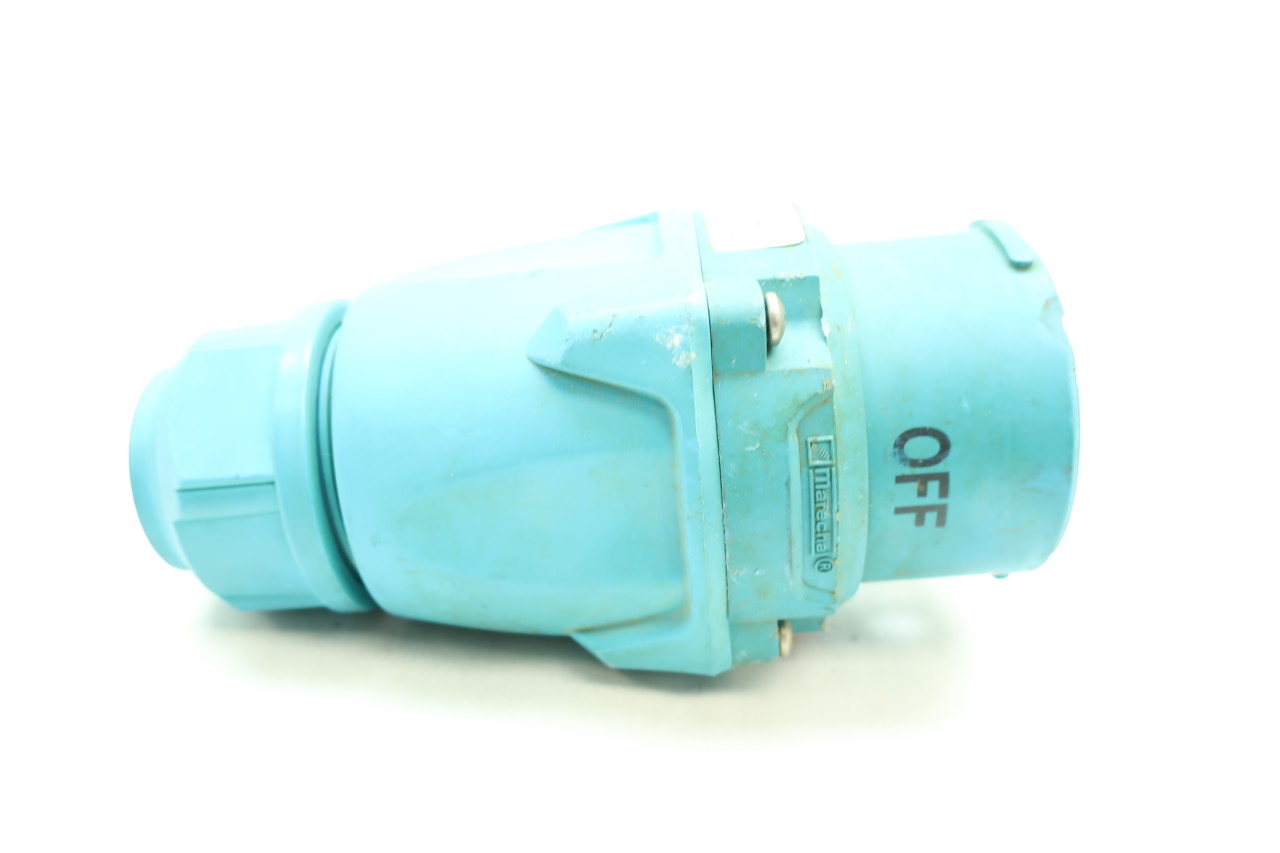

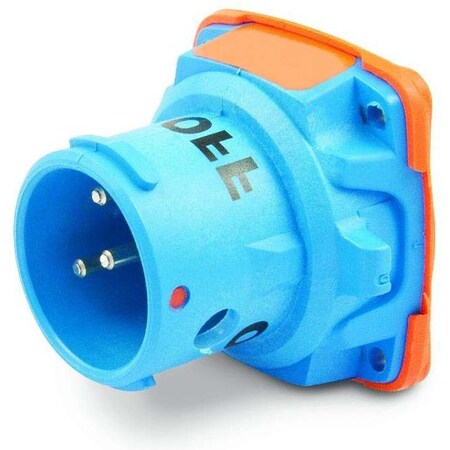

Meltric 63-68043, Inlet

Meltric 63-68043, Inlet

zoom

Brand: Meltric
PartNumber: 63-68043
PackageQuantity: 1
Binding: Misc.
Manufacturer: Meltric
Label: Meltric

Attributes

Key	Value
Accessory Size	3
Amps	60
Approvals	cCSAus, cUL
Aux/Pilot Contacts	None
Case Material	Non-Metallic
Color	Blue
Connection Type	Inlet
Contact Configuration	3P+G
CSA Listing	cCSAus \|\| 155873 \|\| C22.
Current Rating	60 A
Family Series	Meltric Plugs & Recepta.
Frequency	60 Hz
Gross Weight	0.6125 lbs
Horsepower	20
Horsepower Rating	20HP
Impact Rating	IK08
IP Rating	IP66, IP67, IP69 ; NEMA.
Item Number	63-68043
Keying Position	04
Load Break, Abnormal Ov.	90A
Load Break, Normal Oper.	60A
Manufacturer	Meltric
Manufacturer Part Number	63-68043
Material	Poly
Maximum Operating Tempe.	140F (60C)
Minimum Operating Tempe.	-40F (-40C)
NEMA Watertightness	4X
Net Weight	0.572 lbs
Number of Auxiliary Con.	NO AUX
Number of Notch Positio.	24
Number of Poles	3
Phase Cond. Strip Len.	7/8 in (22 mm)
Phase Terminal Tighteni.	15 IN-LBS / 1.7 N-M
Phase Terminal Type	Screw terminal
Primary IP Rating	66/67
Product Line	12
Product Series	DSN60
Rated Current	60A
Rated Voltage	480 VAC
Secondary IP Rating	69
Series	DSN Series
Short Circuit Rating	100 KA - MAKE & WITHSTA.
Short Circuit Rating, F.	100 KA 125A (200%) RK1 .
Temperature Range (F)	-40-140 ?F
Terminal Type	Screw
Type	Inlet
UL Listing	ULC \|\| E79796 VOLUME 8 .
Voltage	480 V
Voltage Color Code	Red
Voltage Rating	480 V
Volts AC	480
Wire Size	14 AWG, 4 AWG
Wire Size Range	4-14 AWG
Wire Temperature Rating	60C
Wiring Capacity	14 AWG - 4 AWG
Wiring Capacity, Type W	14 AWG - 4 AWG

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	NRI Industrial	D658632	109.48	1	In Stock		MELTRIC		109.48 @ 1
	standardelectricsupply.com	2205056	198.76	1	In Stock		Meltric		198.76 @ 1
	Galco	63-68043-MELC	228.49	1	12		Meltric	0.6125	228.49 @ 1
	electricalparts.com	63-68043	229.7456	1	20		Meltric		229.7456 @ 1
	Platt.com	0655773	230.15	1	35		Meltric		230.15 @ 1
	Walker Industrial	63-68043	250.16	1	In Stock	17	Meltric		250.16 @ 1
	Airline Hydraulics	MELTRIC 63-68043	257.9	1	1		Meltric		257.9 @ 1
	steinerelectric.com	235942	258.24	1	In Stock		MELTRIC		258.24 @ 1
	Zoro	G6501637	260.17	1	In Stock	2	Meltric		260.17 @ 1
	mayerelectric.com	MEL6368043	296.91	1	In Stock		MELTRIC		296.91 @ 1
	us.rs-online.com	72430427	331.7	1	In Stock		Meltric		331.7 @ 1
	AmazonTP	B075QRNQGM	389.68	1	In Stock	15	Meltric		389.68 @ 1
