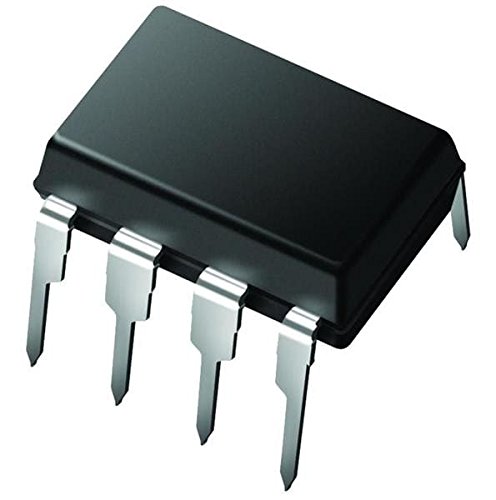

25AA160B-I/P

mpn25AA160B-I/P
brandname: Microchip Technology Inc.
manufacturername: Microchip Technology Inc.

EEPROM 16k 2kx8 32B Pg-1.8V (10 pieces)

PartNumber: 25AA160B-I/P
Model: 25AA160B-I/P
PackageQuantity: 10
Manufacturer: Microchip Technology
Label: Microchip Technology

Attributes

Key	Value
Access Time	50 ns, 160 ns
Address Hold Time	250 ns
Address Setup Time	150 ns
Alternate Part No.	579-25AA160B-I/P
Base Product Number	25AA160
Brand	Microchip Technology
Category	Integrated Circuits (IC.
Clock Frequency	10 MHz
Current, Input, Leakage	1 uA
Current, Output, Leakage	?1 ?A
Data Retention	200 Years, 200 yr
Density	16 kbit
Description	IC EEPROM 16KBIT SPI 10.
Detailed Description	EEPROM Memory IC 16Kbit.
Digi-Key Part Number	25AA160B-I/P-ND
DigiKey Programmable	Verified
Dimensions	0.400 x 0.280 x 0.195 in
ESD Voltage	>4 kV
Fall Time	500 ns
Height	0.195" (5mm)
Input Capacitance	7 pF
Interface	SPI Bus
Interface Type	SPI
Length	0.4 in
Manufacturer	Microchip, Microchip Te.
Manufacturer Part No.	25AA160B-I/P
Manufacturer Product Nu.	25AA160B-I/P
Manufacturer Standard L.	10 Weeks
Maximum Clock Frequency	3 MHz
Maximum Operating Curre.	6 mA
Maximum Operating Tempe.	+ 85 C, +85 ?C
Memory Capacity	16 KB
Memory Format	EEPROM
Memory Interface	SPI
Memory Organization	2K x 8
Memory Size	16 kbit, 16Kbit
Memory Type	Serial EEPROM, Non-Vola.
Mfr	Microchip Technology
Minimum Operating Tempe.	- 40 C, -40 ?C
Mounting Style	Through Hole
Mounting Type	Through Hole
Number of Bits per Word	8 bit
Number of Pins	8
Operating Current	6 ; 3 mA, 6 mA
Operating Supply Voltage	1.8 V, 5.5 V
Operating Temperature	-40?C ~ 85?C (TA), -40 .
Operating Voltage Range	1.8 to 5.5 V
Organisation	2 k x 8
Organization	2048 x 8
Output Capacitance	7 pF
Package	Tube
Package / Case	8-DIP (0.300", 7.62mm)
Package Type	PDIP
Package/Case	PDIP-8
Packaging	Tube
Product Category	EEPROM
Product Header	16K SPI Bus Serial EEPR.
Product Status	Active
Programmable Voltage	1.8 V
Rise Time	500
Series	-, 25AA160B Series
Supplier Device Package	8-PDIP
Supply Voltage	1.8-5.5 V
Supply Voltage - Max	5.5 V
Supply Voltage - Min	1.8 V
Technology	EEPROM
Temperature Operating R.	-40 to +85 ?C
Voltage - Supply	1.8V ~ 5.5V
Voltage, Input, High Le.	2.8 V
Voltage, Input, Low Lev.	0.36 V
Voltage, Output, High L.	1.3 V
Voltage, Output, Low Le.	0.2 V
Width	0 in
Write Cycle Time - Word.	5ms

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Brand	Preferred Tier
Digi-Key	665592	0.78	480	128	Microchip Technology	0.78 @ 480
Newark	30H1570	0.827	480	120	MICROCHIP	0.827 @ 480
us.rs-online.com	70045901	1.25	1	44	Microchip Technology Inc.	1.25 @ 1
swatee.com	25AA160B-I/P	1.3	1	209	Microchip	1.3 @ 1
