Molex / Waldom 39-29-4029

B00I2H1G9W

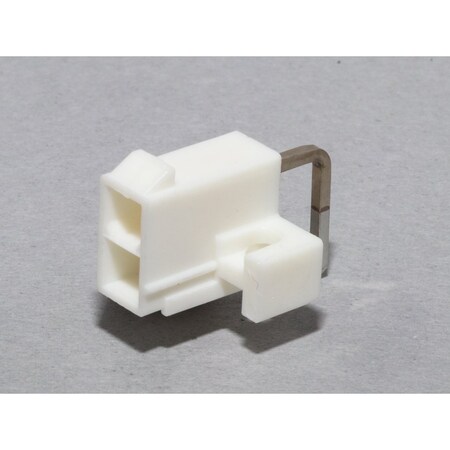

Molex / Waldom 39-29-4029 Connector Power

Molex / Waldom 39-29-4029 Connector Powerzoom

Attributes

Key Value
Alternate Part No.538-39-29-4029
ApplicationsGeneral Purpose, Indust.
BrandMolex
ColorNatural
Connector TypeHeader
Contact FinishGold Plated
Contact Finish - MatingGold
Contact Finish - PostTin
Contact Finish Thicknes.30.0?in (0.76?m)
Contact Finish Thicknes.100.0?in (2.54?m)
Contact GenderPin (Male)
Contact Length - Mating-
Contact Length - Post0.142" (3.60mm)
Contact MaterialBrass
Contact PlatingGold
Contact Plating Thickne.0.762 ?m
Contact ShapeSquare
Contact TypeMale Pin
Current Rating13 A
Current Rating (Amps)-
Fastening TypeLocking Ramp
FeaturesMounting Flange
Flammability RatingUL 94V-0
Hole Center to Center4.2 mm
Housing MaterialNylon
Ingress Protection-
Insulation ColorNatural
Insulation Height0.378" (9.60mm)
Insulation MaterialPolyamide (PA66), Nylon.
ManufacturerMolex
Manufacturer Part No.39-29-4029
Mated Stacking Heights-
MaterialNylon
Material Flammability R.UL94 V-0
Max. Temp.260?C
Max. Voltage600V
MfrMolex
Mounting AngleRight
Mounting TypeThrough Hole, Right Ang.
Number of Contacts2
Number of Positions2
Number of Positions Loa.All
Number of Rows2
Operating Temperature-
Overall Contact Length-
Package Quantity1
PackagingBulk
Part # Aliases0039294029 5569-02AG1-2.
Part StatusActive
Pitch4.2 mm
Pitch - Mating-
Product CategoryHeaders & Wire Housings
Product TypeHeader Assemblies
Row Spacing5.5 mm
Row Spacing - Mating0.165" (4.20mm)
Series5569
ShroudingShrouded - 4 Wall
StandardsCSA Certified; UL E29179
StyleBoard to Cable/Wire
Terminal FinishTin Plated
Terminal TypeThrough Hole
TerminationSolder
Termination StyleThrough Hole
TradenameMini-Fit Jr.
TypePin Header
Voltage Rating-, 600 V

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Avnet00392940290.8546001190Molex0.854 @ 600
Onlinecomponents.com39-29-40290.941664MOLEX / WALDOM0.94 @ 1
WaldomMOLEX 39-29-40291.1850612MOLEX1.18 @ 50
thumbzoomjensentools.com101884311.411612Molex1.41 @ 1
thumbzoomNEP Electronics39-29-40291.470650612Molex1.4706 @ 50
thumbzoomDigi-KeyWM19550-ND1.81155Molex1.81 @ 1
Arrow39-29-40291.91611796Molex1.916 @ 1
thumbzoomNewark81C95522.031612MOLEX2.03 @ 1
thumbzoomRadwell39-29-40292.2590055MOLEX2.25 @ 900
RS Delivers670-55302.8344155Molex2.8344 @ 1
thumbzoomswatee.com39-29-40294.241108Molex4.24 @ 1
thumbzoomZoroG20044254695.46055Molex95.4 @ 60
AmazonTPB07QQDRTPW99.361551Molex / Waldom99.36 @ 1
AmazonSCB07QQDRTPW99.36155Molex / Waldom99.36 @ 1
