Molex / Waldom 15-91-2200

mpn15-91-2200
brandname: Molex Incorporated
manufacturername: Molex Incorporated

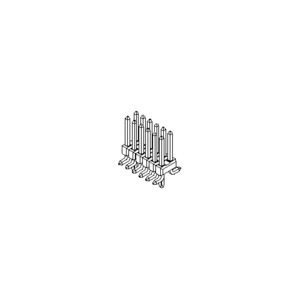

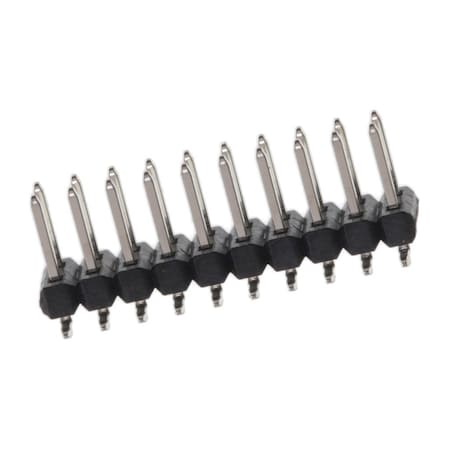

15-91-2200, Conn Unshrouded Header HDR 20 POS 2.54mm Solder ST SMD C-Grid Tube (25 Items)

Brand: Molex / Waldom
PartNumber: 15-91-2200
Model: 15-91-2200
Manufacturer: Molex / Waldom
Label: Molex / Waldom

Attributes

Key	Value
Alternate Part No.	538-15-91-2200
Applications	Automotive, General Pur.
Base Product Number	001591
Brand	Molex
Category	Connectors, Interconnec.
Color	Black
Connector Type	Header, Breakaway
Contact Finish	Tin Plated
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Finish Thicknes.	150.0?in (3.81?m)
Contact Finish Thicknes.	150.0?in (3.81?m)
Contact Gender	Pin (Male)
Contact Length - Mating	0.240" (6.10mm)
Contact Length - Post	-
Contact Material	Copper Alloy, Phosphor .
Contact Plating	Tin
Contact Plating Thickne.	3.81 ?m
Contact Shape	Square
Contact Type	Male Pin
Current Rating	3 A
Current Rating (Amps)	-
Description	CONN HEADER SMD 20POS 2.
Detailed Description	Connector Header Surfac.
Digi-Key Part Number	WM17456-ND
Fastening Type	Push-Pull
Features	Breakaway, -
Flammability Rating	UL 94V-0
Hole Center to Center	2.54 mm
Housing Material	Thermoplastic
Ingress Protection	-
Insulation Color	Black
Insulation Height	0.090" (2.29mm)
Insulation Material	Liquid Crystal Polymer .
Latching Type	Unlatched
Manufacturer	Molex
Manufacturer Part No.	15-91-2200
Manufacturer Product Nu.	0015912200
Manufacturer Standard L.	27 Weeks
Mated Stacking Heights	-
Material	High Temperature Thermo.
Material Flammability R.	UL94 V-0
Max. Temp.	245?C
Max. Voltage	250V
Mfr	Molex
Mounting Angle	Vertical
Mounting Type	Surface Mount
Number of Contacts	20
Number of Positions	20
Number of Positions Loa.	All
Number of Rows	2
Operating Temperature	-
Overall Contact Length	-
Package	Tube
Package Quantity	1
Packaging	Tube
Part # Aliases	0015912200 A713080020N
Pitch	2.54 mm
Pitch - Mating	0.100" (2.54mm)
Product Category	Headers & Wire Housings
Product Status	Active
Product Type	Headers
Row Spacing	2.54 mm
Row Spacing - Mating	0.100" (2.54mm)
Series	71308, C-Grid 71308
Shrouding	Unshrouded
Standards	CSA Certified; UL E29179
Style	Board to Board or Cable
Terminal Finish	Tin Plated
Terminal Type	Surface Mount
Termination	Solder
Termination Style	SMD
Tradename	C-Grid
Type	Breakaway
Voltage Rating	250 V, -

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Brand	Preferred Tier
Heilind Electronics	15-91-2200	0.56062	3402	1134	MOLEX	0.56062 @ 3402
Verical	15-91-2200	0.65	1134	11340	Molex	0.65 @ 1134
TME	MX-15-91-2200	0.7	10	1134	MOLEX	0.7 @ 1134
Onlinecomponents.com	15-91-2200	0.78	1	1337	MOLEX / WALDOM	0.76 @ 1250
Allied Electronics	E5290997	0.86	1	1134	Molex Incorporated	0.86 @ 1134
Waldom	MOLEX 15-91-2200	0.93	1134	32553	MOLEX	0.93 @ 1134
jensentools.com	10152396	1.24	1	1134	Molex	1.24 @ 1134
Mouser	538-15-91-2200	1.27	1	3420	Molex	1.27 @ 1134
Digi-Key	614772	1.3332	1	15958	Molex	1.3332 @ 1134
Newark	25H8525	1.36	1	1134	MOLEX	1.36 @ 1134
swatee.com	15-91-2200	2.44	1	1254	Molex	2.44 @ 1134
Radwell	15-91-2200	2.75	1	1134	MOLEX	2.75 @ 1134
AmazonSC	B07QQDDDP4	36.77	1	1134	Molex / Waldom	36.77 @ 1134
Zoro	G2748213	1803.06	1134	1134	Molex	1803.06 @ 1134
