Molex / Waldom 15-91-3100

mpn15-91-3100
brandname: Molex Incorporated
manufacturername: Molex Incorporated

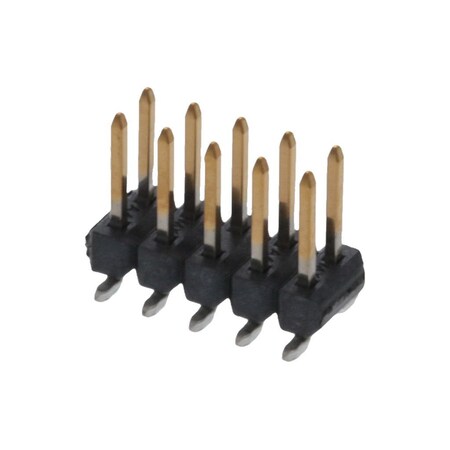

15-91-3100, Conn Unshrouded Header HDR 10 POS 2.54mm Solder ST SMD C-Grid Tube (50 Items)

Brand: Molex / Waldom
PartNumber: 15-91-3100
Model: 15-91-3100
Manufacturer: Molex / Waldom
Label: Molex / Waldom

Attributes

Key	Value
Alternate Part No.	538-15-91-3100
Brand	Molex
Category	Connectors, Interconnec.
Color	Black
Connector Type	Male Pin
Contact Finish	Gold Plated
Contact Finish - Mating	30.0?in (0.76?m)
Contact Finish - Post	Copper Alloy
Contact Finish Thicknes.	Tin
Contact Finish Thicknes.	Automotive, General Pur.
Contact Gender	Pin (Male)
Contact Length - Mating	-
Contact Length - Post	-
Contact Material	Liquid Crystal Polymer .
Contact Plating	Gold
Contact Plating Thickne.	0.813 ?m
Contact Shape	Gold
Contact Type	0.100" (2.54mm)
Current Rating	3 A
Current Rating (Amps)	-
Family Name	C-Grid
Fastening Type	0.240" (6.10mm)
Features	Breakaway, -
Flammability Rating	UL 94V-0
Hole Center to Center	2.54 mm
Housing Material	Thermoplastic
Ingress Protection	UL94 V-0
Insulation Color	-
Insulation Height	Square
Insulation Material	-
Latching Type	Unlatched
Manufacturer	Molex
Manufacturer Part No.	15-91-3100
Mated Stacking Heights	74.8?in (1.90?m)
Material	High Temperature Thermo.
Material Flammability R.	Black
Max. Temp.	260?C
Max. Voltage	250V
Mfr	Molex
Mounting Angle	Vertical
Mounting Type	Solder
Number of Circuits	10
Number of Contacts	10
Number of Positions	10, 2
Number of Positions Loa.	Board to Board or Cable
Number of Rows	2, 0.100" (2.54mm)
Operating Temperature	-
Overall Contact Length	0.090" (2.29mm)
Package	Active
Packaging	Tube
Part # Aliases	0015913100 71308-0210N
Part Status	Header, Breakaway
Pitch	2.54 mm
Pitch - Mating	10
Plating Material	Gold
Product Category	Headers & Wire Housings
Product Type	Headers
Row Spacing	2.54 mm
Row Spacing - Mating	All
Series	Tube, 71308, 71308 Seri.
Shrouding	Surface Mount
Standards	CSA Certified; UL E29179
Style	Unshrouded
Terminal Finish	Tin Plated
Terminal Type	Surface Mount
Termination	Push-Pull
Termination Style	SMD
Tradename	C-Grid
Type	Breakaway
Voltage Rating	250 V, -

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Brand	Preferred Tier
Onlinecomponents.com	15-91-3100	0.72	1	38028	MOLEX / WALDOM	0.72 @ 10
Waldom	MOLEX 15-91-3100	0.73	75	23526	MOLEX	0.73 @ 75
Avnet	0015913100	0.745	2268	4536	Molex	0.745 @ 2268
jensentools.com	10152405	0.97	1	10	Molex	0.97 @ 10
Digi-Key	WM2594-ND	1.219	1	10	Molex	1.219 @ 10
Freelance Electronics	15-91-3100	1.28494	1	360	MOLEX	1.28494 @ 10
Mouser	538-15-91-3100	1.29	1	5366	Molex	1.29 @ 10
Newark	55H2254	1.31	4536	10	MOLEX	1.31 @ 4536
us.rs-online.com	71453367	1.3139	1	10	Molex Incorporated	1.3139 @ 10
Arrow	15-91-3100	1.33	1	44	Molex	1.33 @ 10
swatee.com	15-91-3100	1.8	1	543	Molex	1.8 @ 10
Radwell	15-91-3100	2.25	1	10	MOLEX	2.25 @ 10
AmazonSC	B07QPC8MH9	79.7	1	10	Molex / Waldom	79.7 @ 10
Zoro	G405891880	96.75	1	10	Molex	96.75 @ 10
