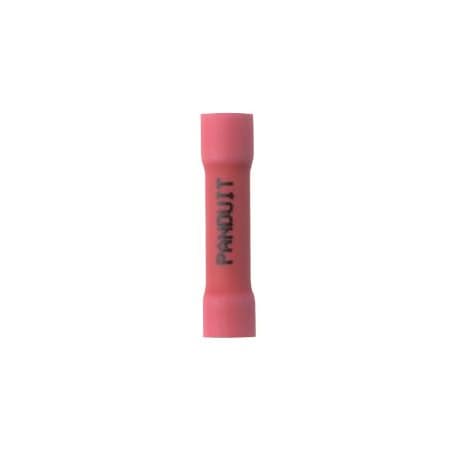

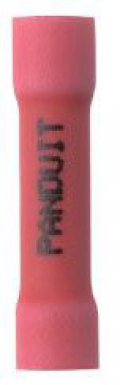

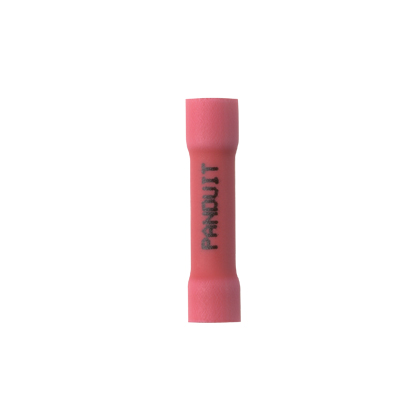

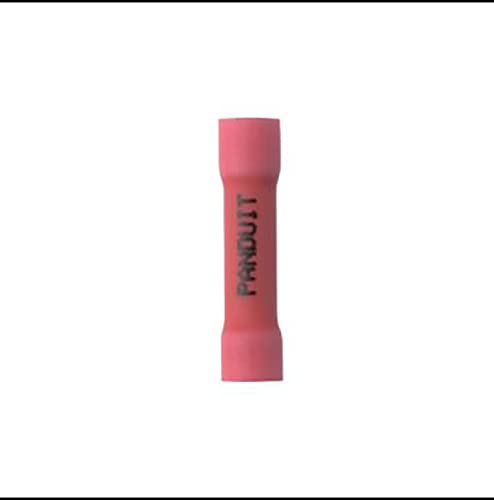

Stronghold Butt Splice, Vinyl Insulated, 22-18 AWG, Red.
- Brand: Panduit
- PartNumber: ESV18BX-Q
- Model: ESV18BX-Q
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Panduit
- Label: Panduit
Attributes
| Key | Value |
|---|
| Allowable Gauge Range | 22 - 18 |
| Barrel Length (In.) | 1.03 |
| Barrel Length (mm) | 26.2 |
| Barrel Type | Funnel, Funnel Entry |
| Base Material | Copper |
| Base Product Number | ESV18B |
| Brand | StrongHold? |
| Category | Connectors, Interconnec. |
| Color | Red |
| Color Code | Red |
| Color Family | Red |
| Copper Conductor Size (. | #22 - #18 |
| Country of Origin | TW - Taiwan |
| Country of Origin (subj. | Mexico |
| Country of Origin 2Digit | MX |
| CSA Temperature Rating . | 105 |
| CSA Temperature Rating . | 221 |
| EAN | 00613056366183 |
| Family Series | Panduit Miscellaneous |
| Features | Butted Seam |
| Finish | Tin-Plated |
| Finish/Coating | Tin-Plated |
| Gross Weight | 0.005 lbs |
| GTIN Carton | 50613056366188 |
| GTIN Package | 00613056366183 |
| Hazardous Material Flag | N |
| Insulation | Fully Insulated |
| Insulation Material | Vinyl |
| Item | Butt Spl,Vyl,Insul,22,1. |
| Item Number | ESV18BX-Q |
| Manufacturer | Panduit |
| Manufacturer Part Number | ESV18BX-Q |
| Material | Copper, Vinyl |
| Maximum Aluminum Conduc. | NA |
| Maximum Copper Conducto. | #18 |
| Maximum Copper Conducto. | #18 |
| Maximum Copper Conducto. | #18 |
| Maximum Metric Conducto. | 1 |
| Maximum Voltage (kV) | 0.6 |
| Maximum Voltage (V) | 600 |
| Mercury Content Indicat. | No |
| Mfr | Panduit Corp |
| Min Order Qty | 250 |
| Min. Order UOM | Piece |
| Minimum Aluminum Conduc. | NA |
| Minimum Copper Conducto. | #22 |
| Minimum Copper Conducto. | #22 |
| Minimum Copper Conducto. | #22 |
| Minimum Metric Conducto. | 0.5 |
| Net Weight | 0.005 lbs |
| Number of Wire Entries | 2 |
| Overall Length (In.) | 1.03 |
| Overall Length (mm) | 26.2 |
| Package | Bulk |
| Pallet Quantity | 0 |
| Pallet Volume | 0.000000 |
| Pallet Weight | 0.0000 |
| Product Segment | IEI |
| Product Status | Active |
| Product Type | Butt Splice |
| Rated Voltage | 600V |
| REACH Status | False |
| RoHS Compliant | Compliant |
| Series | StrongHold? |
| Standard Carton Volume . | 0.1031 |
| Standard Carton Weight . | 0.5000 |
| Standard Package Volume. | 0.0103 |
| Standard Package Weight. | 0.0500 |
| Standards Met | UL Listed, CSA Certified |
| Std Carton Height In | 4.4 |
| Std Carton Height MM | 111.76 |
| Std Carton Length In | 9.1 |
| Std Carton Length MM | 231.14 |
| Std Carton Width In | 4.35 |
| Std Carton Width MM | 110.49 |
| Std Ctn Qty | 250 |
| Std Package Height In | .75 |
| Std Package Height MM | 19.05 |
| Std Package Length In | 4.5 |
| Std Package Length MM | 114.3 |
| Std Package Width In | 3.05 |
| Std Package Width MM | 77.47 |
| Std. Pkg. Qty. | 25 |
| Std. Pkg. UOM | Piece |
| Sub Brand | StrongHold? |
| Terminal Type | Butt Splice, Inline, In. |
| Termination | Crimp |
| Type | Vinyl Insulated, Butt C. |
| UNSPSC | 39121409 |
| UOM EA PK | PK |
| UPC | 61305636618 |
| UPC Code | 61305636618 |
| Wire Gauge | 18-22 AWG |
| Wire Strip Length (In.) | 0.31 |
| Wire Strip Length (mm) | 7.9 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | mayerelectric.com | PANESV18BXQ | 0.2 | 1 | 500 | | PANDUIT | 0.5 | 0.2 @ 1 |
 | Galco | ESV18BX-Q-PNDT | 0.22 | 250 | 250 | | Panduit | 0.005 | 0.22 @ 250 |
 | NEP Electronics | ESV18BX-Q | 0.23 | 25 | 500 | | Panduit | | 0.23 @ 25 |
 | cbtcompany.com | ESV18BX-Q | 0.26 | 1 | 384 | | PANDUIT | | 0.26 @ 1 |
| us.rs-online.com | 71405799 | 0.28509 | 10 | 384 | | Panduit | | 0.28509 @ 10 |
| Digi-Key | 9491294 | 0.32 | 1 | 1509 | | Panduit Corp | | 0.32 @ 1 |
 | Platt.com | 1137283 | 0.42 | 1 | 6623 | | Panduit | | 0.42 @ 1 |
 | electricalparts.com | ESV18BX-Q | 4.5808 | 1 | 222 | | Panduit | | 4.5808 @ 1 |
 | Zoro | G0427723 | 5.21 | 2 | 384 | 26 | Panduit | 0.05 | 5.21 @ 2 |
 | jensentools.com | 10015606 | 5.84 | 1 | 9 | | Panduit | | 5.84 @ 1 |
 | alldataresource.com | 10044298 | 6.83 | 1 | In Stock | | Panduit | | 6.83 @ 1 |
| steinerelectric.com | 1043236 | 20.61 | 1 | 500 | | Panduit | | 20.61 @ 1 |
| Graybar | 26049313 | 28.8064 | 1 | In Stock | | Panduit | | 28.8064 @ 1 |
 | gordonelectricsupply.com | ESV18BX-Q | 52.73 | 1 | 500 | 12 | PANDUIT | | 52.73 @ 1 |
