Panduit LCAX250-38H-X

B00B5O5XMK

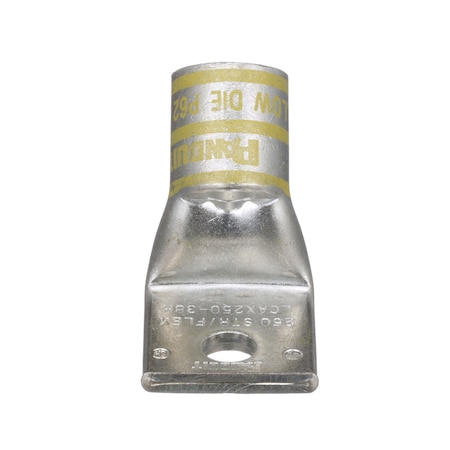

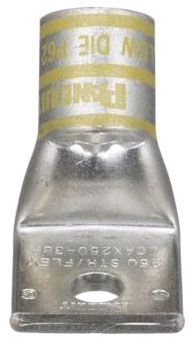

Panduit LCAX250-38H-X Copper Compression Lug, 1 Hole, 250 kcmil Flex, 3/8-Inch Stud, 45? Bent Angle

Panduit LCAX250-38H-X Copper Compression Lug, 1 Hole, 250 kcmil Flex, 3/8-Inch Stud, 45? Bent Anglezoom

Attributes

Key Value
Allowable Gauge Range250
Angle45?
ApprovalsCSA, UL
Barrel Length1.03
Base Product NumberLCAX2
CategoryConnectors, Interconnec.
ColorYellow
Color CodeYellow
Contact FinishElectro-Tin
Contact MaterialCopper
Country of Origin (subj.Mexico
Diameter - Barrel ID0.700" (17.78mm)
Diameter - Barrel OD0.880" (22.35mm)
Diameter - Ring ID0.410" (10.41mm)
Family SeriesPanduit Terminals, Pan-.
Features-
Gross Weight1.92 lbs
Hole Center to Center44628
InsulationNon-Insulated
Item NumberLCAX250-38H-X
Length - Overall-
ManufacturerPanduit
Manufacturer Part NumberLCAX250-38H-X
MaterialCopper
Material/CompositionCopper
Max Conductor Range250 kcmil
MfrPanduit Corp
Min Conductor Range250 kcmil
Mounting1-Hole
Mounting TypeFree Hanging (In-Line),.
Net Weight0 lbs
Number of Conductors1
Number of Holes1
Overall Length2.3 in
PackageBulk
Part StatusActive
Product SeriesPan-Lug Compression
RoHS CompliantYes
SeriesPan-Lug?
Stud Size3/8 in
Stud/Tab Size3/8 Stud
Tab Thickness0.170" (4.32mm)
Terminal StyleSingle Stud Hole
Terminal TypeRectangular Tongue
TerminationCrimp, Barrel
Tongue StyleStandard
Tongue Width - Wire Con.1.28
Tool TypeTin-Plated Copper Compr.
Width - Outer Edges1.280" (32.51mm)
Wire Gauge250MCM (kcmil)

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomcbtcompany.comLCAX250-38H-X12.551In StockPANDUIT12.55 @ 1
thumbzoomalldataresource.comLCAX250-38H-X16.421In StockPanduit16.42 @ 1
Digi-Key456488020.75500In StockPanduit Corp20.75 @ 1
Onlinecomponents.comLCAX250-38H-X22.991In StockPanduit22.99 @ 1
thumbzoomGalcoLCAX250-38H-X-PNDT27.8910In StockPanduit1.9227.89 @ 10
thumbzoomZoroG40485835829.11In Stock15Panduit29.1 @ 1
thumbzoomPlatt.com068625329.681In StockPanduit29.68 @ 1
Airline HydraulicsPANDUIT LCAX250-38H-X33.611In StockPanduit Corp33.61 @ 1
Newark08J1659220.321In StockPANDUIT220.32 @ 1
thumbzoomgordonelectricsupply.comLCAX250-38H-X293.01In Stock12PANDUIT293.0 @ 1
thumbzoomturtle.comPAN LCAX250-38H-X3286.671In StockPanduit3286.67 @ 1
