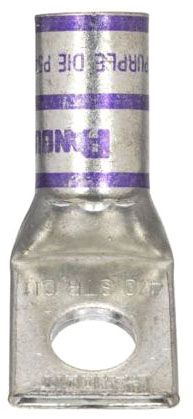

Panduit LCA4/0-12H-X

B009EBUB50

Panduit LCA4/0-12H-X

Panduit LCA4/0-12H-Xzoom

Attributes

Key Value
Allowable Gauge Range4/0
Angle45?
ApprovalsCSA, UL
Barrel Length1.19
Base Product NumberLCA4
CategoryConnectors, Interconnec.
ColorPurple
Color CodePurple
Contact FinishElectro-Tin
Contact MaterialCopper
Country of Origin (subj.Mexico
Diameter - Barrel ID0.570" (14.48mm)
Diameter - Barrel OD0.710" (18.03mm)
Diameter - Ring ID0.530" (13.46mm)
Family SeriesPanduit Terminals, Pan-.
Features-
Gross Weight1.3 lbs
Hole Center to Center44563
InsulationNon-Insulated
Item NumberLCA4/0-12H-X
Length - Overall-
ManufacturerPanduit
Manufacturer Part NumberLCA4/0-12H-X
MaterialCopper
Material/CompositionCopper
Max Conductor Range4/0 AWG
MfrPanduit Corp
Min Conductor Range4/0 AWG
Mounting1-Hole
Mounting TypeFree Hanging (In-Line),.
Net Weight0 lbs
Number of Conductors1
Number of Holes1
Overall Length2.28 in
PackageBulk
Product SeriesPan-Lug Compression
Product StatusActive
RoHS CompliantYes
SeriesPan-Lug?
StandardsC22.2 No. 65-13, 486A-4.
Stud Size1/2 in
Stud/Tab Size1/2 Stud
Tab Thickness0.140" (3.56mm)
Terminal StyleSingle Stud Hole
Terminal TypeRectangular Tongue
TerminationCrimp, Barrel
Tongue StyleStandard
Tongue Width - Wire Con.1.06
Tool TypeTin-Plated Copper Compr.
Width - Outer Edges1.060" (26.92mm)
Wire Gauge4/0 AWG

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomcbtcompany.comLCA4/0-12H-X9.481In StockPANDUIT9.48 @ 1
thumbzoomalldataresource.comLCA4/0-12H-X12.941In StockPanduit12.94 @ 1
Onlinecomponents.comLCA4/0-12H-X14.212In StockPanduit14.21 @ 2
RadwellLCA4012HX16.07100In StockPANDUIT16.07 @ 100
Digi-Key456439017.0816Panduit Corp17.08 @ 1
LCOMP0749835586419.671In StockPanduit19.67 @ 1
thumbzoomGalcoLCA4/0-12H-X-PNDT21.0620In StockPanduit1.321.06 @ 20
thumbzoomZoroG60485926121.971In Stock58Panduit21.97 @ 1
thumbzoomPlatt.com068242322.411In StockPanduit22.41 @ 1
Airline HydraulicsPANDUIT LCA4/0-12H-X25.381In StockPanduit Corp25.38 @ 1
thumbzoomNewark66H0850180.061In StockPANDUIT180.06 @ 1
thumbzoomCarlton Bates Company07498355864196.71In StockPANDUIT196.7 @ 1
thumbzoomgordonelectricsupply.comLCA4/0-12H-X443.01In Stock12PANDUIT443.0 @ 1
steinerelectric.com4813092471.831In StockPanduit2471.83 @ 1
thumbzoomturtle.comPAN LCA4/0-12H-X2481.521In StockPanduit2481.52 @ 1
