CAI - SQUARE D 8501KFR12V14

B07J2X7HNM

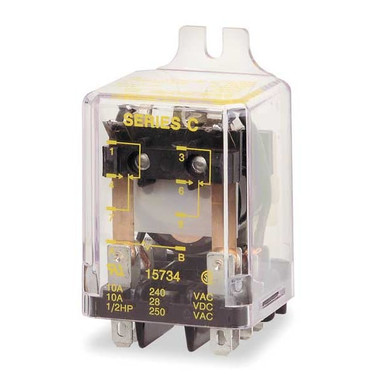

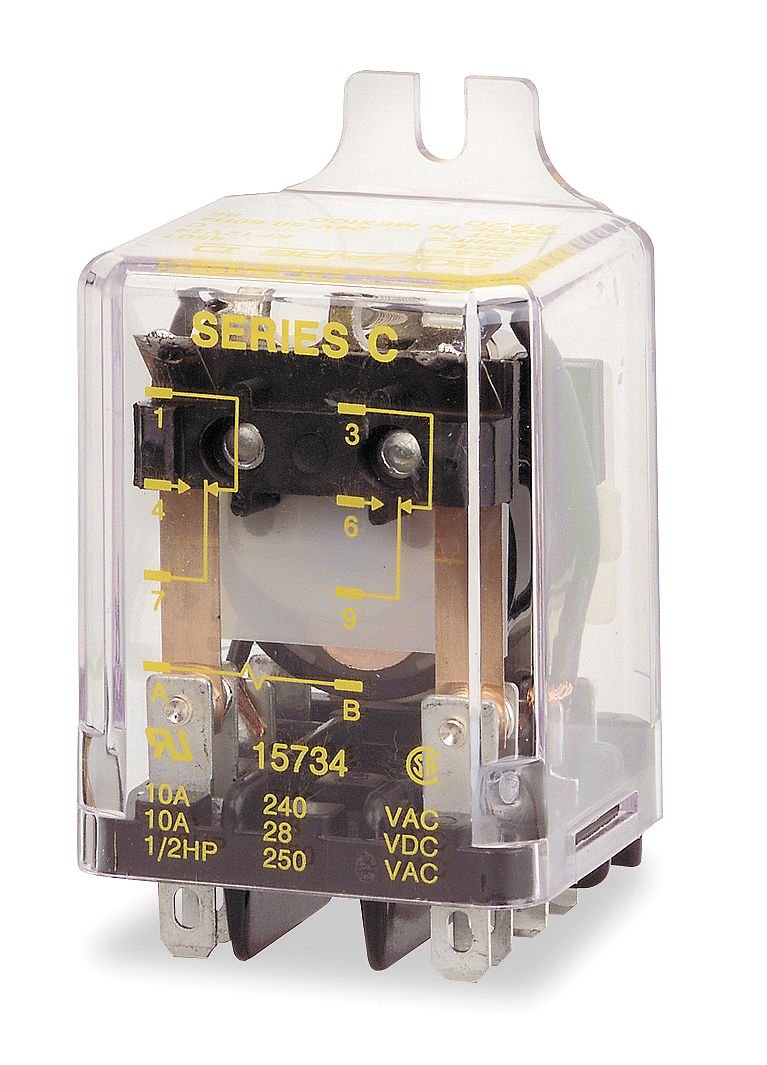

Square D 24VAC, 8-Pin Flange Mount Relay; Flange Location: Side, AC Contact Rating: 12A @ 240V

Square D 24VAC, 8-Pin Flange Mount Relay; Flange Location: Side, AC Contact Rating: 12A @ 240Vzoom

Attributes

Key Value
AC Contact Rating - Rel.12A @ 240V
Body Depth - Relay1.4 in
Body Height - Relay1.9 in
Body Width - Relay1.4 in
BrandSchneider Electric, Squ.
Catalog Number8501KFR12V14
CategoryRelays
Coil Insulation-
Coil TypeNon Latching
Coil Voltage24 V AC, 24VAC
Coil Volts24V AC
Contact FormDPDT, DPDT (2 Form C)
Contact Form - RelayDPDT
Contact MaterialSilver Cadmium Oxide, S.
Contact Rating12A @ 240VAC/28VDC
Contact Rating (Current)10 A
Control Voltage24 VAC
Country of OriginCN - China, China
Country of Origin (subj.China
Current Rating10 A
Current Stock97
DC Contact Rating - Rel.12A @ 28V
Depth1.4 in.
DescriptionRELAY 2CO QC PIN 10A@24.
Detailed DescriptionGeneral Purpose Relay D.
Digi-Key Part Number4008-8501KFR12V14-ND
ECCNEAR99
Electrical Connection0.187 in Push On Termin.
FeaturesStandard Relay, Spade T.
FunctionGeneral Purpose
Gross Weight0.185 lbs
Height2.75 in.
HP @ 120V1/3 hp
HP @ 240V1/2 hp
HP Rating1 hp 277 V AC || 0.33 h.
International ShippingNo
ItemFlange Mount Relay
Item - RelayFlange Mount Relay
Item TypeGeneral purpose;DPDT;Re.
Lead TimeExpected to ship in 1-2.
Made in USANo
ManufacturerSchneider Electric
Manufacturer Product Nu.8501KFR12V14
Manufacturer Standard L.1 Weeks
Materialsilver alloy (AgNi)
MfrSchneider Electric
MountingSide, Flange
Mounting - RelaySide Flange
Mounting TypeFlange Mount, Chassis M.
Mpn8501KFR12V14
Must Operate Voltage-
Must Release Voltage-
Number of Pins8 Pin
Number of Pins - Relay8
Operate Time20 ms
Operating Temperature-40?C ~ 55?C
Overall Height - Relay2.75 in
PackageBox
Pins8
Power Consumption - Rel.2.5 VA
Primary TypePower Relays
Product StatusActive
Relay TypeElectromechanical, Gene.
Release Time20 ms
Seal Rating-
SeriesSquare D 8501K, 8501K S.
SKUZO-G1748065
Special FeaturesNo indicator;Without te.
StandardsCE Marked, CSA Certifie.
Status IndicatorNo
SubCategoryElectrical
Switching Voltage300VAC, 30VDC - Max
TerminationQC Tabs
Termination StyleQuick Connect - 0.250" .
Time Cycle20 ms - pick-up || 20 m.
TypeGeneral Purpose
UNSPSC39122325
UPC785901317425
UPC Code785901317425
Voltage Rating240 VAC
Width1.4 mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
us.rs-online.com7131539027.931In StockSquare D27.93 @ 1
thumbzoomGalco8501KFR12V14-SQD29.861In StockSquare D0.18529.86 @ 1
thumbzoomZoroG174806532.26154Schneider Electric0.232.26 @ 1
hvacdiscountstore.comSCH--8501KFR12V1432.5111SCHNEIDER ELECTRIC (SQUARE D)32.51 @ 1
thumbzoomblackhawksupply.com8501KFR12V1437.01In StockSquare D37.0 @ 1
thumbzoomcrescentelectric.com116419037.571In StockSquare D by Schneider Electric37.57 @ 1
Graybar2566871639.481In StockSquare D (Schneider Electric)39.48 @ 1
thumbzoomsimsupply.comZO-G174806541.3197Schneider Electric41.3 @ 1
thumbzoomVoomi Supply8501KFR12V1442.341In StockSCHNEIDER ELECTRIC42.34 @ 1
thumbzoomDigi-Key1717084044.621In StockSchneider Electric44.62 @ 1
thumbzoomAmazonSCB076CD4GBW45.771In StockSquare D45.77 @ 1
thumbzoommidwestapplianceparts.com8501KFR12V14-SQ-P51.11In StockSquared51.1 @ 1
thumbzoomsustainablesupply.comC117816156.851In StockSquare D0.256.85 @ 1
thumbzoomRaptor SuppliesAF9FTB72.7841791In StockSQUARE D72.784179 @ 1
