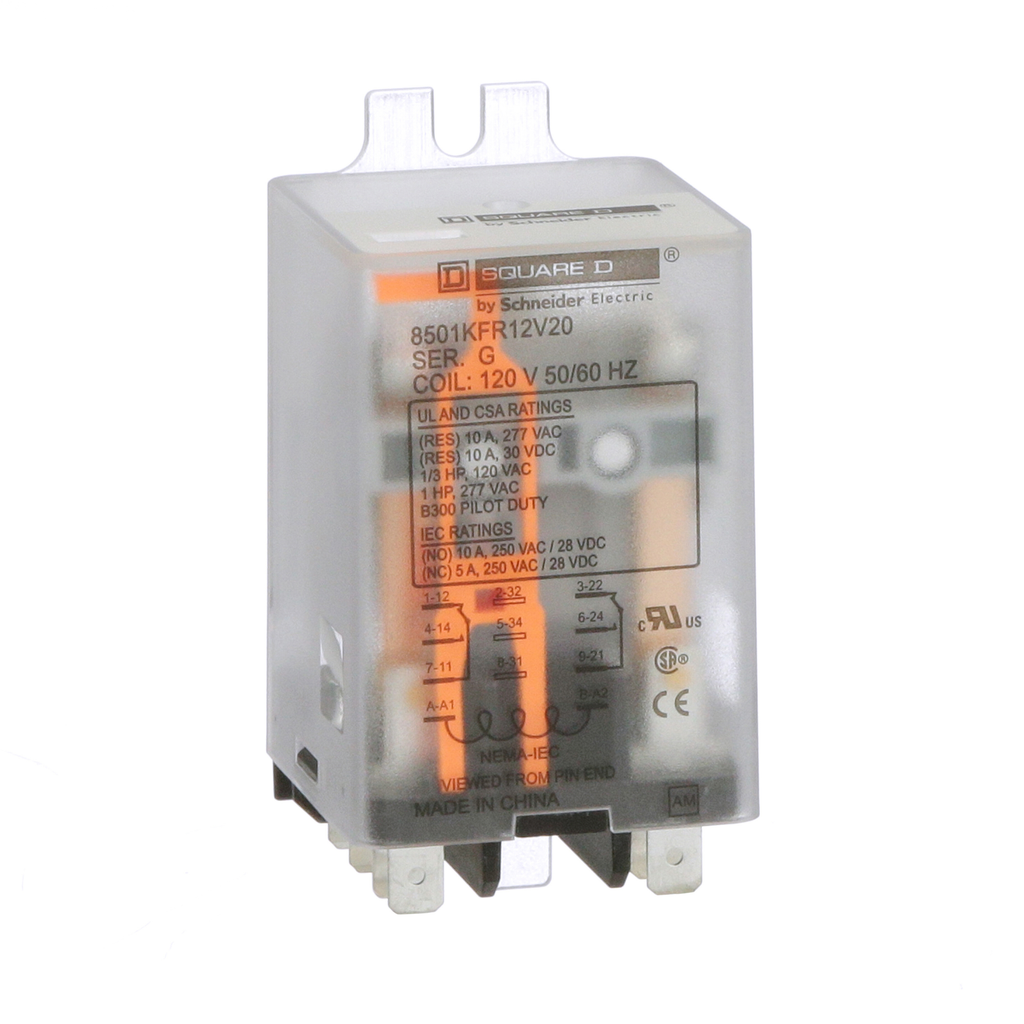

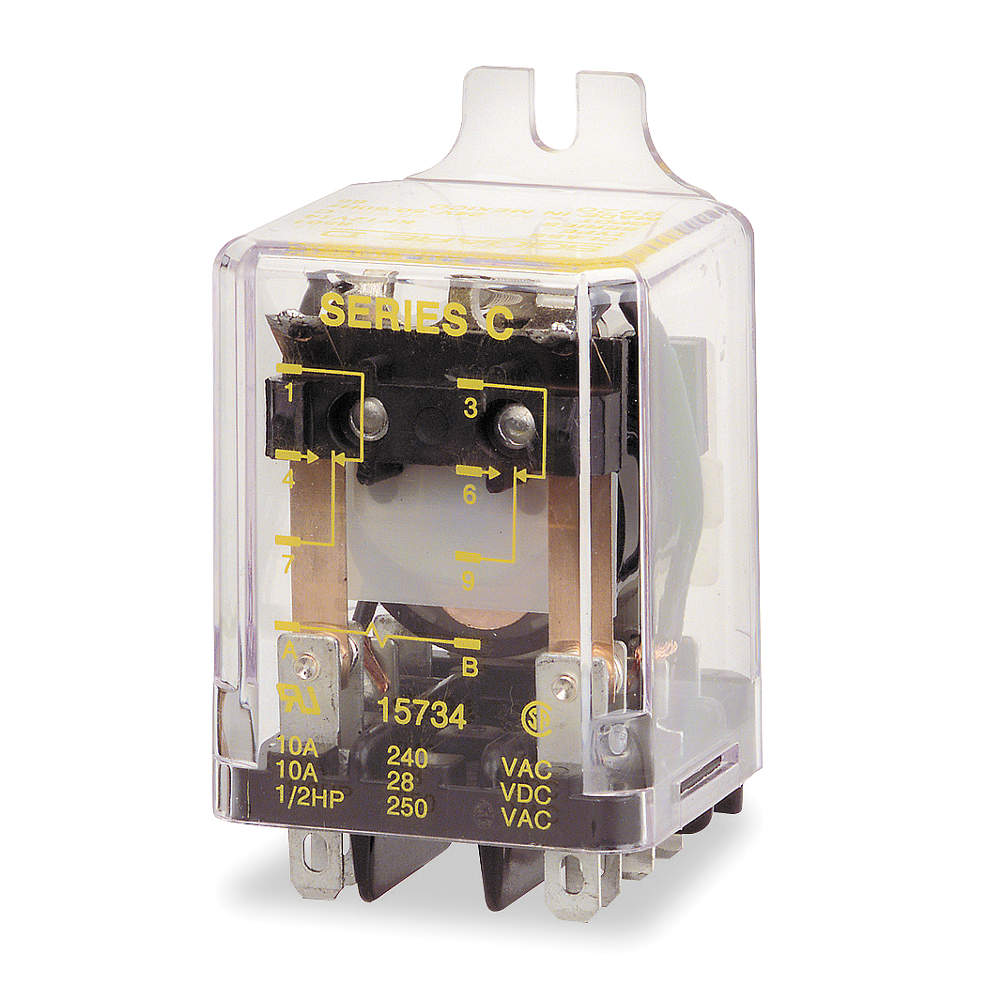

Square D 120VAC, 8-Pin Flange Mount Relay; Flange Location: Side, AC Contact Rating: 12A @ 240V

Square D 120VAC, 8-Pin Flange Mount Relay; Flange Location: Side, AC Contact Rating: 12A @ 240Vzoom

Attributes

Key Value
[Uc] Control Circuit Vo.120 V AC
AC Contact Rating - Rel.12A @ 240V
Ambient Air Temperature.-40-131 ?F
ApprovalsCE, CSA, UL
Body Depth - Relay1.4 in
Body Height - Relay1.9 in
Body Width - Relay1.4 in
BrandSchneider Electric, Squ.
California Proposition .Nickel compounds, which.
Catalog Number8501KFR12V20
CategoryRelays
China Rohs RegulationX
Coil Insulation-
Coil TypeNon Latching
Coil Voltage120VAC, 120 VAC ; 110/1.
Coil Volts120V AC
ConditionNew
Contact Current Rating10 A
Contact FormDPDT, DPDT (2 Form C)
Contact Form - RelayDPDT
Contact MaterialSilver Cadmium Oxide, S.
Contact Rating12A @ 240VAC/28VDC
Contact Rating (Current)10 A
Contact Voltage Rating240 VAC
ContactsDPDT
Contacts Materialsilver alloy (AgNi)
Control Typewithout test button
Control Voltage120
Country of OriginCN - China, China
Country of Origin (subj.China
Current Rating10 A
Current Stock47
DC Contact Rating - Rel.12A @ 28V
Depth1.4 in., 1.4 in
DescriptionPLUG IN RELAY, TYPE KF,.
Detailed DescriptionGeneral Purpose Relay D.
Digi-Key Part Number4008-8501KFR12V20-ND
DiodeNo
ECCNEAR99
Electrical Connection0.187 in Push On Termin.
EnclosurePlastic
Environmental DisclosureENVPEP1406038EN
Eu Rohs DirectivePro-active compliance (.
Family SeriesSquare D Relays
FeaturesStandard Relay, Spade T.
Functiongeneral purpose
Gross Weight0 lbs
Height2.75 in., 2.75 in
HP @ 120V1/3 hp
HP @ 240V1/2 hp
HP Rating1 hp 277 V AC || 0.33 h.
International ShippingNo
ItemFlange Mount Relay
Item - RelayFlange Mount Relay
Item Number8501KFR12V20
Item TypeGeneral purpose;DPDT;Re.
Lead TimeExpected to ship in 1-2.
Local Signallingno indicator
Made in USANo
ManufacturerSquare D, Schneider Ele.
Manufacturer Part Number8501KFR12V20
Manufacturer Product Nu.8501KFR12V20
Manufacturer Standard L.3 Weeks
Materialsilver alloy (AgNi)
Max Current10 A
Maximum Switching Volta.300 V AC || 30 V DC
Mercury FreeYes
MfrSchneider Electric
MountingSide Flange, Side, flan.
Mounting - RelaySide Flange
Mounting Supportflange
Mounting TypePanel Mount Flanged Cov.
Mpn8501KFR12V20
Must Operate Voltage-
Must Release Voltage-
Net Weight0 lbs
Nominal Coil Voltage277 VAC
Number of Pins8
Number of Pins - Relay8
Operate Time20 ms
Operating Temperature-40?C ~ 55?C
Operating Time20 ms - pick-up || 20 m.
Overall Height - Relay2.75 in
PackageBox
Pins8
Power Consumption - Rel.2.5 VA
Primary TypePower Relays
Product CertificationsUL Recognized || CSA ||.
Product Or Component Ty.relay
Product StatusActive
Published Coil Voltage277 VAC
Push-to-TestNo
Range Of Product8501K
Rated Breaking Capacity3 A 120 V AC inductive .
Rated Power In Hp1 hp 277 V AC || 0.33 h.
Reach Free Of SvhcYes
Reach RegulationFree of Substances of V.
Relay TypeElectromechanical, gene.
Release Time20 ms
RoHSYes
Rohs Exemption Informat.Yes
Safety GuidedNo
Seal Rating-
SeriesSquare D, 8501K Series
Shape Of Pinspade
SKUZO-G2129531
Special FeaturesNo indicator;Without te.
StandardsCE Marked, CSA Certifie.
Status IndicatorNo
SubCategoryElectrical
Sustainable Offer StatusGreen Premium product
Switch FunctionDPDT
Switching Voltage300VAC, 30VDC - Max
TerminationQC Tabs, Plug-In
Termination StyleQuick Connect - Multipl.
Time Cycle20 ms - pick-up || 20 m.
Toxic Heavy Metal FreeYes
Typegeneral purpose
UNSPSC39122325
UPC785901342519
UPC Code785901342519
Voltage Rating240 V
Weight2.000000
Width1.4 mm, 1.4 in
