Schneider Electric 8903LA1000V02

mpn8903LA1000V02
brandname: SquareD
manufacturername: SquareD

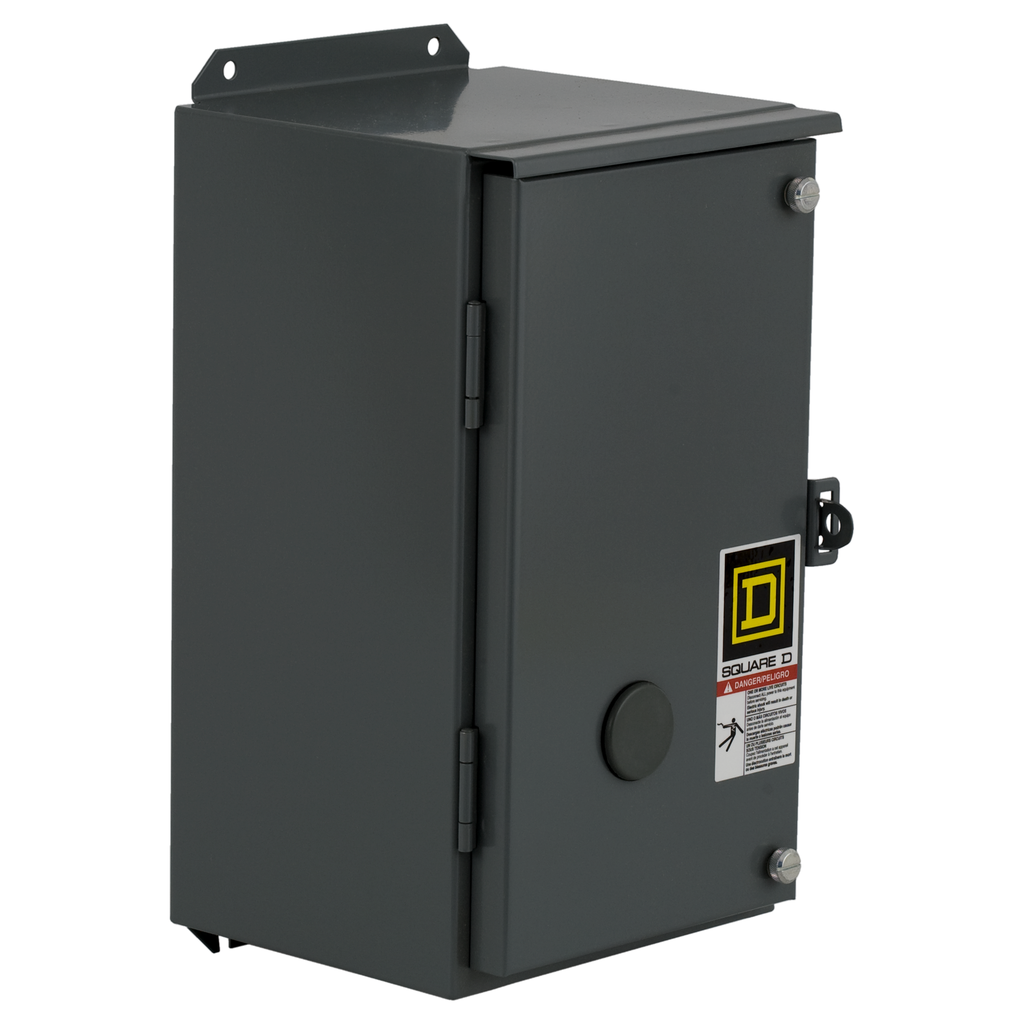

SCHNEIDER ELECTRIC 8903LA1000V02 Lighting Contactor 600-Vac 30-Amp L Electrical Box

SCHNEIDER ELECTRIC 8903LA1000V02 Lighting Contactor 600-Vac 30-Amp L Electrical Box

zoom

Brand: Schneider Electric
PartNumber: 8903LA1000V02
Model: 8903LA1000V02
PackageQuantity: 1
Binding: Tools & Home Improvement
Manufacturer: SCHNEIDER ELECTRIC
Label: SCHNEIDER ELECTRIC

Attributes

Key	Value
[Uc] Control Circuit Vo.	110 V AC 50 Hz \|\| 120 V.
Additional Included Dev.	none
Application	ELECTRICALLY HELD
Brand	Square D by Schneider E.
Catalog Number	8903LA1000V02
China Rohs Regulation	Pro-active China RoHS d.
Coil Power Rating	35-35 VA 60 HZ-35-35 VA.
Coil Voltage	110 V AC 50 Hz;120 V AC.
Connection	screw-clamp terminals
Contact Configuration	10 NO
Contact Rating	30A
Control Circuit	separate control circuit
Control Type	no control units
Country of Origin	Mexico
Depth	216 mm
Electrical Connection	screw-clamp terminals
Environmental Disclosure	ENVPEP1407018EN
Eu Rohs Directive	Compliant
Halogen Content Perform.	Halogen free plastic pa.
Height	400 mm
Hold-In Power Consumpti.	35-35 VA 60 Hz \|\| 35-35.
Indicator	no indicator
Inrush Power In Va	180-180 VA 60 Hz \|\| 170.
Item Type	Electrically Held Light.
Line Rated Current	20-20 A tungsten \|\| 30-.
Local Signalling	no indicator
Made in USA	No
Manufacturer	Schneider Electric
Mercury Free	Yes
Nema Degree Of Protecti.	NEMA 12 painted sheet s.
Number of Poles	1
Poles Description	10P 10 NO
Product Certifications	UL Listed \|\| CSA
Product Or Component Ty.	Electrically Held Light.
Pvc Free	Yes
Range Of Product	8903L
Reach Free Of Svhc	Yes
Reach Regulation	Free of Substances of V.
Rohs Exemption Informat.	Yes
Size	8.50
Special Features	separate control circuit
Standard	UL LISTED - CSA CERTIFI.
Sub Brand	8903L
Sustainable Offer Status	Green Premium product
Toxic Heavy Metal Free	Yes
UPC	785901022022
Warranty	18 months
Warranty Description	Contractual Warranty: 1.
Width	206 mm

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	mayerelectric.com	SQD8903LA1000V02	1533.16	1	In Stock		SQUARE D		1533.16 @ 1
	gordonelectricsupply.com	8903LA1000V02	1560.0	1	In Stock	10	SQUARE D		1560.0 @ 1
	crescentelectric.com	486714	1657.88	1	In Stock		Square D by Schneider Electric		1657.88 @ 1
	simplybreakers.com	8903LA1000V02	3032.99	1	In Stock		Schneider Electric		3032.99 @ 1
