- mpn2BK3078
- brandname: TB Woods
- manufacturername: TB Woods

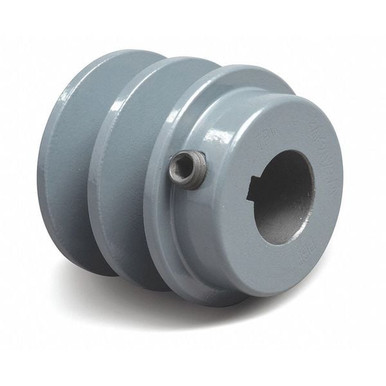

TB Woods 2BK3078 FHP Bored-to-size V-Belt Sheave, B Belt Section, 2 Grooves, 7/8" Bore, Cast Iron, 3.15" OD, 7940 max rpm
- Brand: TB Woods
- PartNumber: 2BK3078
- Size: 7940 max rpm
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Tb Wood'S
- Label: Tb Wood'S
Attributes
| Key | Value |
|---|
| 3V Pitch Diameter | Not Applicable |
| 3VX Pitch Diameter | Not Applicable |
| 4L Pitch Diameter | 2.78 in |
| 4L, A, or AX Belt Pitch. | 2.4 in |
| 5L Pitch Diameter | 3.213 in |
| 5L, B, or BX Belt Pitch. | 2.8 in |
| 5V Pitch Diameter | Not Applicable |
| 5VX Pitch Diameter | Not Applicable |
| A Pitch Diameter | 2.78 in |
| AX Pitch Diameter | 2.78 in |
| B Pitch Diameter | 3.213 in |
| Belt section | B-5L-A-4L |
| Bore Diameter | 7/8 in |
| Bore Type | Fixed |
| Bore type | Finished with keyway |
| Bore-to-size bore diame. | 0.88 |
| Bore-to-size keyseat | 3/16 in x 3/32 in |
| Brand | Tb Woods |
| Bushing Required | None |
| BX Pitch Diameter | 3.213 in |
| C Pitch Diameter | Not Applicable |
| Color | Grey |
| Component WR2 (lbs ft2) | 0.02 |
| Construction | Solid |
| Current Stock | 22 |
| CX Pitch Diameter | Not Applicable |
| Datum diameter | 2.8 |
| Dimension | 0.47 |
| Face Width | 1.75 in |
| Face width | 1.75 |
| Face width (in) | 1.75 |
| Fits Shaft Dia. | 7/8 in |
| For Belt Section (broad. | 4L, A, or AX, 5L, B, or. |
| For Belt Trade Size | 4L, 5L, A, AX, B, BX |
| For V-Belt Section | 4L, 5L, A, AX, B, BX |
| For V-Belt Type | Banded, Classical, Cogg. |
| Groove cross section se. | B |
| Hub location | -0.47 |
| Hub location (in) | -0.47 |
| Hub Projection | 0.47 in |
| I.D. | 2.65 |
| Industry Number | 2BK3078 |
| Inertia WR? | 3 |
| Inside diameter (in) | 2.65 |
| International Shipping | No |
| Item | Standard V-Belt Pulley |
| Keyway Depth | 3/32 in |
| Keyway Size | 0.187" x 0.093" |
| Keyway Size Type | 0.187 in x 0.093 in |
| Keyway Width | 3/16 in |
| Length through Bore | 1 31/32 in |
| Material | Cast Iron |
| Material type | CI |
| Max RPM | 7940 |
| Maximum Bore Diameter | 7/8 in |
| Mpn | 2BK3078 |
| Number of Grooves | 2 |
| Number of grooves | 2 |
| Number of Steps | 2 |
| O.D. | 3.15 |
| Outside Diameter | 3.15 in |
| Outside diameter (in) | 3.15 |
| Overall Width | 2 1/4 in |
| Pitch diameter | 3.21 |
| Pitch Diameter | 3.21 in |
| Pitch Diameter for V-Be. | 4L: 2.78 in / 5L: 3.213. |
| Pulley Bore Dia. | 7/8 in |
| Pulley Bore Type | Fixed Bore |
| Pulley Construction | Plain |
| Pulley Material | Cast Iron |
| Pulley Outside Dia. | 3.15 in |
| Pulley Type | Standard V-Belt Pulley |
| RPM upper limit | 7940 |
| Set Screw Included | Yes |
| SKU | ZO-G2553546 |
| SubCategory | Power Transmission |
| UPC | 698672150446 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G2553546 | 37.15 | 1 | 49 | | Tb Woods | 2.35 | 37.15 @ 1 |
 | sustainablesupply.com | C1694542 | 37.92 | 1 | In Stock | | TB Wood's | 2.35 | 37.92 @ 1 |
 | simsupply.com | ZO-G2553546 | 52.11 | 1 | 22 | | Tb Woods | | 52.11 @ 1 |
 | National Supply Network | 82222548 | 52.24 | 1 | In Stock | | TB Wood's | | 52.24 @ 1 |
 | bscsource.com | 2BK3078 | 75.09 | 1 | In Stock | | TB Wood's | | 75.09 @ 1 |
 | MRO Supply | 346429 | 81.04 | 1 | In Stock | | TB Woods | | 81.04 @ 1 |
| us.rs-online.com | 73931857 | 89.92 | 1 | In Stock | | TB Wood's (Altra) | | 89.92 @ 1 |
 | Raptor Supplies | AE6PNM | 97.3100115 | 1 | In Stock | | TB WOOD'S | | 97.3100115 @ 1 |
