TE CONNECTIVITY / POTTER & BRUMFIELD KUHP-5A51-120

B00HIV095K

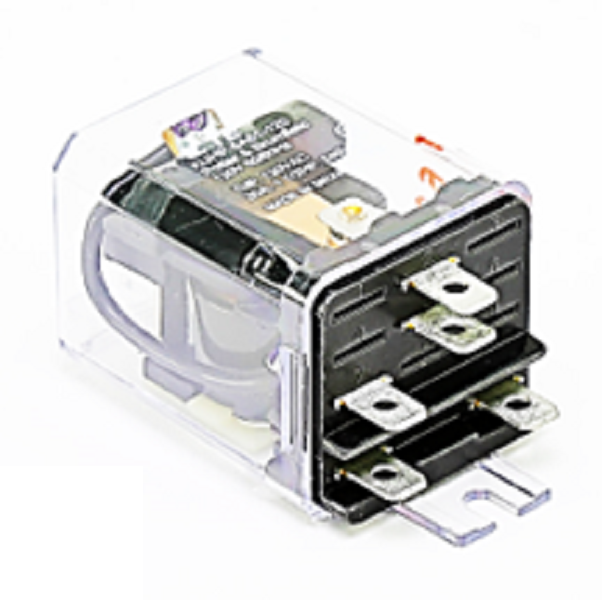

TE CONNECTIVITY/POTTER & BRUMFIELD KUHP-5A51-120 Power Relay, SPDT, 120VAC, 30A, Bracket

TE CONNECTIVITY/POTTER & BRUMFIELD KUHP-5A51-120 Power Relay, SPDT, 120VAC, 30A, Bracketzoom

Attributes

Key Value
Alternate Mfr Part Numb.8-1393114-4
Base Product NumberKUHP-5
Body Depth - Relay1.97 in
Body Height - Relay1.405 in
Body Width - Relay1.531 in
CategoryRelays
Coil Current24 mA
Coil InsulationClass B
Coil Resistance1.7 kOhms, 1700 ?
Coil TypeNon Latching, Monostabl.
Coil Voltage120VAC, 120 VAC ; 110/1.
Coil Volts120V AC
Connector TypeConnector Assembly .
Contact Current Rating3 A .
Contact FormSPDT (1 Form C), SPDT
Contact Form - Relay1 Form C (CO)
Contact Limiting Breaki.30A
Contact Limiting Contin.30A
Contact Limiting Making.30A
Contact Limiting Short-.30A
Contact MaterialSilver Cadmium Oxide (A.
Contact Rating30A
Contact Rating (Current)30 A
Contact ShapeSquare .
Contact TypePin .
Contact Voltage Rating240V AC, 300 VAC
Control Voltage120
Current Rating30 A
DescriptionRELAY GEN PURPOSE SPDT .
Detailed DescriptionGeneral Purpose Relay S.
Dielectric Rating3750 V (RMS) Contacts a.
Dielectric Voltage3750 Vrms Coil and Cont.
Digi-Key Part NumberPB1458-ND
Features-, UL Coil Insulation C.
FunctionGeneral Purpose
GasketWithout .
Header TypeShrouded .
Housing Style4-Sided .
Item - RelayKUHP Series Panel Relay
ManufacturerTE Connectivity Potter .
Manufacturer Product Nu.KUHP-5A51-120
Manufacturer Standard L.19 Weeks
Mating Connector Lock T.Detent Windows .
MfrTE Connectivity Potter .
Mounting TypePanel Mount, Bracket, P.
Must Operate Voltage102 VAC
Must Release Voltage-
Number of Pins9 Pin
Number of Poles1
Number of Positions20 .
Number of Rows2 .
Operate Time20 ms
Operating Temp. Range0 to 50?C
Operating Temperature-45?C ~ 45?C
PackageBulk
Package TypeTray .
Power Consumption - Rel.3VA
Primary TypePower Relays
Product HeaderKUHP Series Enclosed AC.
Product StatusActive
Product TypeConnector .
ProfileStandard .
Protection CategoryRTI
Relay TypeElectromechanical, Gene.
Release Time20 ms
Seal Rating-
SeriesKUHP Series, KUHP
StandardsUL ; CSA ; VDE
Strain ReliefWithout .
Switching Current300mA @ 12V
Switching Voltage240VAC - Max
Terminal TypeQuick Connect, Solder
TerminationQC Tabs
Termination StyleQuick Connect - 0.250" .
Voltage Rating240 V

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomComponent Electronics711-120V-6523.081In StockTyco Electronics23.08 @ 1
Onlinecomponents.comKUHP-5A51-12028.261705TE Connectivity / P&B Brand28.26 @ 1
Allied Electronics7121083330.27124TE Connectivity30.27 @ 1
thumbzoomNewark17M023537.861100POTTER&BRUMFIELD - TE CONNECTIVITY37.86 @ 1
AmazonTPB00DDFBL1G43.681In Stock1T-E Connectivity43.68 @ 1
us.rs-online.com7019919948.391445TE Connectivity48.39 @ 1
AmazonUNKB00KA325AK49.511In StockTE Connectivity / P&B Brand49.51 @ 1
thumbzoomDigi-Key101553259.2561130TE Connectivity Potter & Brumfield Relays59.256 @ 1
thumbzoommidwestapplianceparts.comKUHP-5A51-120-TV-P63.761In StockTE Connectivity63.76 @ 1
thumbzoomgsistore.comKUHP-5A51-12065.6111TE Connectivity65.61 @ 1
thumbzoomZoroG20586663798.781In StockPotter-Brumfield98.78 @ 1
