PCA9515BDGKR-TEXAS INSTRUMENTS

mpnPCA9515BDGKR
brandname: Texas Instruments
manufacturername: Texas Instruments

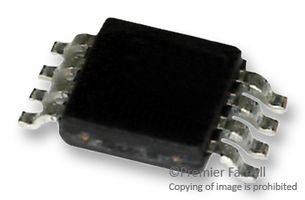

TEXAS INSTRUMENTS PCA9515BDGKR BUS BUFFER, I2C/SMBUS, 3.6V, VSSOP-8 (1 piece)

TEXAS INSTRUMENTS PCA9515BDGKR BUS BUFFER, I2C/SMBUS, 3.6V, VSSOP-8 (1 piece)

zoom

PartNumber: PCA9515BDGKR-TEXAS INSTRUMENTS
Model: PCA9515BDGKR-TEXAS INSTRUMENTS
PackageQuantity: 1
Binding: Electronics
Manufacturer: TEXAS INSTRUMENTS
Label: TEXAS INSTRUMENTS

Attributes

Key	Value
Alternate Part No.	595-PCA9515BDGKR
Applications	I?C
Base Product Number	PCA9515
Brand	Texas Instruments
Capacitance - Input	7 pF
Category	Integrated Circuits (IC.
Current - Supply	500?A
Data Rate (Max)	400kHz
Delay Time	-
Input	2-Wire Bus
Input Capacitance	7 pF
Logic Type	I2C Bus, SMBus
Manufacturer	Texas Instruments
Manufacturer Part No.	PCA9515BDGKR
Maximum Clock Frequency	400 kHz
Mfr	Texas Instruments
Mounting Style	SMD/SMT
Mounting Type	Surface Mount
Number of Channels	1
Operating Current	1 mA
Operating Supply Voltage	2.3 V to 3.6 V
Operating Temperature	-40?C ~ 85?C
Operating Temperature R.	- 40 C to + 85 C
Output	2-Wire Bus
Package	Tape & Reel (TR)
Package / Case	8-TSSOP, 8-MSOP (0.118".
Package/Case	VSSOP-8
Packaging	Reel
Part Status	Active
Product Category	Interface - Signal Buff.
Product Status	Active
Product Type	Repeaters
Propagation Delay Time	45 ns
Series	-, PCA9515B
Signal Conditioning	-
Supplier Device Package	8-VSSOP
Tx/Rx Type	I2C Bus, SMBus
Type	Buffer, ReDriver
Voltage - Supply	2.3V ~ 3.6V

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Hotenda	H2445779	0.74115	1	5000		Texas Instruments		0.74115 @ 1
	Newark	52AH4120	1.91	1	52		TEXAS INSTRUMENTS		1.91 @ 1
	Radwell	PCA9515BDGKR	2.19	1	52		TEXAS INSTRUMENTS SEMI		2.19 @ 1
	swatee.com	PCA9515BDGKR	3.57	1	6495		Texas Instruments		3.57 @ 1
	Digi-Key	3077989	14.424	1	52		Texas Instruments		14.424 @ 1
