- mpn511H45A0
- brandname: THOMSON
- manufacturername: THOMSON

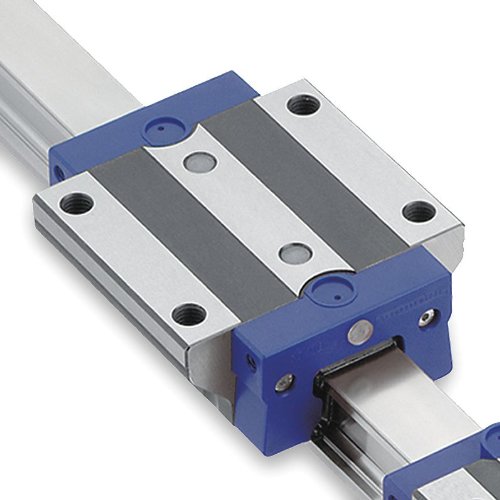

Bearing Ball Carriage,Height 50.80 mm
- Brand: Thomson
- PartNumber: 511H45A0
- Model: 511H45A0
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: THOMSON
- Label: THOMSON
Attributes
| Key | Value |
|---|
| Agency Compliance | DIN 645-1 |
| Bearing Type | Ball Bearing |
| Brand | Thomson Linear |
| Carriage Height | 50.8 mm |
| Carriage Hole Size (mm) | M12 |
| Carriage Length | 5.709, 137.1 mm, 145.0 |
| Carriage Material | Chrome Vanadium Steel B. |
| Carriage Mounting Hole . | M12 |
| Carriage Style | Profile Guide Carriage |
| Carriage Type | Ball |
| Carriage Width | 120.0, 120 mm, 4.724 |
| Dimension B | 120 mm |
| Dimension B1 | 45 mm |
| Dimension B2 | 37.5 mm |
| Dimension F | 10.5 mm |
| Dimension F1 | 14 mm |
| Dimension F2 | 20 mm |
| Dimension F3 | 18 mm |
| Dimension G | 15 mm |
| Dimension G1 | 15 mm |
| Dimension G2 | 22 mm |
| Dimension J | 50.8 mm |
| Dimension J1 | 37 mm |
| Dimension L | 145 mm |
| Dimension L1 | 80 mm |
| Dimension L2 | 60 mm |
| Dimension L3 | 107 mm |
| Dimension M1 | 8 mm |
| Dimension N | 100 mm |
| Dimension O | 10 mm |
| Dimension P | 17.5 mm |
| Dimension S1 | M12 |
| Dimension S2 | M12 |
| Dimension S3 | M12 |
| Dimension X | 105 mm |
| Dynamic Load Capacity | 77977 |
| Dynamic Load Capacity (. | 61,900 |
| Dynamic Load Capacity (. | 61,900 |
| Features | No Preload |
| For Rail Width | 45 mm |
| For Rail Width (mm) | 45 |
| For Use With | 500 Series Ball Rail |
| Full Material | Chrome-Coated |
| Item | Linear Bearing Ball Car. |
| Max. Speed (In/Sec) | 5 |
| Overall Height | 2.362, 60.0, 60 mm |
| Screw Size | M12 |
| Seals | Nitrile Rubber |
| Slide Height (mm) | 60 |
| Static Load Capacity | 134800 |
| Static Load Capacity (L. | 134,800 |
| Static Load Capacity (N) | 134,800 |
| Temp. Range (C) | -40 Degrees to 80 Degr. |
| Type | 500 Series, Standard |
| Weight | 3.300 kg (7.275lbs) |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | MRO Supply | 1822031 | 302.62 | 1 | In Stock | | Thomson Linear | | 302.62 @ 1 |
| Grainger | 2HVV4 | 330.0 | 1 | 1 | 0 | THOMSON | | 330.0 @ 1 |
| reidsupply.com | TLM-3089 | 332.89 | 1 | In Stock | | Thomson Linear | | 332.89 @ 1 |
 | Zoro | G1203614 | 332.99 | 1 | In Stock | | Thomson | 7.3 | 332.99 @ 1 |
| AmazonSC | B002E7FNF4 | 335.13 | 1 | In Stock | | Thomson | | 335.13 @ 1 |
 | sustainablesupply.com | C3048914 | 374.49 | 1 | In Stock | | Thomson | 7.3 | 374.49 @ 1 |
 | cbtcompany.com | 511H45A0 | 389.14 | 1 | In Stock | | Thomson Industries | | 389.14 @ 1 |
 | National Supply Network | 35523547 | 510.76 | 1 | In Stock | | Thomson Industries | | 510.76 @ 1 |
| motionindustries.com | 02694780 | 515.63 | 1 | In Stock | | Thomson | | 515.63 @ 1 |
 | primebuy.com | 511H45A0 | 572.0 | 1 | In Stock | | Thomson Industries | 3.3 | 572.0 @ 1 |
 | bscsource.com | 511H45A0 | 591.79 | 1 | In Stock | | Thomson Industries | | 591.79 @ 1 |
