Thomson 511H45E0

B007IARCSS

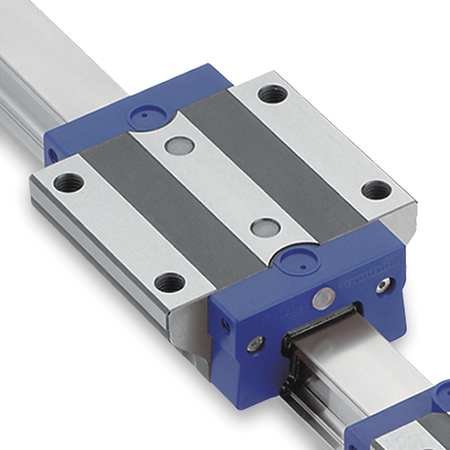

Thomson - 511H45E0 - Linear Bearing Ball Carriage: 500 Series, Std, 60.8 mm Carriage Ht, 86 mm Carriage Wd, 1 1

Thomson - 511H45E0 - Linear Bearing Ball Carriage: 500 Series, Std, 60.8 mm Carriage Ht, 86 mm Carriage Wd, 1 1zoom

Attributes

Key Value
accuracy class:High Grade
Agency ComplianceDIN 645-1
bearing material:Chrome Steel
block type:Narrow High Block
Carriage Height60.8 mm
Carriage Hole Size (mm)M10
Carriage Length137.1 mm
Carriage MaterialChrome Vanadium Steel B.
Carriage Mounting Hole .M10
Carriage TypeBall
Carriage Width86 mm
Dimension B86 mm
Dimension B145 mm
Dimension B220.5 mm
Dimension F114 mm
Dimension F220 mm
Dimension G18 mm
Dimension G222 mm
Dimension J60.8 mm
Dimension J137 mm
Dimension L145 mm
Dimension L160 mm
Dimension L3107 mm
Dimension M118 mm
Dimension N60 mm
Dimension O19 mm
Dimension S2M10
Dimension S3M10
Dimension X105 mm
Dynamic Load Capacity61,900 N
Dynamic Load Capacity (.61,900
Dynamic Load Capacity (.61,900
FeaturesNo Preload
For Rail Type500 Series Ball Rail
For Rail Width45 mm
For Rail Width (mm)45
For Use With500 Series Ball Rail
ItemLinear Bearing Ball Car.
Linear Guide DesignNarrow High Carriage
load capacity:77989 N
Max. Speed (In/Sec)5
Maximum Speed5 in/sec
measurement standard:Metric
nominal rail size:45 mm
operating temperature r.-40 to 80
Overall Height70 mm
overall height:70 mm
overall length:137.1 mm
overall width:86 mm
preload:Clearance
SealsNitrile Rubber
Series500 Series Ball Carriage
series:500
Slide Height (mm)70
Static Load Capacity134,800 N
Static Load Capacity (L.134,800
Static Load Capacity (N)134,800
Temp. Range (C)-40 Degrees to 80 Degr.
Type500 Series, Standard

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG0542367302.991In StockThomson7.46302.99 @ 1
thumbzoomMRO Supply1822357314.711In StockThomson Linear314.71 @ 1
Grainger2HVV6376.01In Stock15THOMSON376.0 @ 1
thumbzoommotionindustries.com02694918381.931In StockThomson381.93 @ 1
thumbzoomsustainablesupply.comC2818911447.691In StockThomson7.46447.69 @ 1
