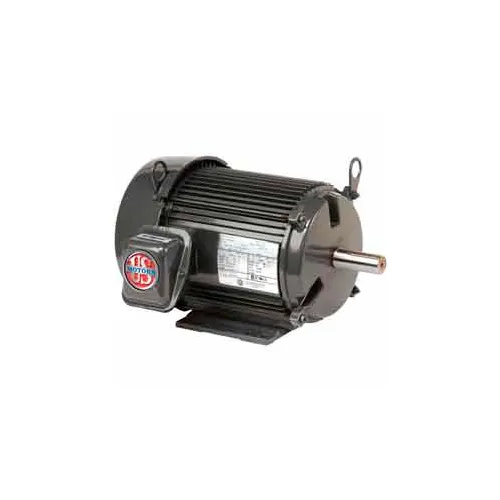

US Motors Unimount TEFC S5P1A, 3-Phase, 5 HP, Unimount, 3515 RPM Motor, TEFC


- PartNumber: S5P1A
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: US Motors
- Label: US Motors
Attributes
Key | Value |
---|
Composition | Rolled Steel |
Construction | Rolled Steel |
Drive End Flange Type | Standard |
Duty | CONT |
Enclosure | TEFC, Totally Enclosed . |
Estimated Weight | 71.50 |
Family Series | US Motors Motors |
FL Amps | 13.6-12.1/6.1 |
FL Efficiency | 88.5 |
Frame | 184T |
Frequency | 60 Hz |
Full Load Amps | 13.6-12.1/6.1 |
Gross Weight | 65 lbs |
Hertz | 60 |
Horsepower | 5 HP |
HP | 5 HP, 5 |
Hz | 60 Hz |
Ins. Class | F |
Item | Motor,3PH,5HP,3600,208-. |
Item Number | S5P1A |
Kilowatts | 3.7 kW |
kW | 3.73 kW |
Manufacturer | US Motors (Nidec), US M. |
Manufacturer Part Number | S5P1A |
Model Number | DA52 |
Motor Bearings | 6205-2Z-J/C3,6206-2Z-J/. |
Motor Enclosure Design | TEFC |
Motor Frame Material | Rolled Steel |
Motor Mounting Type | HORZ-FOOTED |
Motor Service Factor | 1.15 |
Mounting | Foot Mount |
Mounting Type | Foot Mount |
NEMA Design | B |
NEMA Frame | 184T |
Net Weight | 0 lbs |
Nominal Efficiency | 0.885 |
Nominal Voltage | 208 VAC, 240 VAC, 480 V. |
Number of Poles | 2 |
Number of Speeds | 1 |
Overall Length | 15.8 |
Package Quantity | 1 |
Part Number | S5P1A |
Phase | 3, 3 ph |
Product Type | General Purpose |
RPM | 3,515 RPM |
RPM Range | 3515 RPM |
Speed (RPM) | 3515 |
Standards | EE,NEMA PREMIUM |
Voltage | 208-230/460 V, 208V, 23. |
Voltage (AC) | 208-230 VAC, 460 VAC |
All Prices
Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
---|
  | Zoro | G0406382 | 447.99 | 1 | In Stock | | U.S. Motors | 65.0 | 447.99 @ 1 |
  | Global Industrial | WBB466999 | 559.0 | 1 | In Stock | | US Motors | | 559.0 @ 1 |
  | motorsandcontrol.com | S5P1A | 594.0 | 1 | In Stock | | US Motors (Nidec) | 71.5 | 594.0 @ 1 |
  | Galco | S5P1A-USM | 594.0 | 1 | In Stock | | US Motors | 65.0 | 594.0 @ 1 |
  | National Supply Network | B466999 | 605.06 | 1 | In Stock | | US MOTORS | | 605.06 @ 1 |
| motionindustries.com | 04426983 | 969.49 | 1 | In Stock | | US Motors (Nidec) | | 969.49 @ 1 |
