Burndy YAV50FM14

B00CBKSUIG

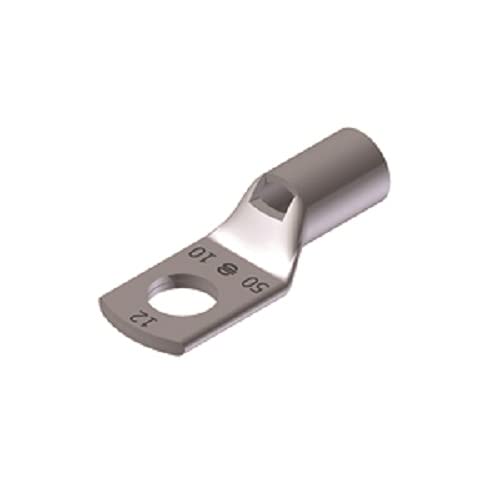

Burndy YAV50FM14 Hylug Non-Insulated Copper Tubular Terminal, 14 Stud Size, 21.8" Width, Flex 50 sq. mm Conductor (Pack of 20)

Burndy YAV50FM14 Hylug Non-Insulated Copper Tubular Terminal, 14 Stud Size, 21.8" Width, Flex 50 sq. mm Conductor (Pack of 20)zoom

Attributes

Key Value
Conductor - Copper Flex.50
Conductor - Copper Flex.50
Conductor - Copper Flex.50
Conductor - Copper Flex.50
Conductor - Copper Flex.50
Connector TypeTerminal
Die Index12
Dimension - B Length in.0.69 in
Dimension - Bolt Hole S.0.59 in
Dimension - Bolt Size f.#14
Dimension - Hole Size f.3/5
Dimension - Hole Size i.0.59 in
Dimension - Hole Size mm15 mm
Dimension - L Length Ov.56.6mm
Dimension - Length Over.2.23 in
Dimension - N inch0.55 in
Dimension - Outside Dia.0.56 in
Dimension - Pad Width i.0.88 in
Dimension - Strip Lengt.0.69 in
Dimension - Stud Size i.#14
Dimension - Z inch0.57 in
Family SeriesBurndy Terminals, YAV-F.
Gross Weight0 lbs
Item NumberYAV50FM14
ManufacturerBurndy
Manufacturer Part NumberYAV50FM14
MaterialCopper
Max Temp194 ?F
Net Weight0 lbs
Physical Attribute - Nu.1
Physical Attribute - To.Straight
Physical Attribute - To.Ring
PlatedYes
Plating MaterialTin
Plating TypeTin - Electro Plated
Product SeriesYAV-FM
Rating - KVA35 kV
Rating - Minimum Voltage600
Standards - RoHS Compli.CM
Terminal MaterialCopper
Terminal TypeBarrel - Standard
Tongue Width0.88 "
Trade NameHYLUG?
TypeMetric Terminals
Voltage - Maximum35000
Volts35,000 V
Wire Strip Length0.75 "

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomusmegastore.comYAV50FM1436.84120Burndy36.84 @ 20
thumbzoomGalcoYAV50FM14-BURN58.91120Burndy58.91 @ 20
