CONCORD ELECTRONICS 15-904-1-05

mpn15-904-1-05
brandname: CONCORD ELECTRONICS
manufacturername: CONCORD ELECTRONICS

15-904-1-05, Non-Insulated Turret Terminal (50 Items)

15-904-1-05, Non-Insulated Turret Terminal (50 Items)

zoom

Brand: CONCORD ELECTRONICS
PartNumber: 15-904-1-05
Model: 15-904-1-05
Manufacturer: Concord Electronics
Label: Concord Electronics

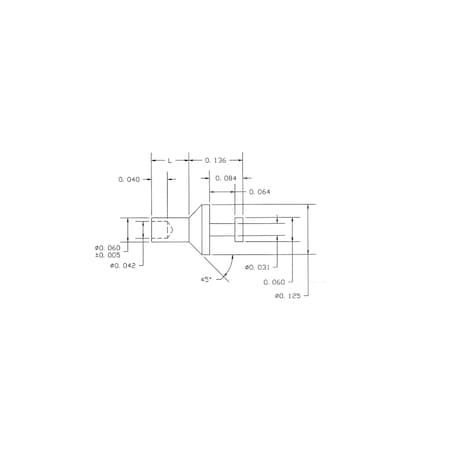

Attributes

Key	Value
Board Thickness	0.031" (0.79mm)
Category	Connectors, Interconnec.
Contact Finish	Electro-Solder
Contact Finish Thickness	300.0?in (7.62?m)
Contact Material	Brass
Country of Origin (subj.	United States
Diameter - Turret Head	0.060" (1.52mm)
Flange Diameter	0.125" (3.18mm)
Insulation	Non-Insulated
Insulation Color	-
Length - Above Board	0.136" (3.45mm)
Length - Below Flange	0.062" (1.57mm)
Length - Overall	0.198" (5.03mm)
Material - Insulation	-
Mfr	Concord Electronics
Mounting Hole Diameter	0.064" (1.63mm)
Mounting Type	Through Hole
Number of Turrets	Single
Package	Bulk
Part Status	Active
Series	15-904
Staking Side ID	0.031" (0.80mm)
Staking Side OD	0.060" (1.52mm)
Terminal Type	Single End
Termination	Swage

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Verical	15-904-1-05	0.4125	76	1129		Concord		0.4125 @ 76
	Master Electronics	15904105	0.56	1	1760		Concord		0.56 @ 50
	Electro Sonic	15904105	0.5936	1	2257		Concord		0.5936 @ 50
	Onlinecomponents.com	15-904-1-05	0.69	1	350		CONCORD ELECTRONICS		0.69 @ 50
	Zoro	G0374806	0.82	10	50	45	Concord Electronics		0.82 @ 50
	Digi-Key	12179023	0.96	10	10000		Concord Electronics		0.96 @ 50
	Chip One Stop Global	C1S149500107458	1.36	2257	2257		Concord		1.36 @ 2257
