- mpn2WCG4
- brandname: Dayton
- manufacturername: Dayton

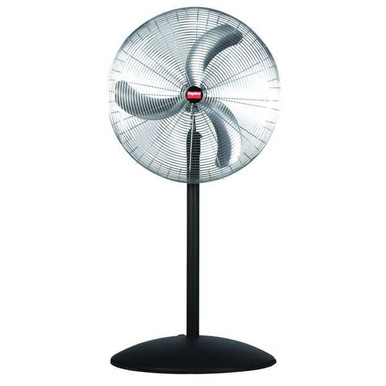

24" Quiet Design Air Circulator, 3325/4556/5588 cfm
- Brand: Dayton
- PartNumber: 2WCG4
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Dayton Electric Manufacturing Co.
- Label: Dayton Electric Manufacturing Co.
Attributes
| Key | Value |
|---|
| Air Flow | 3325/4556/5588 CFM, 3,3. |
| Air Velocity (FPM) @ 10. | 700/567/441 |
| Air Velocity (FPM) @ 20. | 500/405/315 |
| Air Velocity (FPM) @ 40. | 300/243/189 |
| Air Velocity (FPM) @ 60. | 200/162/126 |
| Air Velocity (FPM) @ 80. | 125 |
| Air Velocity @ 10 Ft. | 700/567/441, 700/567/44. |
| Air Velocity @ 20 Ft. | 500/405/315, 500/405/31. |
| Air Velocity @ 40 Ft. | 300/243/189 fpm, 300/24. |
| Air Velocity @ 60 Ft. | 200/162/126, 200/162/12. |
| Air Velocity @ 80 Ft. | 125 fpm, 125 |
| Amps | 2.5 |
| Application | Spot Cooling and People. |
| Assembled | No |
| Assembly Required | Yes |
| Bearing Type | Ball |
| Blade Dia. | 24" |
| Blade Diameter | 24 in, 24" |
| Blade Material | Cast Aluminum |
| Brand | Dayton |
| CFM High | 5588 |
| CFM Low | 3325 |
| CFM Medium | 4556 |
| CFM/Watt | 18.6 |
| Cord Length | 15 ft. |
| Country of Origin | China |
| Country of Origin (subj. | China |
| Current Stock | 37 |
| Depth | 13-1/4 in, 13 1/4 in |
| Drive Type | Direct, Direct Drive |
| Environmental Applicati. | Industrial |
| Fan Accessory Style | Quiet Design |
| Fan Cord Length | 15 ft |
| Fan Housing Material | Steel |
| Fan Mounting Location | Pedestal |
| Fan Style | Quiet Design |
| Frame Material | Steel |
| Guard Material | Steel |
| Height | Adj 60 to 96", Adj 60 t. |
| Height Adjustment | 60 to 96 in |
| Housing Material | Steel |
| Hz | 60, 60 Hz |
| Includes | Mounting Device and Mou. |
| International Shipping | No |
| Item | Standard-Duty Quiet-Des. |
| Item? | 2WCG4 |
| Material | Steel |
| Max. Ambient Temp. | 105 ?F, 105 Degrees F, . |
| Max. Depth | 13-1/4" |
| Mfr. Model? | 2WCG4 |
| Mobile/Stationary | Stationary |
| Motor Enclosure | Totally Enclosed Air-Ov. |
| Motor HP | 1/3 hp, 1/3 |
| Motor Insulation | Class B |
| Motor RPM | 1110/900/700 |
| Motor Type | Permanent Split Capacit. |
| Mpn | 2WCG4 |
| NEMA Plug Configuration | 5-15P |
| Number of Blades | 3 |
| Number of Conductors | 3 |
| Number of Speeds | 3 |
| Operating Amps | 2.5 |
| Oscillating | No |
| Oscillating / Non-Oscil. | Non-Oscillating |
| Oscillation | Non-Oscillating |
| Outside Dia. | 27" |
| Phase | 1 |
| Product Type | Standard-Duty Quiet-Des. |
| Requires | Assembly |
| RPM | 1110/900/700 |
| Shaft Dia. | 5/8 in, 5/8" |
| SKU | ZO-G0763987 |
| Sound Level | 72/65/57dBA, 72/65/57 d. |
| Speeds | 3 |
| Standards | UL, UL, cUL, OSHA |
| Thermal Protection | Auto |
| UNSPSC | 40101604 |
| UPC | 190735236963 |
| Voltage | 115VAC, 115 V AC |
| Watts | 300 |
| Wheeled Base | Stationary |
| Width | 27", 27 in |
| Wire Guard Finish | Nickel Chrome |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| grainger.ca | DTN2WCG4 | 691.70037606 | 1 | In Stock | | DAYTON | 89.0 | 691.70037606 @ 1 |
 | Zoro | G0763987 | 695.38 | 1 | In Stock | | Dayton | 89.0 | 695.38 @ 1 |
| Grainger | 2WCG4 | 791.09 | 1 | In Stock | | DAYTON | | 791.09 @ 1 |
 | simsupply.com | ZO-G0763987 | 823.7 | 1 | 37 | | Dayton | | 823.7 @ 1 |
 | Raptor Supplies | AC3UAH | 1016.9337555 | 1 | In Stock | | DAYTON | | 1016.9337555 @ 1 |
 | sustainablesupply.com | C1133993 | 1021.46 | 1 | In Stock | | Dayton | 89.0 | 1021.46 @ 1 |
