Dayton 4Z503

mpn4Z503
brandname: DAYTON
manufacturername: DAYTON

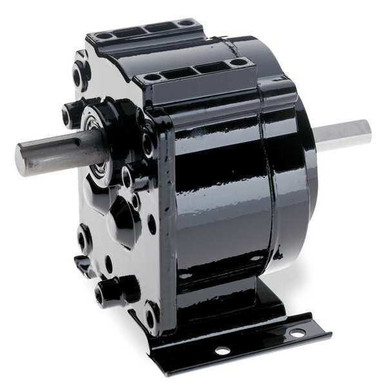

Dayton 4Z503 Reducer,Speed,135 RPM - 4Z503

Dayton 4Z503 Reducer,Speed,135 RPM - 4Z503

zoom

Brand: Dayton
PartNumber: 4Z503
Manufacturer: Dayton
Label: Dayton

Attributes

Key	Value
Base	Removable
Bearings	Ball
Bore Dia.	5/8"
Brand	Dayton
Current Stock	22
Dimension A	3.718 in
Dimension B	3 in
Dimension C	5.344 in
Dimension D	0.594 in
Finish	Gloss Black Powder Coat.
Gear Type	Helical First Stage, Sp.
Gearing	Helical First Stage
Housing	Die Cast Aluminum Gearc.
Housing Material	Die Cast Aluminum, Alum.
Input RPM	1725 rpm, 1725
International Shipping	No
Item	Speed Reducer
Lead Time	Expected to ship in 1-2.
Lubrication	Heavy Duty Oil
Max. Input HP	1/3
Max. Output Torque	175 in-lb, 175.00 in.-l.
Max. Torque (In.-Lbs.)	175
Mounting	All Position, Any Posit.
Mpn	4Z503
Nominal Output RPM	135 RPM, 135
Nominal Ratio	13:1
Number of Stages	2
Oil Seal	Spring-Loaded Lip
Output Shaft Dia.	5/8 in
Output Shaft Dia. (In.)	5/8
Output Shaft Diameter	5/8 in
Output Shaft Height	3 3/4 in
Output Shaft Height (In.	3.72
Output Torque @ 1/10 HP	43 in-lbs
Output Torque @ 1/10 HP.	43
Output Torque @ 1/12 HP	36 in-lbs
Output Torque @ 1/12 HP.	36
Output Torque @ 1/20 HP	21 in.-lbs., 21 in-lb
Output Torque @ 1/20 HP.	In Stock
Output Torque @ 1/3 HP	175 in-lb
Output Torque @ 1/3 HP .	175
Output Torque @ 1/4 HP	106 in-lb
Output Torque @ 1/4 HP .	106
Output Torque @ 1/40 HP	10 in-lbs, 10 in-lb
Output Torque @ 1/40 HP.	10
Output Torque @ 1/6 HP	71 in-lbs
Output Torque @ 1/6 HP .	71
Overhung Load	175 lb.
Overhung Load (Lb.)	175
Pinion	Heat Treated Steel
Pinion Material	Hardened Steel
Seal Type	Spring Loaded Lip
Shaft Orientation	Parallel
Ship Weight	6 lbs.
SKU	ZO-G2889022
Speed Reducer Type	Indirect Drive
SubCategory	Power Transmission
Type	Indirect Drive
UPC	190735340745

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Zoro	G2889022	322.99	1	1		Dayton	5.15	322.99 @ 1
	simsupply.com	ZO-G2889022	388.24	1	22		Dayton		388.24 @ 1
	AmazonSC	B000CG7154	389.29	1	In Stock		Dayton		389.29 @ 1
	AmazonTP	B000CG7154	395.46	1	In Stock	5	Dayton		395.46 @ 1
	AmazonUNK	B000CG7154	395.46	1	In Stock		Dayton		395.46 @ 1
	grainger.ca	WWG4Z503	419.31990038	1	In Stock		DAYTON	5.15	419.31990038 @ 1
	sustainablesupply.com	C1689953	427.71	1	In Stock		Dayton	5.15	427.71 @ 1
	Raptor Supplies	AE2QXL	530.495433	1	In Stock		DAYTON		530.495433 @ 1
	emotorpro.com	4Z503	644.44	1	In Stock		Dayton	6.0	644.44 @ 1
