B011OXFWJA

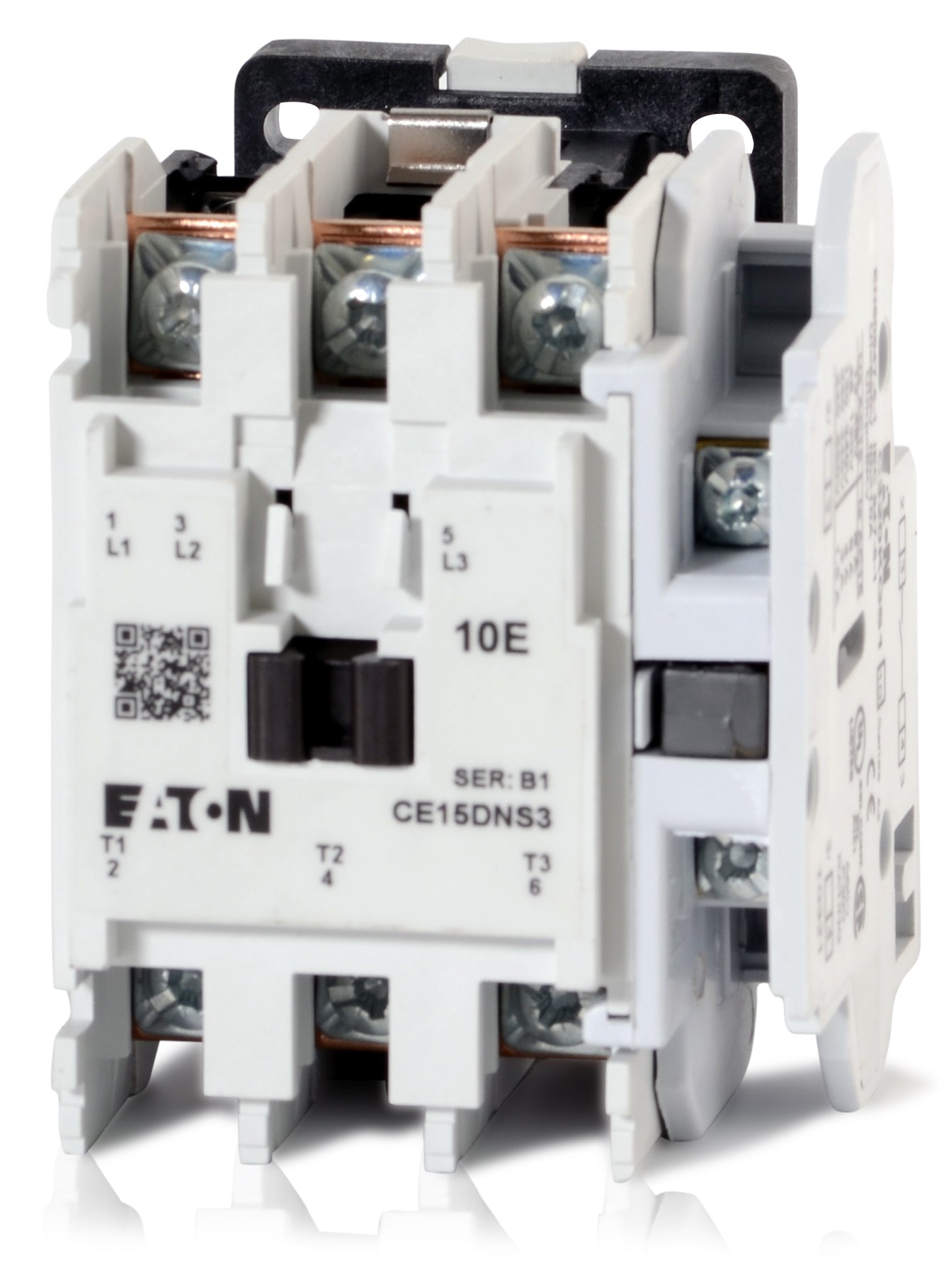

EATON CUTLER HAMMER CE15DNS3AB IEC OPEN 3P CONT SZ D 120V COIL - FOR REPLACEMENT ONLY

EATON CUTLER HAMMER CE15DNS3AB IEC OPEN 3P CONT SZ D 120V COIL - FOR REPLACEMENT ONLYzoom

Attributes

Key Value
Amperage18
Amps18, 32
ApplicationElec Assemblies, Panels.
ApprovalUL, CSA, IEC, ISO, DIN .
ApprovalsCSA, UL
Auxiliary Contacts1NO
BrandEaton, EATON CUTLER-HAM.
Carton1
Catalog NumberCE15DNS3AB
Category DescriptionIEC/Freedom Contactor
Certification ListingsUL, CSA, IEC
ClassificationIEC/Freedom Contactor
Coil Power Rating1 hp
Coil TypeMagnetic
Coil Voltage110-120 Vac, 50-60 Hz, .
Connection TypeScrew
Contact Configuration1NO, 1 NO
Contact TypeAuxiliary
Country of OriginDominican Republic
DescriptionIEC Open 3P Cont SZ D 1.
Description:IEC OPEN 3P CONT SZ D 1.
dimensions3.2500 IN X 1.8000 IN X.
Dimensions3.25 in L x 1.8 in W x .
Enclosure TypeOpen
extra long descriptionETN CE15DNS3AB Eaton XT.
Family / StyleFreedom
Family SeriesCutler Hammer, Div of E.
FeaturesFill
For Use WithFreedom Series Motor Co.
Frame SizeD
Frame TypeC15DN
Frequency Rating50/60 Hz
General Purpose (AC1)32 A
Gross Weight1.4 lbs
GTIN00782113778785
HP @ 230V (1ph)3
HP @ 230V (3ph)5
HP @ 460V (3ph)10
Item NumberCE15DNS3AB
Item TypeContactors
Long DescriptionEaton XT IEC contactor,.
Made in USANo
ManufacturerCutler Hammer, Div of E.
Manufacturer Part NumberCE15DNS3AB
Manufacturers Part Numb.CE15DNS3AB
Max HP 115V 1PH1 hp
Max HP 200/208V 3PH5 hp
Max HP 230/240V 1PH3 hp
Max HP 230/240V 3PH5 hp
Max HP 460/480V 3PH10 hp
Max HP 575/600V 3PH15 hp
Maximum Load Current18 A
MFG Part #:CE15DNS3AB
MountingSide, Surface
Mounting TypePanel/Side, Surface
MpnCE15DNS3AB
N/O Contacts1
Nema Size1
Net Weight1.4 lbs
Nominal Coil Voltage120 VAC
Number of Auxiliary Con.1
Number of Poles3
Operating Cycles3000000 Cycles
Operating Temperature-5 to 65 deg C
Overload RelaysC306, C316
Part NumberCE15DNS3AB
Phase3
Poles3NO, 3
Poles (Closed)3
Product SeriesFreedom
Product TypeEaton XT IEC Contactor
ProtectionMagnetic
SeriesFreedom
Size55 mm, F
StandardUL Listed,CSA Certified.
standardUL Listed,CSA Certified.
Supplier:CUTLER-HAMMER INC
Temperature Rating-5 to 65?C
Terminal ConnectionBox Lug
Terminal TypeScrew
TerminationBox Lug
TypeNon-Reversing, Freedom,.
UL Motor Switching (AC3)18 A
UNSPSC39121529 - Contactors
Upc782113778785
UPC782113778785
UPC:782113778785
Voltage600VAC
Volts AC600
Volts AC Control120
Weight per each1.1
