Fasco D1081

mpnD1081
brandname: FASCO
manufacturername: FASCO

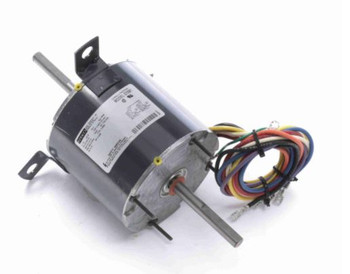

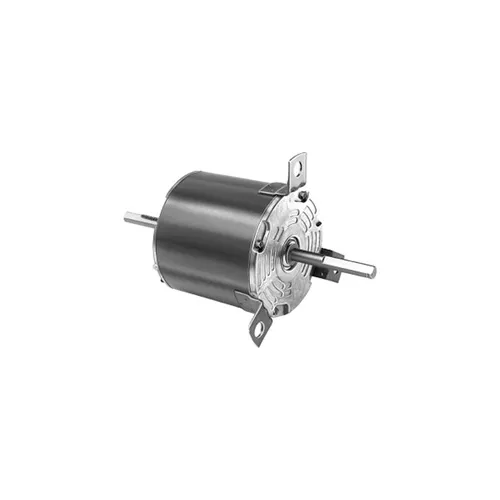

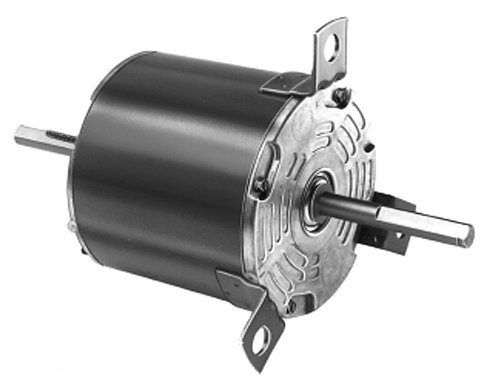

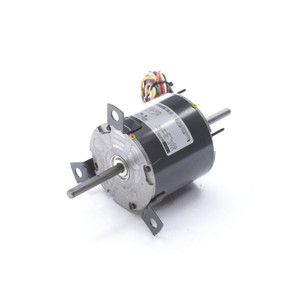

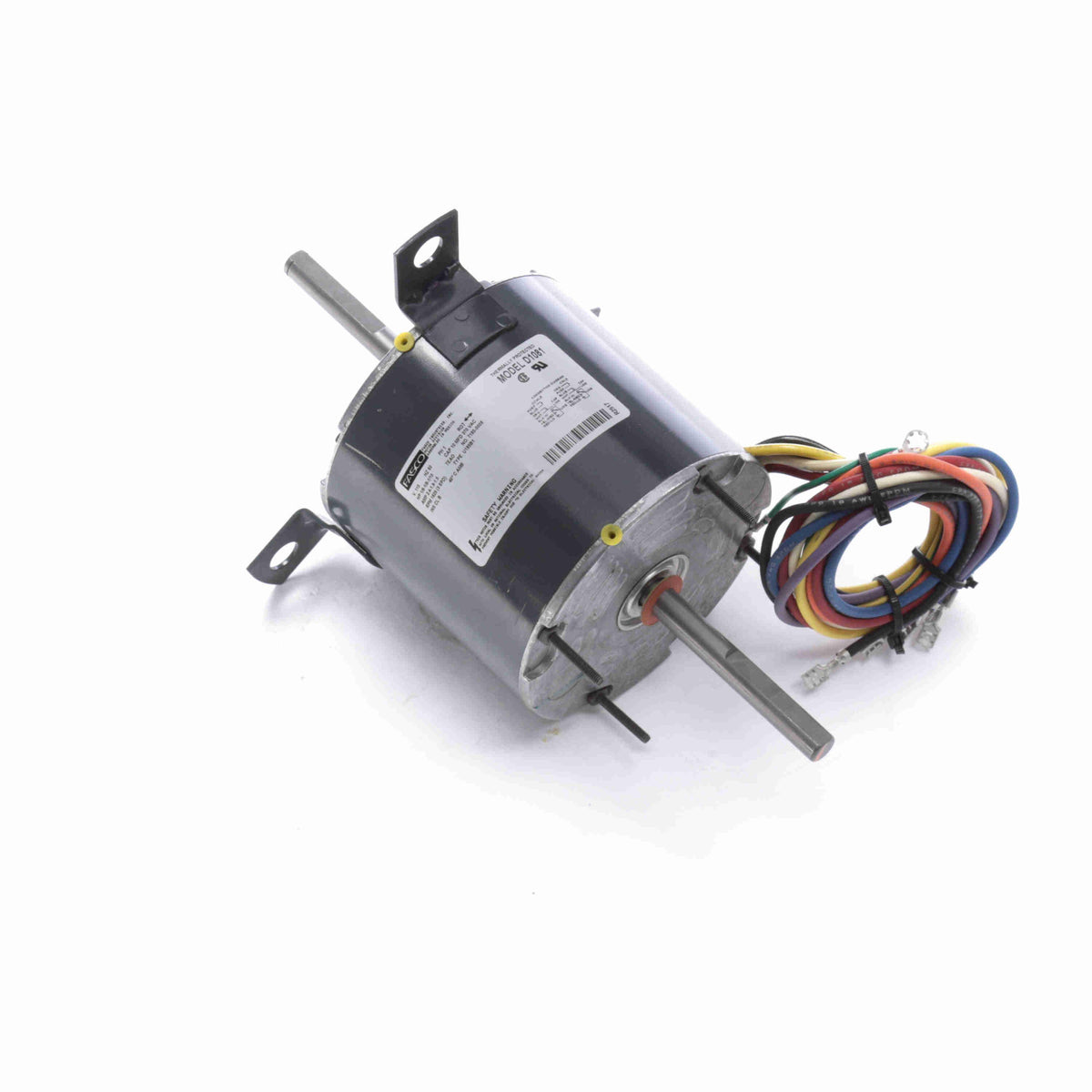

Fasco D1081 5" Frame Totally Enclosed Permanent Split Capacitor OEM Replacement Motor with?Sleeve Bearing, 1/6-1/8-1/10HP, 1625rpm, 115V, 60Hz, 2.4-1.9-1.5 amps

Fasco D1081 5" Frame Totally Enclosed Permanent Split Capacitor OEM Replacement Motor with?Sleeve Bearing, 1/6-1/8-1/10HP, 1625rpm, 115V, 60Hz, 2.4-1.9-1.5 amps

zoom

Brand: Fasco
PartNumber: D1081
Model: D1081
PackageQuantity: 1
Binding: Misc.
Manufacturer: Fasco Motors
Label: Fasco Motors

Attributes

Key	Value
Ambient temperature (?C)	40
Amps	2.4-1.9-1.5, 2.4/1.9/1.5
Bearings	Sleeve
Brand	Fasco
C-Dimension	12.05 (in.)
Capacitor	10MFD/370VAC
Catalog Number	D1081
CE	N
Country of origin	Mexico
Country of Origin (subj.	United States
Cross Reference	3-9650/3-18440/5KCP29MG.
CSA	Y
Current	2.4-1.9-1.5 A
DE Bearing Type	Sleeve
DEM Reference	FA#D1081
Drive end bearing	Sleeve
Duty	Continuous
Electrical Type	Permanent Split Capacit.
Electrical type	Permanent Split Capacit.
Enclosure	Open Air Over
Enclosure Type	TEAO (Totally Enclosed .
Frame	42, 5"
Frame length	4.38 in
Frame Material	Rolled Steel
Frame material	Rolled Steel
Frame Type	42
Frequency	60, 60 Hz
HP	1/6, 1/10, 1/8
Insulation class	B
Insulation Class	B
IP Code	-
KVA Code	-
Max Ambient	40?C
Motor Diameter	5"
Motor Orientation	-
Motor Shell Length	4-7/8"
Mounting	Lug
Mounting Type	Lug
Number of speeds	3
Number of Speeds	3
ODE Bearing Type	Sleeve
Opp drive end bearing	Sleeve
Output HP	1/6-1/8-1/10 HP
Output KW	0.13 kW
Overall Length	12.05 in
Packaged height	15 in
Packaged length	11 in
Packaged width	11 in
Phase	1
Poles	4
Product Category	HVAC/R Motors > HVAC/R.
Product Type	PSC (Permanent Split Ca.
Rotation	Double Shafted, Reversi.
RPM	1625
RPM (Nameplate)	1625
RPM (Number of Poles)	4 (1201 RPM to 1800 RPM)
Service factor	1
Service Factor	1
Shaft Diameter	1/2 (in.), 1/2", 0.500 .
Shaft extension	3.5 in
Shaft Extension	3.5 (in.)
Shaft Length	3-1/2" x 3-5/8"
Shaft type	Flat
Shaft Type	Flat
Ship Weight	7 lbs.
Speed	1625 RPM
Speeds	3
Starting method	Across the line
Thermal protection	Automatic
Type of Overload Protec.	Automatic
UL	Recognized
Voltage	115 V
Volts	115

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	ktool.net	D1081	205.05	1	In Stock		Fasco		205.05 @ 1
	AmazonTP	B007VJWQ0K	219.95	1	In Stock	2	Fasco		219.95 @ 1
	cshincorporated.com	D1081	290.38	1	In Stock		Fasco	14.0	290.38 @ 1
	midwestapplianceparts.com	D1081-FA-P	321.7	1	In Stock		Fasco		321.7 @ 1
	furnacepartsource.com	D1081	373.86	1	In Stock		Fasco		373.86 @ 1
	emotorpro.com	D1081	384.68	1	In Stock		Fasco	7.0	384.68 @ 1
	waterpumpsnow.com	D1081	385.0	1	In Stock		Fasco	2.0	385.0 @ 1
	National Supply Network	B185906	391.94	1	In Stock		FASCO		391.94 @ 1
	Global Industrial	WBB185906	399.95	1	In Stock		Fasco		399.95 @ 1
	ptacsolutions.com	D1081	400.86	1	In Stock		FASCO		400.86 @ 1
	Dreisilker	FA-RBC-D1081	432.77	1	In Stock		Fasco		432.77 @ 1
	Zoro	G6569097	460.29	1	In Stock	26	Fasco		460.29 @ 1
	MRO Supply	5762870	486.07	1	In Stock		Fasco		486.07 @ 1
	uri.com	D1081	797.56	1	In Stock		Fasco	6.0	797.56 @ 1
