Honeywell BZ-2RW82-A2

B00E2Y6Z90

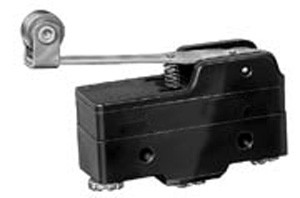

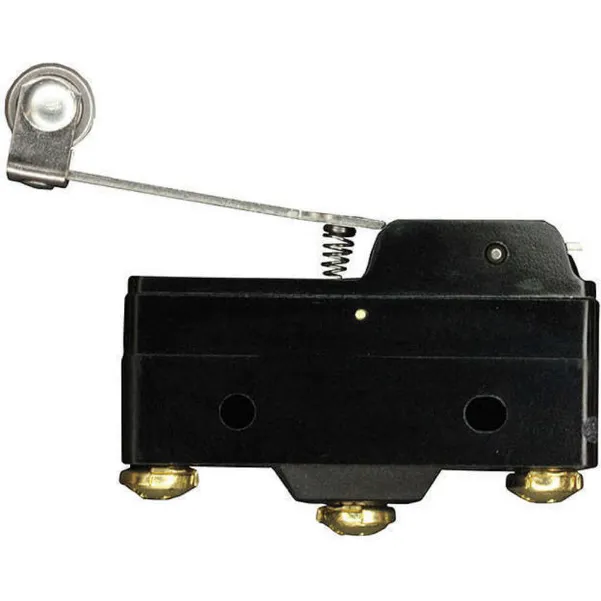

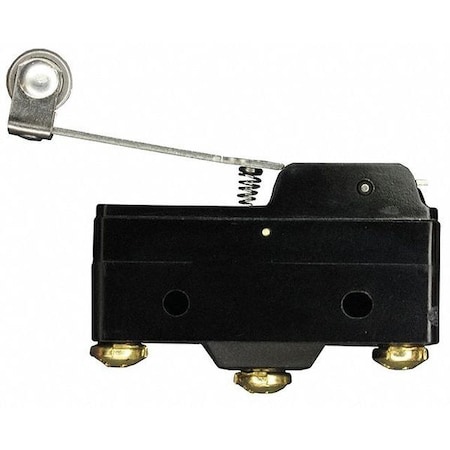

Lg Unsealed Swch, 15A, Spdt, Roller Lever

Lg Unsealed Swch, 15A, Spdt, Roller Leverzoom

Attributes

Key Value
AC Contact Rating - Sna.15 A @ 480 V, 15 A @ 48.
ActuatorRoller Lever
Actuator Length1.90"
Actuator TypeRoller Lever, Lever, Ro.
Actuator Type - Snap Ac.Lever, Long, Roller
Alternate Part No.785-BZ-2RW82-A2
Base Product NumberBZ-2
Basic Actuator Type - S.Lever
BrandHoneywell
Casing MaterialHigh Grade Phenolic
CategorySwitches
CircuitSPDT
Contact FormSPDT
Contact Form- SwitchesSPDT
Current Rating15 A
Current Rating (Amps)15A (AC), 500mA (DC)
DC Contact Rating - Sna.15 A @ 240 V, 15 A @ 24.
Depth0.069"
Depth - Snap Action Swi.0.07 in
DescriptionSWITCH SNAP ACTION SPDT.
Detailed DescriptionSwitch SPDT Chassis Mou.
Differential Travel0.040" (1.0mm), 0.004 t.
Digi-Key Part Number480-2448-ND
Electrical Connection -.Screw
Electrical Life-
Family NameMICRO SWITCH B Series P.
Family SeriesHoneywell-Microswitch L.
Features-
Gross Weight0.1875 lbs
Head TypeRotary
Height0.95"
Height - Snap Action Sw.0.95 in
Housing MaterialPhenolic
Ingress Protection-
ItemLarge Unsealed Snap Swi.
Item NumberBZ-2RW82-A2
Length1.94"
Lever Actuator Length -.1.90 in, 1.9 in
ManufacturerHoneywell-Microswitch, .
Manufacturer Part No.BZ-2RW82-A2
Manufacturer Part NumberBZ-2RW82-A2
Manufacturer Product Nu.BZ-2RW82-A2
Manufacturer Standard L.38 Weeks
Max. Pretravel0.218 in
Mechanical Life20,000,000 Cycles
MfrHoneywell Sensing and P.
Mounting Dimension1.00" Centers
Mounting Dimension - Sn.1.00 in Centers
Mounting Hole Size0.14 in
Mounting TypeChassis Mount, Surface .
Net Weight0.1875 lbs
Number of Circuits - Sn.1
Operating Force3.5 oz, 3.50 Oz., 0.5 N.
Operating Position1.188" (30.2mm)
Operating Temp. Range-67 Degrees to 185 Deg.
Operating Temperature-55?C ~ 85?C
Over Travel0.156 in
Overtravel0.156" (3.96mm)
PackageBulk
Pretravel-
Product CategoryBasic / Snap Action Swi.
Product StatusActive
Release Force0.75 oz, 21gf
SeriesBZ/BA/BM/BE/6AS Series,.
Snap Action Switch TypeIndustrial Snap Action .
StandardsCE, CSA, UL, CSA Certif.
Switch FunctionON - (OFF), OFF - (ON),.
Temperature Rating-32 to +71 C
Terminal TypeScrew
TerminationScrew
Termination StyleScrew, Screw Terminal
TradenameMicroswitch
TypeLarge, Basic
Type of ActuatorLong Roller Lever
Voltage Rating125/250/480VAC, 125 V
Voltage Rating - AC125 V
Voltage Rating - DC125 V
Voltage Rating AC480 V
Voltage Rating DC250 V
Watertight - Snap Actio.No
Width - Snap Action Swi.1.94 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.comBZ-2RW82-A212.163676Honeywell12.16 @ 3
thumbzoomCarlton Bates Company7845491733514.961178HONEYWELL14.96 @ 1
thumbzoomsustainablesupply.comC121013918.141In StockHoneywell0.0818.14 @ 1
thumbzoomZoroG241204219.991In StockHoneywell Micro Switch0.0819.99 @ 1
thumbzoomgalesburgelectric.comBZ-2RW82-A220.131In StockHoneywell20.13 @ 1
steinerelectric.com2884821.541In StockHoneywell21.54 @ 1
grainger.caWWG6DXD322.42740541In StockHONEYWELL MICRO SWITCH0.0822.4274054 @ 1
thumbzoomNewark23F413626.771484HONEYWELL26.77 @ 1
thumbzoomswatee.comBZ-2RW82-A228.06162Honeywell28.06 @ 1
thumbzoomRadwellBZ-2RW82-A230.14110HONEYWELL MICROSWITCH30.14 @ 1
thumbzoomDigi-Key124859931.511640Honeywell Sensing and Productivity Solutions31.51 @ 1
thumbzoomTMEBZ-2RW82-A231.68133HONEYWELL31.68 @ 1
alliedcontrols.comBZ-2RW82-A233.281In StockHoneywell33.28 @ 1
thumbzoomGalcoBZ-2RW82-A2-MCRO39.11In StockHoneywell-Microswitch0.187539.1 @ 1
thumbzoomRaptor SuppliesAE8LNE44.247061In StockHONEYWELL44.24706 @ 1
AmazonTPB00E2Y6Z9046.031In Stock2Honeywell Micro Switch46.03 @ 1

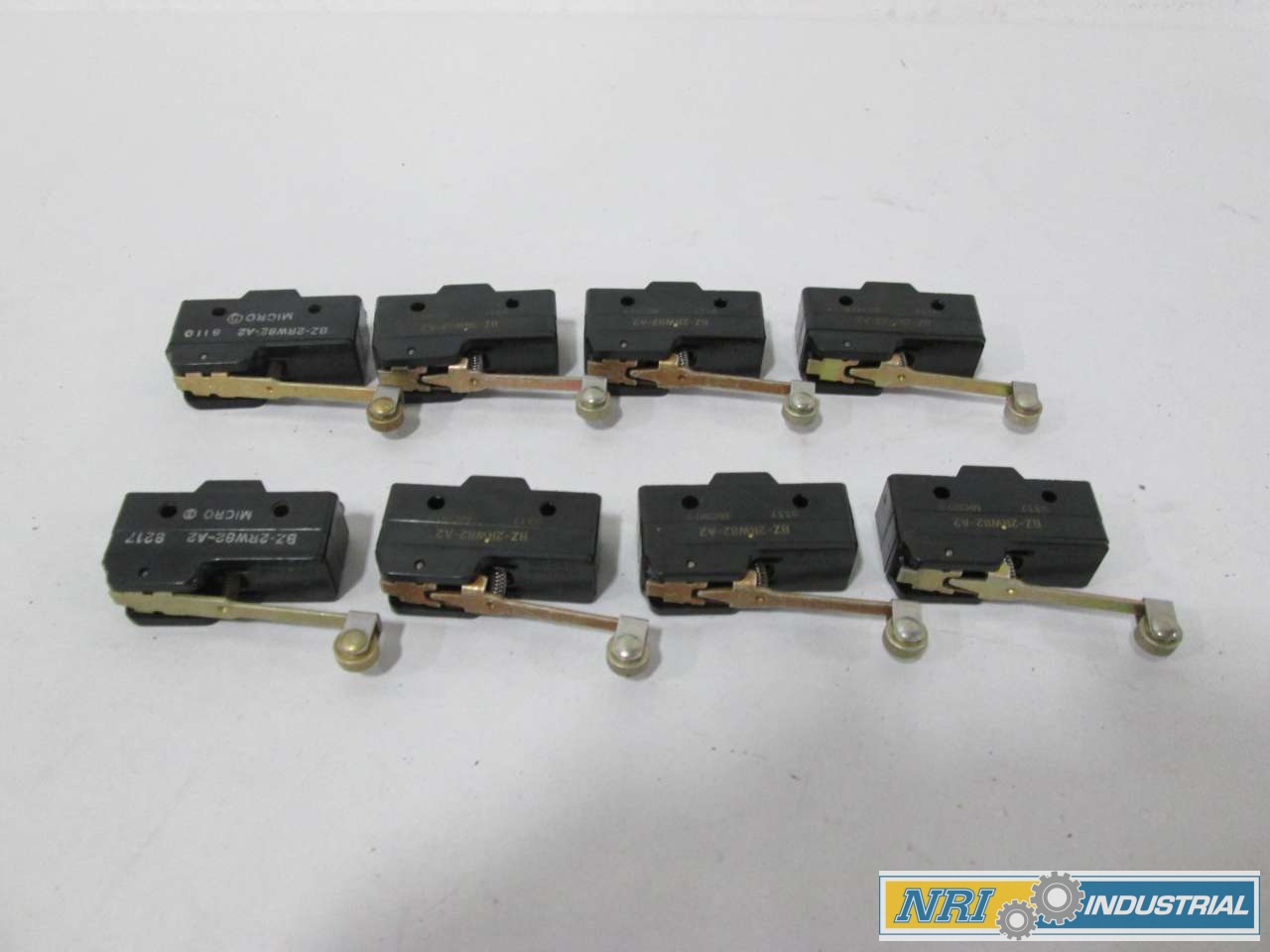

thumbzoomNRI IndustrialD35844351.271In StockHONEYWELL51.27 @ 1
us.rs-online.com7011912957.2112440Honeywell57.21 @ 1
thumbzoomebay.com_componentcentralincBZ-2RW82-A2112.941In StockHONEYWELL112.94 @ 1
thumbzoomebay.com_h.eagelBZ-2RW82-A2114.561In StockHONEYWELL114.56 @ 1
thumbzoomebay.com_jeno_9248BZ-2RW82-A2127.981In StockHONEYWELL127.98 @ 1
thumbzoomebay.com_avizasalesBZ-2RW82-A2129.981In StockHONEYWELL129.98 @ 1
thumbzoomebay.com_online_componentsBZ-2RW82-A2133.191In StockHONEYWELL133.19 @ 1
thumbzoomebay.com_indbidBZ-2RW82-A2149.981In StockHONEYWELL149.98 @ 1
thumbzoomebay.com_thebigronBZ-2RW82-A2166.671In StockHONEYWELL166.67 @ 1
thumbzoomebay.com_fiveanddimeindustrialBZ-2RW82-A2190.981In StockHONEYWELL190.98 @ 1
standardelectricsupply.com267683880.01In StockHoneywell3880.0 @ 1
thumbzoomkempstoncontrols.co.ukBZ-2RW82-A24938.6871In StockHoneywell4938.687 @ 1
