Hubbell Wiring Device-Kellems PH3004PA020

B007IAPX52

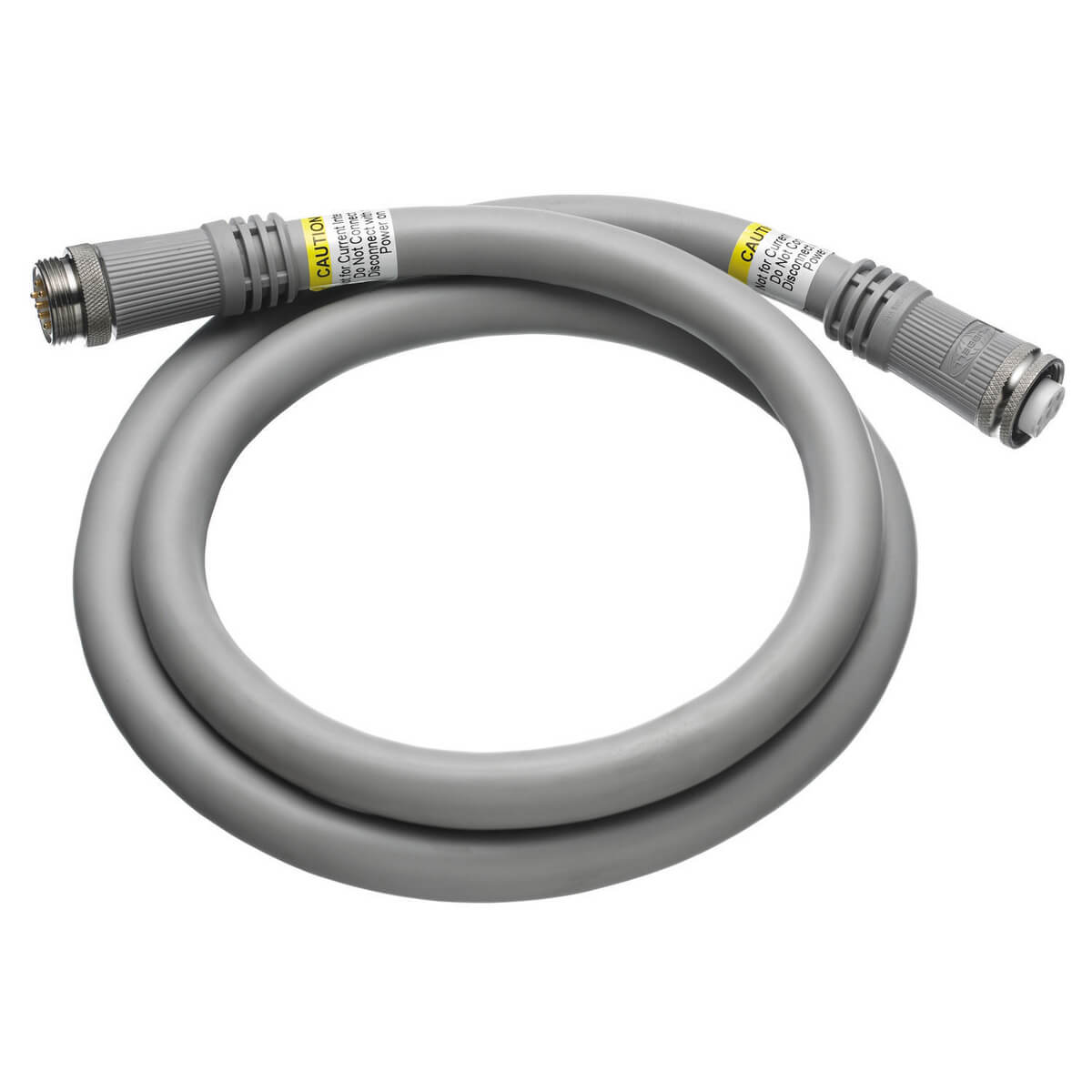

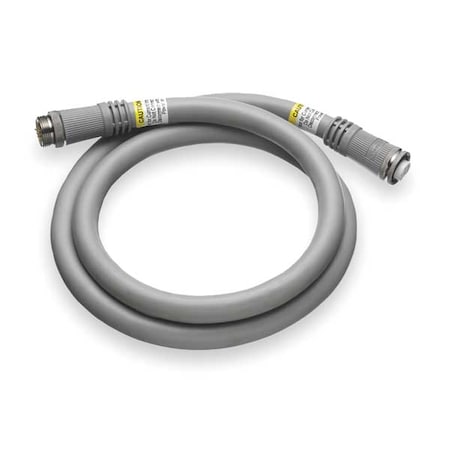

Hubbell - PH3004PA020 - Hubbell Wiring PH3004PA020MotorQuick Double Ended Cable; 600 Volt, 30 Amp, (4) 10 AWG Stranded, Copper Conductor, PVC Insulation, Gray

Hubbell - PH3004PA020 - Hubbell Wiring PH3004PA020MotorQuick Double Ended Cable; 600 Volt, 30 Amp, (4) 10 AWG Stranded, Copper Conductor, PVC Insulation, Grayzoom

Attributes

Key Value
Amperage30 A
Amperage Rating30
Amps AC30 A
ApplicationQuick Connect/Disconnec.
ApprovalscULus
BrandHubbell Wiring Device -.
Cable length20 ft
Cable Length20 ft.
Cable TypePVC
Catalog NumberPH3004PA020
ColorGray, Green, Yellow, Wh.
Component TypeDouble-End Cable
Conductor MaterialCopper
Conductor Size10 AWG
Conductor size#10 AWG
Conductor typeCopper
ConnectorLinkosity
Connector ClassMini (1 in)
Connector ConfigurationMale to Female
Connector Size1-16 UN
Connector TypeDouble Ended Male/Female
ConstructionFabricated
Contact MaterialCopper
Cord Length (Ft.)20 ft
Cordset EndsDouble-Ended
Cordset TypeSignal
Country of OriginUnited States
Country of Origin (subj.United States
Current / amperage rati.30 A
Current Rating30 A
Current rating30 A
Enclosure TypeNEMA 4X
EU RoHS indicatorYes
Family SeriesHubbell Cordsets
FeaturesDouble Ended; PVC Insul.
For Use WithMfr. No. 2DZU9, 2DZV2, .
Gauge/Conductor10
Gender ConfigurationMale x Female
Gross Weight6.45 lbs
Indicator TypeNone
InsulationPVC
IP RatingIP67
ItemTC-ER Cable
Item NumberPH3004PA020
Item TypeDouble Ended Cable, Mal.
Jacket ColorGray
Jacket TypeTC-ER
Length6.1 m, 20'
Made in USAYes
ManufacturerHubbell Wiring Device-K.
Manufacturer Part NumberPH3004PA020
Max. Amps30A
Max. Voltage600VAC
Maximum Operating Tempe.105 Degrees C
Minimum Operating Tempe.-20 Degrees C
NEMA Enclosure Rating4X
Net Weight0 lbs
Number of Conductors4-Pole, 4
Number of Pins4
Number of poles3-Pole
Number of Poles3
Number of Wires4
Number of wires4-Wire
O.D.0.75
Outside Diameter0.75
Plug EndMale/Female
Plug Type4-Wire, Linkosity
Plug typeLinkosity
Product TypeCable Assembly
Side 1 AngleStraight
Side 1 Connector1 "
Side 1 GenderMale
Side 2 AngleStraight
Side 2 Connector1 "
Side 2 GenderFemale
Special FeaturesGreen/Yellow/Black Wires
StandardUL 508A, UL 2238 and UL.
StrandsMulti
Sub BrandLinkosity System
Switch Type-
Temp. Range-20 Degrees to 105 Degr.
Temperature Range (C)-20-105 ?C
Temperature Rating-20 Deg C to 105 Deg C
Temperature rating-20 Deg C to 105 Deg C
TypeDouble Ended
UPC783585504728
Voltage600 V
Voltage Rating600V AC, 600
Wire Gauge (AWG)10
Wire Size10 AWG

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.comPH3004PA020169.541In StockHubbell169.54 @ 1
thumbzoomZoroG2202767212.721In Stock53Hubbell6.4212.72 @ 1
thumbzoomMRO Supply1032953282.671In StockHubbell Wiring282.67 @ 1
thumbzoomGalcoPH3004PA020-HBBL311.761In StockHubbell6.45311.76 @ 1
AmazonTPB007IAPX52347.431In Stock30Hubbell347.43 @ 1
thumbzoomcrescentelectric.com202451349.261In StockHubbell Wiring Device - Kellems349.26 @ 1
thumbzoomsustainablesupply.comC1178514379.091In StockHubbell6.4379.09 @ 1
Newark71K9262494.941In StockHUBBELL WIRING DEVICES494.94 @ 1
thumbzoomRaptor SuppliesAB9MPM529.9144111In StockHUBBELL WIRING DEVICE-KELLEMS529.914411 @ 1
