Intermatic ET1125CR

mpnET1125CR
brandname: INTERMATIC
manufacturername: INTERMATIC

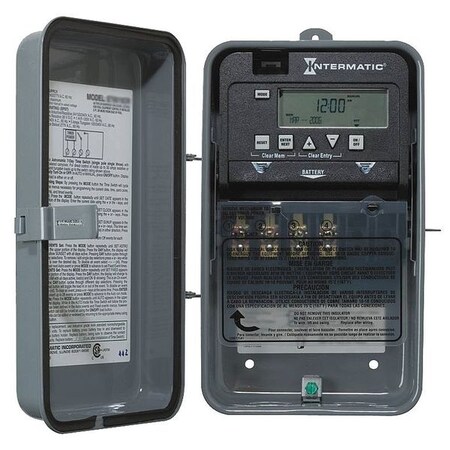

Intermatic ET1125CR 24-Hour 30-Amps 2XSPST OR DPST Electronic Time Switch, Clock Voltage 120-Volt-277-Volt NEMA 3R, 2-Circuit/30-Amp Rating, Color

Intermatic ET1125CR 24-Hour 30-Amps 2XSPST OR DPST Electronic Time Switch, Clock Voltage 120-Volt-277-Volt NEMA 3R, 2-Circuit/30-Amp Rating, Color

zoom

Brand: Intermatic
PartNumber: ET1125CR
Model: ET1125CR
Color: Color
Size: 2-Circuit/30-Amp Rating
PackageQuantity: 1
Binding: Tools & Home Improvement
Manufacturer: Intermatic
Label: Intermatic

Attributes

Key	Value
-40 F (-40C)	Start Temp. (Min)
078275 10998 8	UPC
1 minute	Minimum ON/OFF Time
120/208/240/277 Volt .	Voltage (V)
155 F (68C)	Start Temp. (Max)
1HP / 2HP	HP Rating:
2 Circuits	Operates
23 hours 59 minutes	Maximum ON/OFF Time:
24 Hr. Electronic Time .	Family
2xSPST or DPST	Switch Type:
3	Depth (in.)
30 Amps	Amperage
5	Width (in)
7.75	Height (in)
Amps	30
Available Actions - El.	On/Off, Pulse
Backup Device	(2) AAA Batteries
Backup Time	3 yr.
Color	Gray
Contact Form	SPST
Country of Origin (subj.	China
CSA, CSAus Listed, Cali.	UL Listed
Depth	3-5/8"
Enclosure	Metal
ET1125CR	Stock Code
Event Allocation - Elec.	1 On/Off Action = 2 Eve.
Events Available - Elec.	28
Field replaceable "AAA".	Notes
Grey	Color
Height	9-3/8"
HP @ 120V	1
HP @ 240V	2
Intermatic	Brand
Item	Electronic Timer
Max. On/Off Cycles	14
Max. Time Setting	24 hr.
Min. Time Setting	1 min.
Mounting	Snap-In
NEMA 3R Gray Painted Dr.	Housing
NEMA Rating	3R
Number of Channels	2
Number of Poles	2
Number of Pulse Events	14
Operating Temp.	-40 Degrees to 155 Deg.
Operation Mode	24 hr.
Pulse Duration	2 sec.
Replace Intermatic ET10.	Cross Refefence
Standards	cCSAul Listed, Californ.
Up to 28	Set Points:
Voltage	120/208 to 240/277VAC
Width	5-1/2"
Yes	Battery Back Up

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	improvedepot.com	989558	180.99	1	2		Intermatic		180.99 @ 2
	Zoro	G0922126	197.6	1	2	11	Intermatic		197.6 @ 2
	industrialstores.com	ET1125CR	205.62	1	2	10	Intermatic		205.62 @ 2
	bulbspro.com	ET1125CR	210.0	1	2		Intermatic		210.0 @ 2
	turtle.com	INT ET1125CR	268.74	1	2		Intermatic		268.74 @ 2
	us.rs-online.com	71553618	272.23	1	2		Intermatic		272.23 @ 2
	ptacsolutions.com	ET1125CR	306.99	1	2		Intermatic		306.99 @ 2
	Grainger	4XGW2	312.0	1	2	0	INTERMATIC		312.0 @ 2
	steinerelectric.com	490139	331.63	1	2		Intermatic		331.63 @ 2
	United Electric	216951	341.81	1	2		Intermatic		341.81 @ 2
	Guardian	02168342	493.1	1	2		Intermatic		493.1 @ 2
	bscsource.com	ET1125CR	524.29	1	2		Intermatic		524.29 @ 2
