Jet 321893

mpn321893
brandname: Jet
manufacturername: Jet

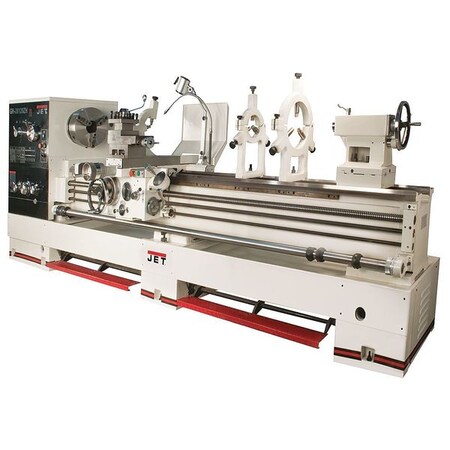

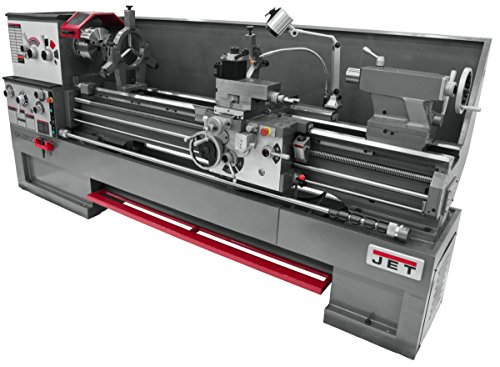

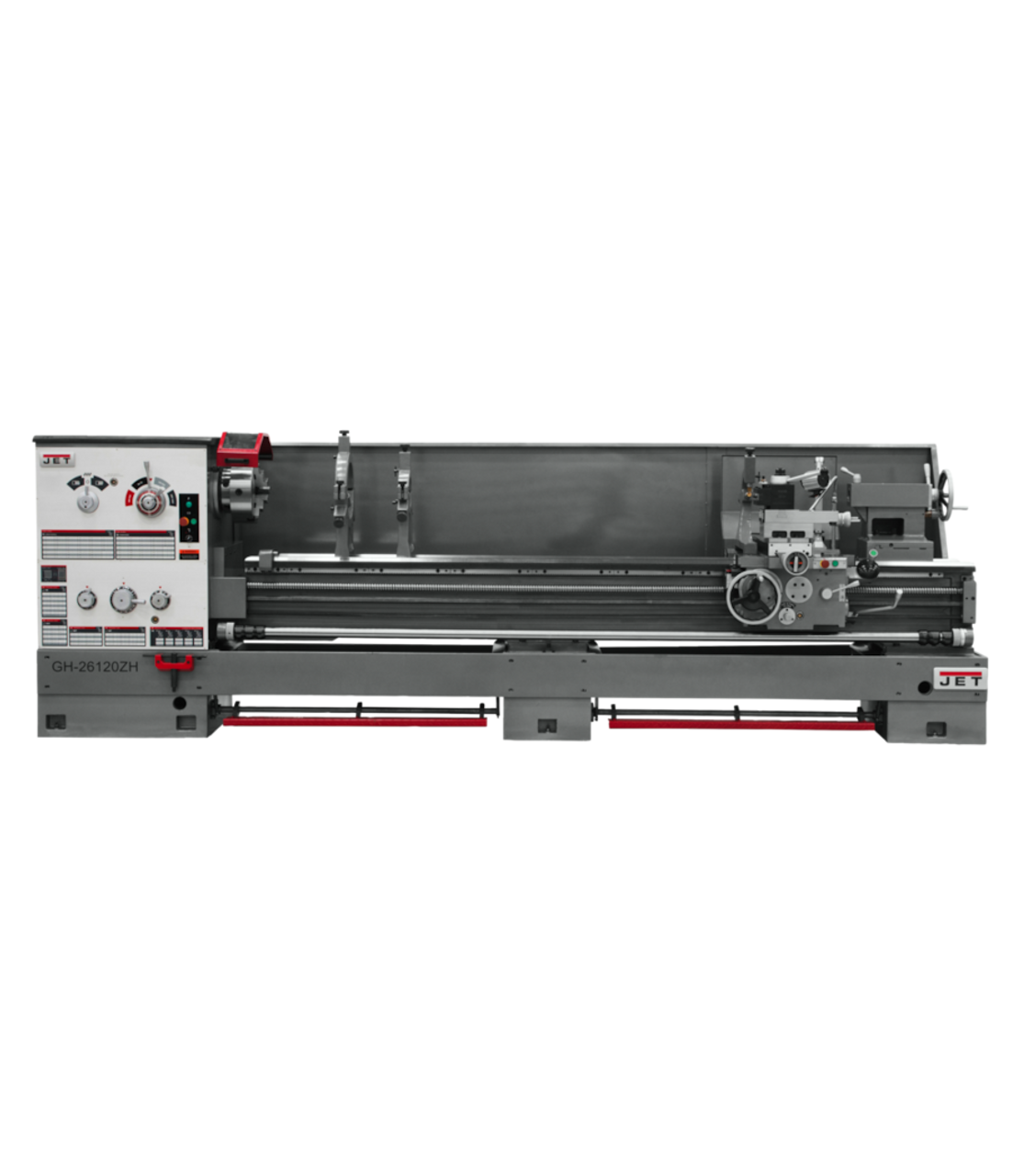

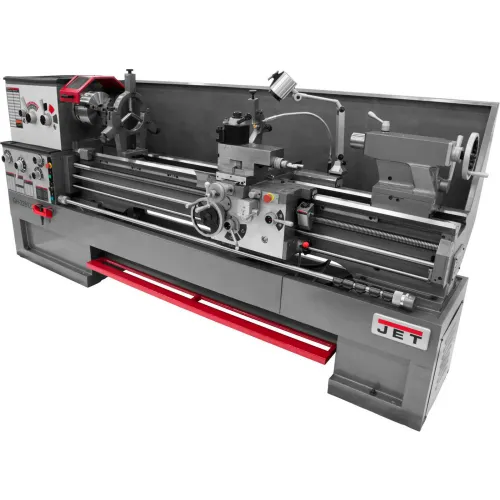

Jet 321893 GH-26120ZH With Taper Attachment

Brand: Jet
PartNumber: 321893
PackageQuantity: 1
Manufacturer: JPW Industries
Label: JPW Industries

Attributes

Key	Value
Accessory 1	Taper Attachment </td
Bed Width	8 in
Bed Width (In.)	16-3/4
Carriage Travel (In.)	108-1/4, 108-1/4 </td
Compound Slide Travel (.	5-1/2 </td
Compound Travel (In.)	5-1/2
Cross Slide Travel (In.)	12-3/32 </td
Cross Travel (In.)	5-1/2
Distance Between Center.	120 </td
Drive	Geared Head </td
Follow Rest Capacity (I.	25/32 - 3-15/16 </td
Frequency	60 Hz
Gap Length (In.)	8
Horsepower	10 hp
Hz	60
Item	Lathes
Length of Gap (In.)	8 </td
Max Tool Size (In.)	1-1/4 x 1-1/4 </td
Motor (HP)	10 HP, 230/460, 3 Ph .
Motor HP	10
Number of Inch Threads	48 </td
Number of Longitudinal .	65 </td
Number of Metric Threads	22 </td
Number of Spindle Speeds	12 </td
Number of Threads (In.)	48
Overall Dimensions (L x.	178 x 43 x 57 </td
Overall Height	55 1/2 in
Overall Length	6.6930 in
Overall Width	53 5/32 in
Phase	3
Prewired (V.)	230 </td
Range of Cross Feeds (I.	.0040 - .0404 </td
Range of Inch Threads (.	2-30 </td
Range of Longitudinal F.	.0023 - .0937 </td
Range of Metric Threads	1 - 14 </td
Range of Spindle Speeds.	36 - 1,600 </td
Size	26 x 120 </td
SKU	321893
Spindle Bore (In.)	4-1/8 </td, 4-1/8
Spindle Mount	D1-8 </td
Spindle Taper	MT-5
Spindle Taper with Slee.	MT-5 </td
Steady Rest Capacity (I.	Small 25/32 - 4-29/32, .
Style (Type)	Engine - Large Spindle .
Swing In Gap (In.)	34
Swing Over Bed (In.)	26, 26 </td
Swing Over Cross Slide .	16-1/2, 16-1/2 </td
Swing Through Gap (In.)	34 </td
Tailstock Spindle Trave.	6 </td
Tailstock Travel (In.)	6
Taper in Tailstock Spin.	MT-5 </td
Thread Range (mm)	1 to 14
Voltage	Prewired @ 230V/460V Ca.
Weight (Lbs.)	9,362 </td
Width of Bed (In.)	16 </td

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
Grainger	36VE03	46410.0	1	In Stock	15	JET		46410.0 @ 1
internationaltool.com	JET-321893	50289.0	1	In Stock		Jet		50289.0 @ 1
Global Industrial	WBB1013513	54879.0	1	In Stock	24	JET		54879.0 @ 1
beavertools.com	JT321893	54879.0	1	In Stock		Jet		54879.0 @ 1
JB Tools	JB-DS-WLT-JT9-321893	54879.0	1	In Stock		Jet		54879.0 @ 1
elitemetaltools.com	2422	54879.0	1	In Stock		JET		54879.0 @ 1
AceTool	JET-321893	54879.0	1	In Stock		Jet	9362.0	54879.0 @ 1
toolsplus.com	JET321893	54879.0	1	In Stock		JET		54879.0 @ 1
imsbolt.com	321893	54879.0	1	In Stock		JET		54879.0 @ 1
Zoro	G3462965	64369.99	1	In Stock		Jet	9362.0	64369.99 @ 1
