Johnson Controls WT-4002-MCM

mpnWT-4002-MCM
brandname: Johnson Controls
manufacturername: Johnson Controls

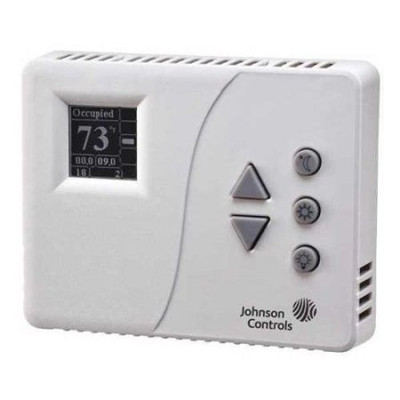

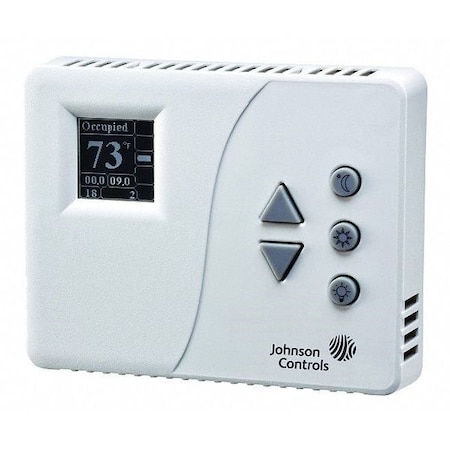

Johnson Controls - WT-4002-MCM - Dual Barbed Fittings for 5/32 in or 1/4 in OD Polytubing Pneumatic Two-Pipe Thermostat

Brand: Johnson Controls
PartNumber: WT-4002-MCM
PackageQuantity: 1
Binding: Misc.

Attributes

Key	Value
Action	Direct and Reverse
Adjustable Setpoint Ran.	Up to +/- 14 Degrees F
Air Connection Outside .	5/32 in, 1/4 in
Air Connection Type	Barbed Fitting
Air Flow Capacity	699 scim @ 14 psi
Air Flow Output	High Volume
Battery Backup	Yes
Battery Type	AA Lithium Battery
Connection	Dual Barbed Fittings fo.
Country of Origin (subj.	Mexico
Differential Type	Adjustable
Display	LCD
Display Type	Digital
Electrical Connection T.	Screw Terminals
Factory Setpoint Range	+/- 3 Degrees F
Features	Stand Alone Capability,.
Fitting Connection	Barbed 1/4 in, Barbed 5.
Frequency	2405 to 2475 MHz
Housing Color	White
Housing Material	White ABS Plastic
Humidification Control	Yes
Includes Batteries	Yes
Item	Pneumatic-to-Direct Dig.
Length	4 23/32 in
Length (Straight Wirewa.	4 23/32 in
Low Battery Indicator	Yes
Manufacturer Model Numb.	WT-4002-MCM
Maximum Air Pressure	18 psig
Maximum Control Tempera.	99 Degrees F
Maximum Operating Humid.	95 %
Maximum Throttling	5 psi
Minimum Control Tempera.	32 Degrees F
Minimum Operating Humid.	5 %
Minimum Throttling	1 psi
Mounting Direction	Horizontal
Mounting Direction/Incl.	Horizontal, Yes
Number of Channels	15
Number of Pipes	2
Number of Pipes/Air Flo.	2 Pipes/High Volume
Occupancy Sensor	Include a Binary Dry Co.
Operating Humidity Range	5 To 95% RH
Overall Depth	13/16 in
Overall Height	3 3/4 in
Overall Width	4 23/32 in
Pneumatic Thermostat Ty.	Two-Pipe
Setpoint Adjustment (Ac.	Exposed
Spacing Between Channels	5 MHz
Temperature Control Ran.	32 Degrees to 99 Degre.
Temperature Differential	32 Degrees to 99 Degre.
Temperature Scale	Celsius
Temperature Sensitivity	1 to 5 psi/ Degrees F
Thermostat Action	DA/RA Dual Control Acti.
Voltage	3.6
Width	13/16 in
Wireless Band - Operati.	2.4 GHz

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Zoro	G3107730	530.36	1	In Stock	26	Johnson Controls		530.36 @ 1
	furnacepartsource.com	WT-4002-MCM	592.42	1	In Stock		Johnson Controls		592.42 @ 1
