Leeson Electric 113958.00

B0773RZBCH

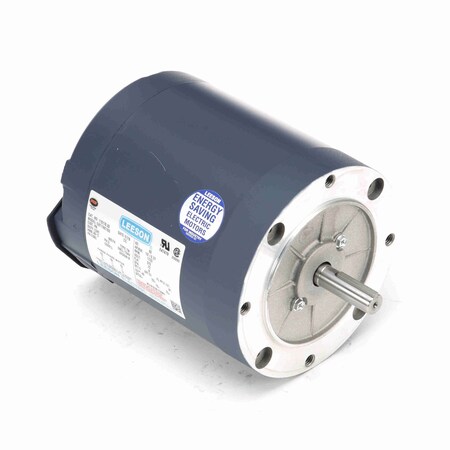

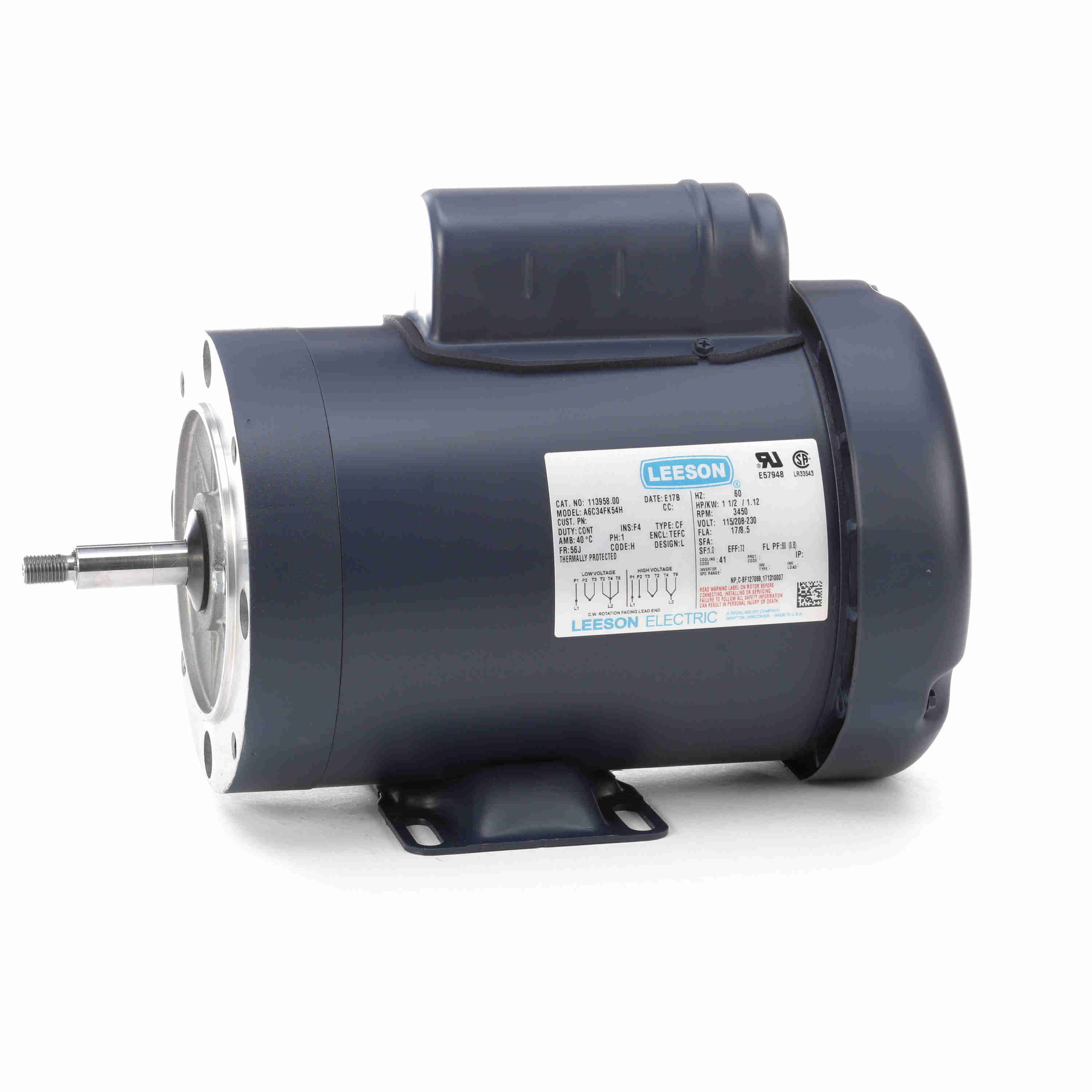

Leeson Electric, 113958.00, 1.5HP, 3450RPM, 1PH, 115V;208V;230V, 56J Frame, C-Face Flange, Foot Mount, TEFC, Jet Pump Motor

Leeson Electric, 113958.00, 1.5HP, 3450RPM, 1PH, 115V;208V;230V, 56J Frame, C-Face Flange, Foot Mount, TEFC, Jet Pump Motorzoom

Attributes

Key Value
Amperage Rating17/8.5 A
Amps17.0/9.0-8.5
Application TypeJet Pump (JM/JP) Motors
ApprovalsCSA, UL
Bearing Type12.81, Ball
BearingsBall
CategoryElectric Motor
Class/GroupA6C34FK54
CompositionSteel
ConstructionRolled Steel
Country of Origin (subj.United States
Description:..1 1/2HP..3450RPM.56.T.
Dimensions12.78 in L
Drive End Bearing Size6203
Drive End Bearing TypeBall
Drive End Flange TypeC-Face
Duty CycleContinuous
Efficiency72.0%, 72
EnclosureTEFC, Totally Enclosed .
Enclosure MaterialRolled Steel
Enclosure TypeTEFC (Totally Enclosed .
Estimated Weight34.00
Family SeriesLeeson Motors, Pump Dut.
FL Amps17/8.5
FL Efficiency72
Frame56J
Frame MaterialRolled Steel
Frame RemarksFOOTED
Frequency60
Frequency Rating60 Hz
Gross Weight0 lbs
Hertz60
Horsepower1.5 hp, 1-1/2 hp
HP1.5, 1.50, 1-1/2
Hz60
Insulation ClassClass F, F
Item ConditionFACTORY NEW
Item Number113958.00
KW1.1
ManufacturerLeeson Electric, LEESON.
Manufacturer Part Number113958.00
MaterialRolled Steel
Maximum Ambient Tempera.40? C
MFG Part #:113958.00
Model NumberA6C34FK54
Motor Shell Length7.00"
MountingRigid Base, Footless
mountingC-face w/ rigid base
Mounting TypeC-Face Footed, C-Face/F.
NEMA Frame56J
Net Weight34 lbs
Nominal Voltage208 VAC, 240 VAC
Number of Poles2
Number of Speeds1
Opp. Drive End Bearing .6203
Opp. Drive End Bearing .Ball
Overall Length12.81 ", 12.78"
Part Number113958.00
Phase1, 1 ph
Product SeriesPump Duty
Product TypePump, Capacitor Start
RotationFixed CW, CW Shaft End
RPM3450, 3600, 3400 - 3600.
Service Factor1, 1.0
Shaft Diameter0.625", 0.625, UL;CSA
Shaft Length2.44, 2.44"
Shaft Size0.63 in Dia x 2.44 in L
Ship Weight34 lbs.
Special FeaturesCapacitor Start Motors
Speed (RPM)3450
Supplier:LEESON ELECTRIC CORPORA.
Thermal ProtectionAutomatic
UPC:691720013052
Voltage110-120V, 208V, 230V, 1.
Volts115/208/230, 115/208-230

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.com113958253.01In StockLEESON253.0 @ 1
AmazonTPB0773RZBCH304.381In Stock3Leeson Electric304.38 @ 1
AmazonSCB0773RZBCH323.331In StockLeeson Electric323.33 @ 1
thumbzoomemotorpro.com113958.00383.81In StockLeeson34.0383.8 @ 1
kscdirect.comLEE 113958.00450.91In StockLEESON ELECTRIC CORPORATION450.9 @ 1
thumbzoomMRO Supply2525765485.631In StockLeeson485.63 @ 1
thumbzoomWalker Industrial113958-00514.721In Stock10Leeson514.72 @ 1
thumbzoomDealers Electric113958.00606.431In StockLeeson34.0606.43 @ 1
thumbzoommotorsandcontrol.comLE-113958.00666.121In StockLeeson Electric34.0666.12 @ 1
thumbzoomGalco113958.00-LEES671.141In StockLeeson34.0671.14 @ 1
thumbzoomZoroG2477998672.411In Stock26Leeson672.41 @ 1
us.rs-online.com73396525678.531In StockLeeson678.53 @ 1
thumbzoompumpproducts.com113958.00903.611In StockLeeson903.61 @ 1
thumbzoomRaptor SuppliesAJ2QMC950.1497461In StockLEESON950.149746 @ 1
