Leeson 119542.00

B01NA773Y6

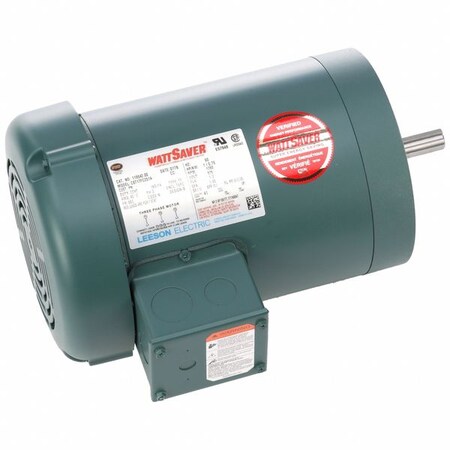

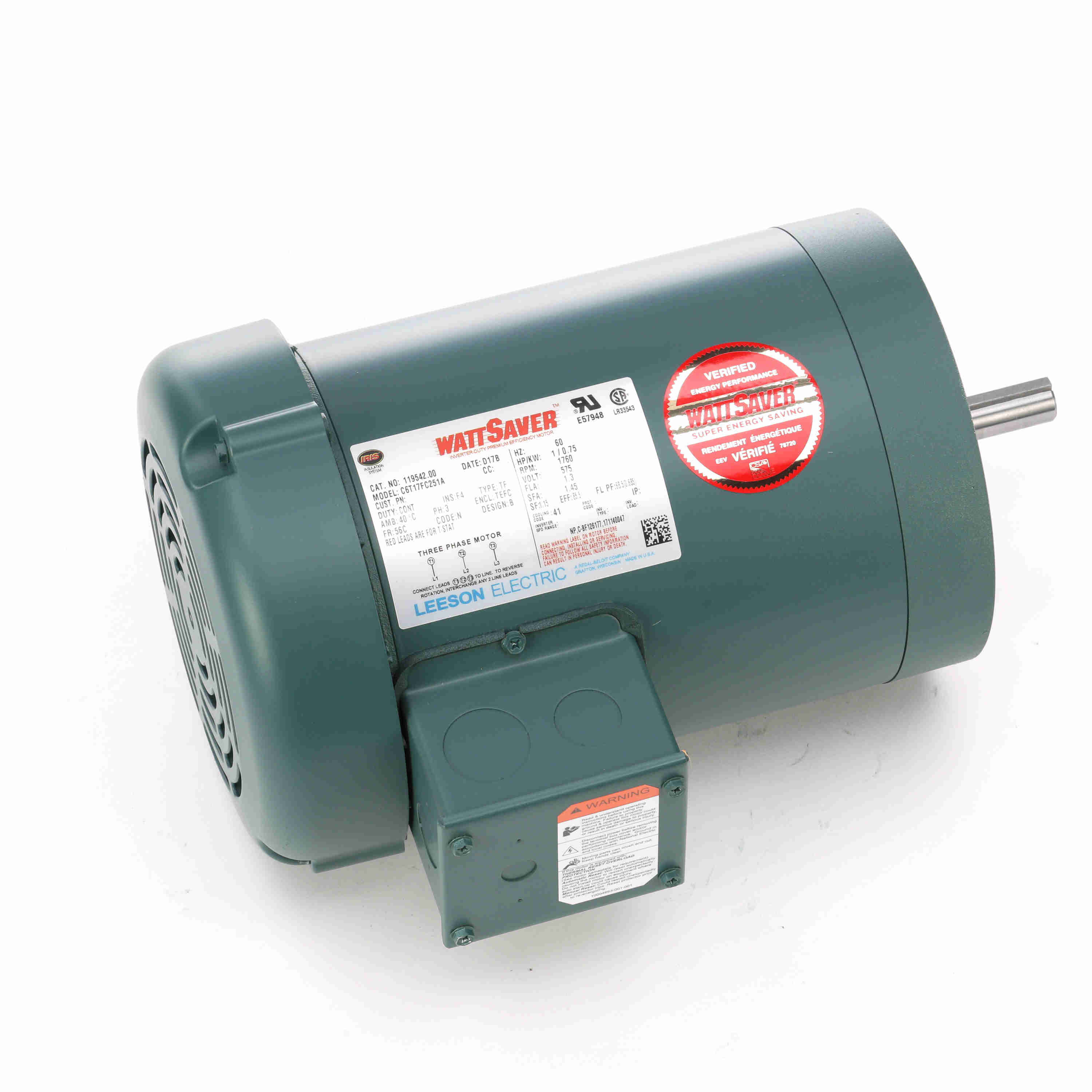

Leeson 119542.00 C Face Special Voltage Motor, New EISA Compliant Model Number, 1 hp, 1800 RPM, 56C Frame, TEFC, 575VV, 3 pH, 60 Hz

Leeson 119542.00 C Face Special Voltage Motor, New EISA Compliant Model Number, 1 hp, 1800 RPM, 56C Frame, TEFC, 575VV, 3 pH, 60 Hzzoom

Attributes

Key Value
Amperage Rating1.3 A
Amps1.3
Application TypeCompressor Motors, Fan .
Bearing TypeBall
BearingsBall
CategoryElectric Motor
CompositionSteel
ConstructionRolled Steel
Country of Origin (subj.United States
Description:Obsolete, replaced by 0.
Dimensions12.48 in L
Drive End Bearing Size6203
Drive End Bearing TypeBall
Drive End Flange TypeC-Face
Duty CycleContinuous
Efficiency85.5, 85.5%
Efficiency %85.5 %
EnclosureTEFC, Totally Enclosed .
Enclosure MaterialRolled Steel
Enclosure TypeTEFC (Totally Enclosed .
Estimated Weight59.00
Family SeriesLeeson Motors
FL Amps1.3
FL Efficiency85.5
Frame56C
Frame MaterialRolled Steel
Frame Remarks575 VOLT, FOOTLESS
Frequency60, 60 Hz
Frequency Rating60 Hz
Full Load Amps1.3
Gross Weight0 lbs
Hertz60
Horsepower1 hp
HP1
Hz60
Ins. ClassF
Insulation ClassClass F, F
Inverter RatedYes
ItemSpecial Voltage Motors
Item ConditionFACTORY NEW
Item Number119542.00
KW0.75
ManufacturerLeeson Electric, LEESON.
Manufacturer Part Number119542.00
MaterialRolled Steel
Max. Ambient Temp.40 Degrees C
Maximum Ambient Tempera.40? C
MFG Part #:119542.00
Motor ApplicationGeneral Application
Motor BearingsBall
Motor Design3-Phase
Motor Enclosure DesignTotally Enclosed Air-Ov.
Motor Frame MaterialSteel
Motor Mounting PositionHorizontal
Motor Mounting TypeFace
Motor Service Factor1.15
Motor Shaft DesignNEMA 56
Motor Shaft RotationReversible
Motor Shell Length7.00"
Motor Thermal ProtectionT-Stat
MountingRound, FOOTLESS
mountingC-face (NO base)
Mounting TypeC-Face, Round/C-Face/Fo.
Nameplate RPM1,760
NEMA DesignB
NEMA Frame56C
Net Weight0 lbs
No. of Speeds1
Nominal Efficiency86.5 %
Nominal Voltage575 VAC
Number of Poles4
Number of Speeds1
Opp. Drive End Bearing .6203
Opp. Drive End Bearing .Ball
Overall Length12 1/2 in, 12.48"
Part Number119542.00
Phase3, Three, 3 ph
Product TypeGeneral Purpose, Three .
RotationReversible
RPM1760, 1,760 RPM, 1800
RPM Range4000
Service Factor1.15
Shaft Dia.5/8 in
Shaft Diameter0.625", 0.625
Shaft Length1.88", 1.88
Shaft Size0.63 in Dia x 1.88 in L
Ship Weight35 lbs.
Speed1760 rpm
Speed (RPM)1760
StandardsCSA, UL
Supplier:LEESON ELECTRIC CORPORA.
Thermal ProtectionThermostat
UPC:691720104118
Voltage575V, 575
Voltage (AC)575 VAC
Voltage Compatibility575V AC
Volts575
Weight35 lb

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
AmazonTPB0773TJLYW611.621In Stock3Leeson Electric611.62 @ 1
thumbzoomMRO Supply2834532645.331In StockLeeson645.33 @ 1
thumbzoomapexindustrialautomation.com119542.00670.1514Leeson670.15 @ 1
thumbzoomemotorpro.com119542.00704.311In StockLeeson35.0704.31 @ 1
thumbzoomDealers Electric119542.00805.861In StockLeeson35.0805.86 @ 1
us.rs-online.com73397219868.651In StockLeeson868.65 @ 1
thumbzoommotorsandcontrol.comLE-119542.00885.17118Leeson Electric59.0885.17 @ 1
thumbzoomGalco119542.00-LEES892.121In StockLeeson892.12 @ 1
thumbzoomZoroG607353919911.241In StockLeeson35.4911.24 @ 1
kscdirect.comLEE 119542.00925.071In StockLEESON ELECTRIC CORPORATION925.07 @ 1
thumbzoomWalker Industrial119542-001003.21In Stock17Leeson1003.2 @ 1
thumbzoompumpproducts.com119542.001200.771In StockLeeson1200.77 @ 1
thumbzoomRaptor SuppliesAJ2RDY1516.6685431In StockLEESON1516.668543 @ 1
