Leeson 119543.00

B01N95R3K5

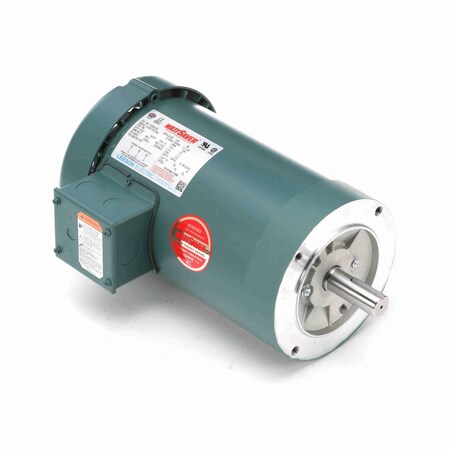

Leeson 119543.00 C Face Special Voltage Motor, New EISA Compliant Model Number, 1.5 hp, 1800 RPM, 56C Frame, TEFC, 575V, 200/400V, 3PH, 60 Hz

Leeson 119543.00 C Face Special Voltage Motor, New EISA Compliant Model Number, 1.5 hp, 1800 RPM, 56C Frame, TEFC, 575V, 200/400V, 3PH, 60 Hzzoom

Attributes

Key Value
Amperage Rating1.9 A
Application TypeCompressor Motors, Fan .
Bearing TypeBall
CategoryElectric Motor
CompositionSteel
ConstructionRolled Steel
Description:1.5HP..1750RPM.56C.TEFC.
Dimensions12.98 in L
Drive End Bearing Size6203
Drive End Bearing TypeBall
Drive End Flange TypeC-Face
Efficiency86.5
Efficiency %86.5 %
EnclosureTEFC, Totally Enclosed .
Enclosure TypeTotally Enclosed Fan Co.
Estimated Weight46.00
Family SeriesLeeson Motors
FL Amps1.9
FL Efficiency86.5
Frame56C
Frame MaterialRolled Steel
Frame Remarks575 VOLT, FOOTLESS
Frequency60, 60 Hz
Frequency Rating60 Hz
Gross Weight0 lbs
Hertz60
Horsepower1-1/2 hp, 1.5 hp
HP1.5, 1.50
Hz60
Insulation ClassClass F, F
Item ConditionFACTORY NEW
Item Number119543.00
KW1.1
ManufacturerLeeson Electric, LEESON.
Manufacturer Part Number119543.00
MaterialRolled Steel
MFG Part #:119543.00
MountingFOOTLESS
mountingC-face (NO base)
Mounting TypeC-Face, Round/C-Face/Fo.
NEMA Frame56C
Net Weight0 lbs
Nominal Voltage575 VAC
Number of Poles4
Number of Speeds1
Opp. Drive End Bearing .6203
Opp. Drive End Bearing .Ball
Package Quantity1
Part Number119543.00
Phase3, 3 ph
Product TypeGeneral Purpose
RotationReversible
RPM1700 - 1800, 1,750 RPM,.
Service Factor1.15
Shaft Diameter0.625
Shaft Length1.87
Shaft Size0.63 in Dia x 1.87 in L
Speed1750 rpm
Speed (RPM)1750
Supplier:LEESON ELECTRIC CORPORA.
UPC:691720104125
Voltage575V, 575
Voltage (AC)575 VAC
Volts575

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
industrialmotors.com119543.00670.213LEESON ELECTRIC670.2 @ 1
thumbzoomMRO Supply2834533681.191In StockLeeson681.19 @ 1
thumbzoomapexindustrialautomation.com119543.00707.3814Leeson707.38 @ 1
thumbzoomDealers Electric119543.00850.631In StockLeeson43.0850.63 @ 1
thumbzoomZoroG2477103883.9911Leeson883.99 @ 1
us.rs-online.com73397152916.461In StockLeeson916.46 @ 1
thumbzoommotorsandcontrol.comLE-119543.00934.35118Leeson Electric46.0934.35 @ 1
thumbzoomGalco119543.00-LEES941.231In StockLeeson941.23 @ 1
kscdirect.comLEE 119543.001147.351In StockLEESON ELECTRIC CORPORATION1147.35 @ 1
thumbzoompumpproducts.com119543.001208.991In StockLeeson1208.99 @ 1
thumbzoomRaptor SuppliesAJ2RDZ1332.551611In StockLEESON1332.55161 @ 1
