Leeson Electric 98381

B08J81PC8J

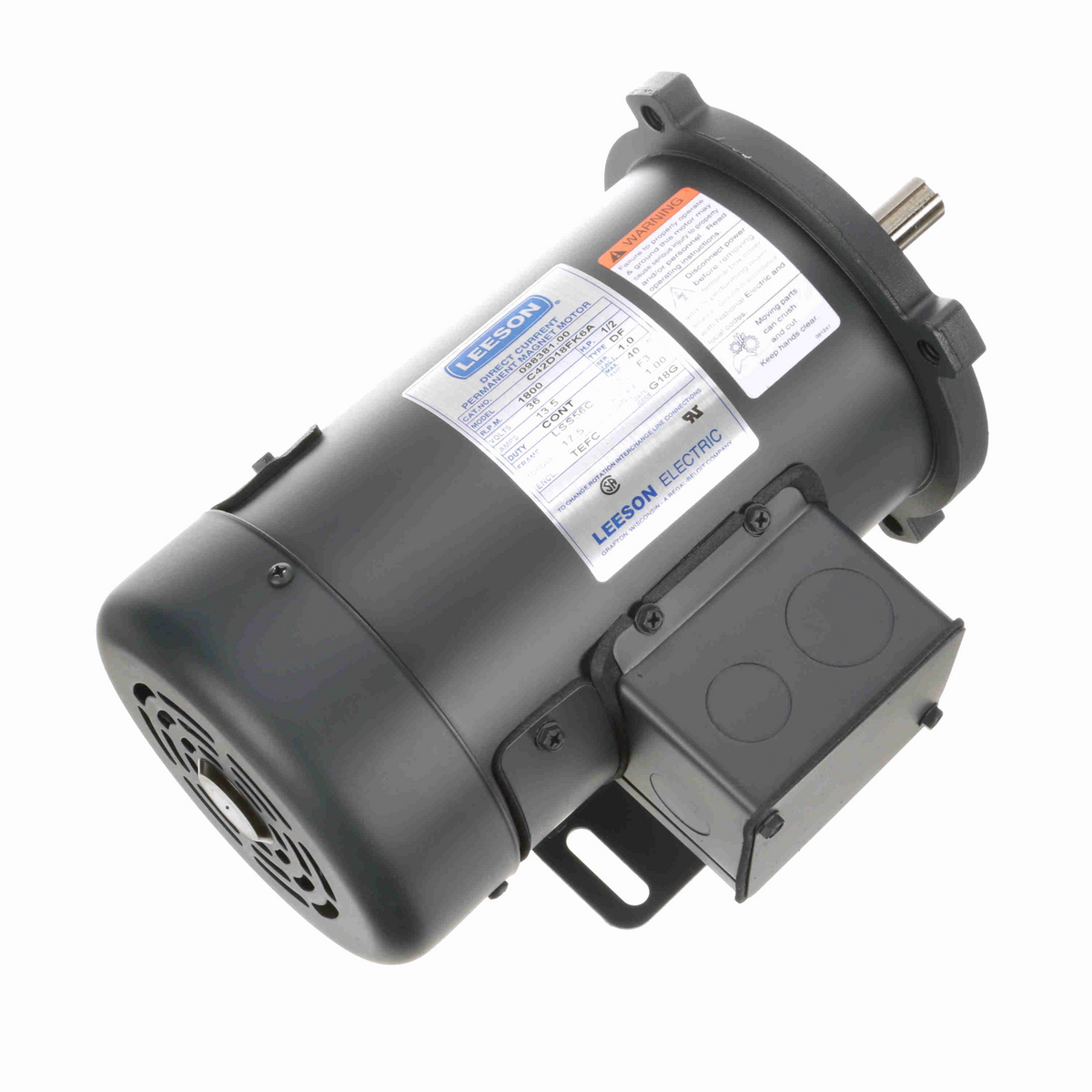

Leeson Electric 098381.00 42D18FK6 Direct Current DC Motor - Permanent Magnet - Low Voltage, Brushed, 1/2 hp hp, 36 V, 1800 rpm, TEFC (Totally Enclosed Fan Cooled), LSS56C Frame

Leeson Electric 098381.00 42D18FK6 Direct Current DC Motor - Permanent Magnet - Low Voltage, Brushed, 1/2 hp hp, 36 V, 1800 rpm, TEFC (Totally Enclosed Fan Cooled), LSS56C Framezoom

Attributes

Key Value
Amps13.5
Duty CycleContinuous
Efficiency74.1%
Enclosure TypeTEFC (Totally Enclosed .
Frame56C
HP1/2
Insulation ClassF
Maximum Ambient Tempera.40? C
Motor Shell Length6.50"
MountingC-Face/Rigid Base
Overall Length10.81"
PhaseDC
Product TypeDC
RotationReversible
RPM1800
Service Factor1.0
Shaft Diameter0.625"
Shaft Length2.06"
Ship Weight29 lbs.
Volts36VDC

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomemotorpro.com98381177.91In StockLeeson29.0177.9 @ 1
factorysupplyoutlet.comYV68TV809.01In StockLEESON809.0 @ 1
