Leeson Electric 98382

B08J7Z3YJW

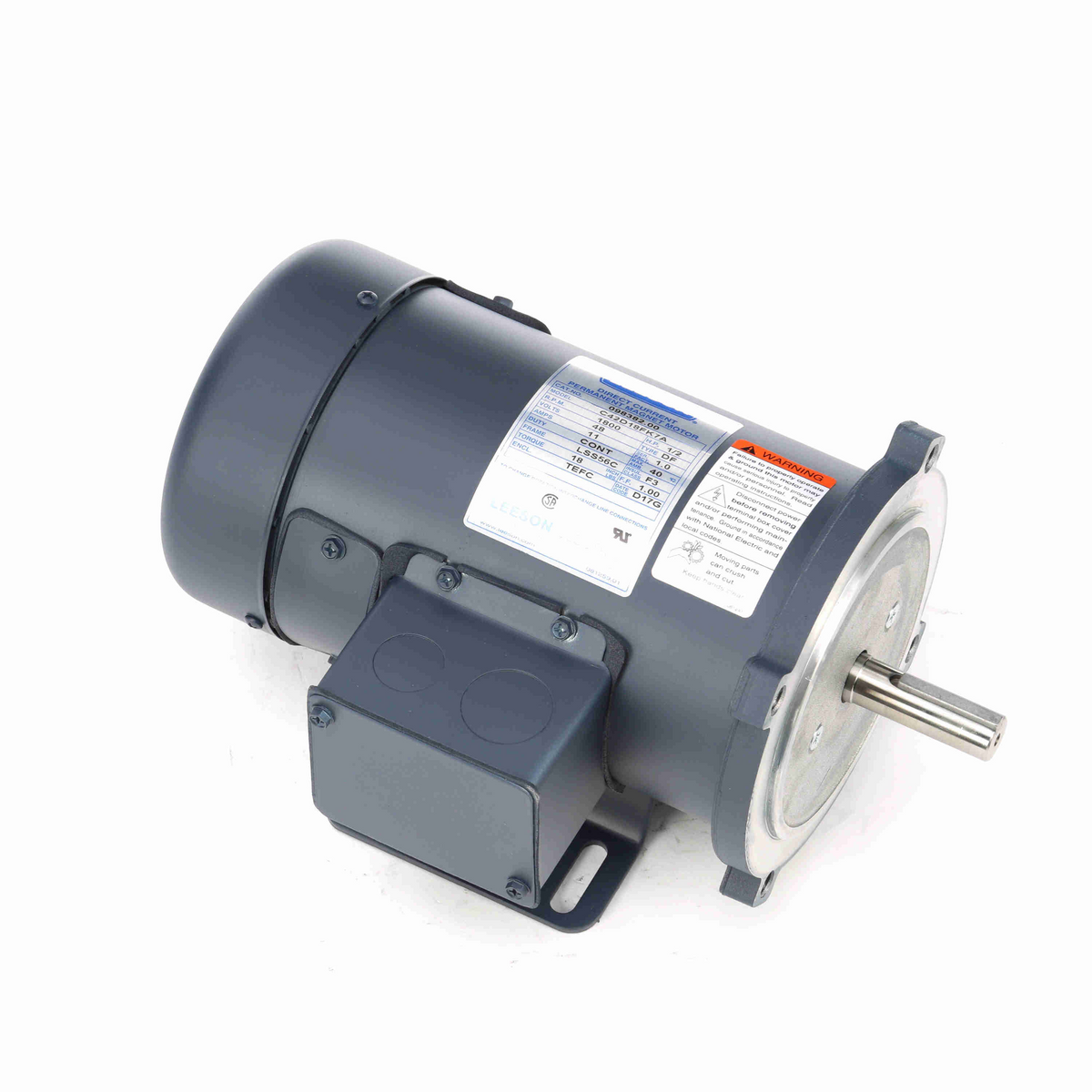

Leeson Electric 098382.00 Direct Current DC Motor - Permanent Magnet - Low Voltage, Brushed, 1/2 hp hp, 48 V, 1800 rpm, TEFC (Totally Enclosed Fan Cooled), LSS56C Frame

Leeson Electric 098382.00 Direct Current DC Motor - Permanent Magnet - Low Voltage, Brushed, 1/2 hp hp, 48 V, 1800 rpm, TEFC (Totally Enclosed Fan Cooled), LSS56C Framezoom

Attributes

Key Value
Amps11
Duty CycleContinuous
Efficiency76.5%
Enclosure TypeTEFC (Totally Enclosed .
Frame56C
HP1/2
Insulation ClassF
Maximum Ambient Tempera.40? C
Motor Shell Length6.50"
MountingC-Face/Rigid Base
Overall Length10.81"
PhaseDC
Product TypeDC
RotationReversible
RPM1800
Service Factor1.0
Shaft Diameter0.625"
Shaft Length2.06"
Ship Weight21 lbs.
Volts48VDC

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomemotorpro.com98382534.561In StockLeeson21.0534.56 @ 1
factorysupplyoutlet.comXW96HT781.751In StockLEESON781.75 @ 1
thumbzoomNational Supply NetworkB236801849.932In StockLEESON ELECTRIC849.93 @ 2
