Omron MKS3P-5 DC24

B0073UG3UG

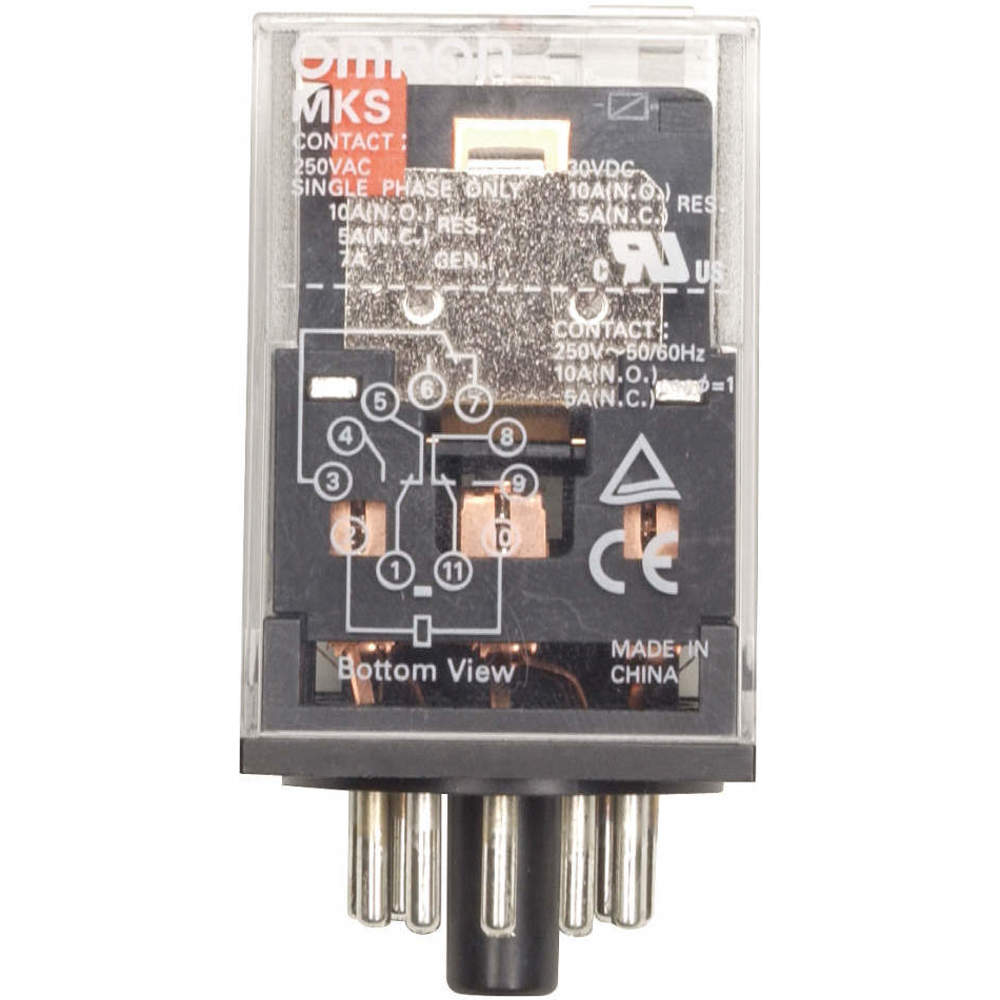

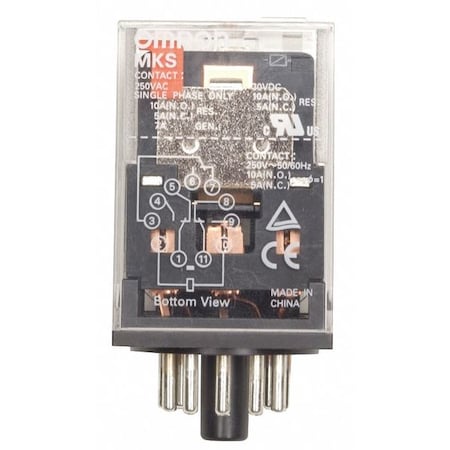

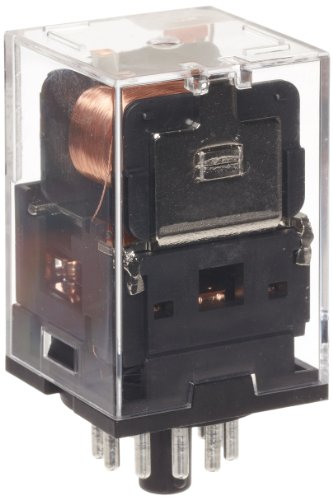

Omron MKS3P-5 DC24 General Purpose Relay with Mechanical Indicator, Basic Model Type, Plug-In Terminal, Standard Internal Connections, Triple Pole Double Throw Contacts, 55.8 mA Rated Load Current, 24 VDC Rated Load Voltage

Omron MKS3P-5 DC24 General Purpose Relay with Mechanical Indicator, Basic Model Type, Plug-In Terminal, Standard Internal Connections, Triple Pole Double Throw Contacts, 55.8 mA Rated Load Current, 24 VDC Rated Load Voltagezoom

Attributes

Key Value
AC Contact Rating - Rel.10 A @ 240V, 10A @ 240V
Alternate Mfr Part Numb.MKS3P5DC24
Alternate Part No.653-MKS3P-5DC24
Base Product NumberMKS3P
Base Type - Plug In Rel.Octal
Body Depth2.07 in
Body Depth - Relay1.36 in
Body Height1.36 in
Body Height - Relay2.07 in
Body Width1.36 in
Body Width - Relay1.36 in
BrandOmron, Omron Automation.
CategoryRelays
Coil Current55.8 mA
Coil Insulation-
Coil Resistance430 Ohms
Coil TerminationPlug Pin
Coil TypeNon Latching, Latching
Coil Voltage250 VAC, 24VDC, 24 VDC
Coil Volts24V DC
Contact Current Rating10 A
Contact Form3PDT (3 Form C), 3PDT
Contact Form - Relay3PDT
Contact MaterialSilver Tin Indium (AgSn.
Contact Rating10A @ 250VAC/30VDC
Contact Rating (Current)10 A
Control Voltage250
Current Rating10 A
Current Stock30
DC Contact Rating - Rel.10 A @ 28V, 10A @ 28V
DescriptionRELAY GEN PURPOSE 3PDT .
Detailed DescriptionGeneral Purpose Relay 3.
Digi-Key Part NumberZ6264-ND
FeaturesMechanical Indcator, Me.
Flat Pin WidthNot Applicable
Height52.5 mm
HP @ 120VNot Rated
HP @ 240VNot Rated
International ShippingNo
ItemGeneral Purpose Relay
Item - RelayGeneral Purpose Relay
Length34.5 mm
ManufacturerOmron, Omron Automation.
Manufacturer Part No.MKS3P-5 DC24
Manufacturer Product Nu.MKS3P-5 DC24
Manufacturer Standard L.29 Weeks
Maximum Switching Curre.10 A
MfrOmron Automation and Sa.
Mounting - RelayPlug In, Plug-In
Mounting StyleSocket
Mounting TypeSocket Mount, Socketable
MpnMKS3P5DC24
Must Operate Voltage19.2 VDC
Must Release Voltage3.6 VDC
Number of Pins - Relay11
Operate Time30 ms
Operating Temperature-40?C ~ 60?C
Overall Depth2.5 in
Overall Height - Relay2.50 in, 2.5 in
PackageBulk
Part StatusActive
Power Consumption1.4 W
Power Consumption - Rel.1.4 W
Primary TypePower Relays
ProductPower Relays
Product CategoryGeneral Purpose Relays
Product StatusActive
Push To TestNo
Relay TypeGeneral Purpose
Release Time20 ms
Seal Rating-
SeriesMK-S, MKS
SKUZO-G0943083
SocketMfr. No. PF113A-E
Socket Code - RelayB
StandardsUL, CE, TUV, RoHS Compl.
Status IndicatorMechanical Flag
SubCategoryElectrical
Switching Voltage250VAC, 30VDC - Max, 25.
TerminationPlug-In
Termination StylePlug Pin, Plug In, 11 P.
TypeIndicator
UPC4547648413800
Width34.5 mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomTMEMKS3P-5-24DC10.651In StockOMRON10.65 @ 1
Onlinecomponents.comMKS3P5DC2412.3914OMRON INDUSTRIAL12.39 @ 1
thumbzoomkempstoncontrols.co.ukMKS3P5 24DC13.6093231In StockOmron13.609323 @ 1
WaldomOMRON INDUSTRIAL PRODUCTS MKS3P5DC2414.02514OMRON INDUSTRIAL PRODUCTS14.02 @ 5
thumbzoomZoroG094308318.59141Omron0.218.59 @ 1
grainger.caWWG5EMJ018.812891521In StockOMRON0.218.81289152 @ 1
thumbzoomDigi-Key266320520.73135Omron Automation and Safety20.73 @ 1
us.rs-online.com7127576521.8213Omron Automation21.82 @ 1
thumbzoomsustainablesupply.comC120459021.921In StockOmron0.221.92 @ 1
Newark40AJ044222.691In StockOMRON ELECTRONIC COMPONENTS22.69 @ 1
Airline HydraulicsOMRON MKS3P-5 DC2423.651In StockOmron23.65 @ 1
thumbzoomsimsupply.comZO-G094308325.851In StockOmron25.85 @ 1
thumbzoomRaptor SuppliesAE3PTA30.5930431In StockOMRON30.593043 @ 1
Master ElectronicsMKS3P5DC2437.28158Omron Automation37.28 @ 1
thumbzoomswatee.comMKS3P-5 DC2438.412Omron38.4 @ 1
KeleMKS3P-5-DC2453.311In StockOmron53.31 @ 1
