- mpnDNFR14-250B-L
- brandname: Panduit
- manufacturername: Panduit

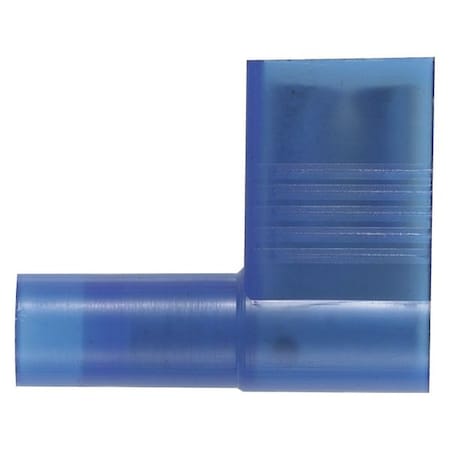

Panduit DNFR14-250B-L Female Disconnect, Right Angle, Nylon Insulated, 16 - 14 AWG, .250 by .032-Inch Tab Size, Blue (50-Pack)
- Brand: Panduit
- PartNumber: DNFR14-250B-L
- Model: DNFR14-250B-L
- Color: Blue
- Size: .250 x .032 Tab Size
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Panduit
- Label: Panduit
Attributes
| Key | Value |
|---|
| Allowable Gauge Range | 16 - 14 |
| Angle | Right Angle |
| Approvals | CSA, UL |
| AWG Range | #14 |
| Base Product Number | DNFR14 |
| Brand | Pan-Term? |
| Category | Connectors, Interconnec. |
| Color | Blue |
| Color Family | Blue |
| Contact Finish | Tin |
| Contact Material | Brass |
| Country of Origin | MX - Mexico |
| Country of Origin (subj. | Mexico |
| Description | CONN QC RCPT 14-16AWG 0. |
| Detailed Description | 0.250" (6.35mm) Quick C. |
| Digi-Key Part Number | 298-14388-ND |
| ECCN | EAR99 |
| Family Series | Panduit Terminals, Pan-. |
| Features | - |
| Finish | Tin-Plated |
| Gender | Female |
| Gross Weight | 0 lbs |
| Height | 0.2 in. |
| Insulated | Insulated |
| Insulation | Fully Insulated |
| Insulation Diameter | 0.155" (3.94mm) |
| Insulation Material | Nylon |
| Insulation Type | Nylon |
| Item | Female Disconnect,Nylon. |
| Item Number | DNFR14-250B-L |
| Length - Overall | - |
| Manufacturer | Panduit Corp, Panduit |
| Manufacturer Part Number | DNFR14-250B-L |
| Manufacturer Product Nu. | DNFR14-250B-L |
| Manufacturer Standard L. | 9 Weeks |
| Material | Brass, Brass, Nylon |
| Max Temp | 221 ?F |
| Mfr | Panduit Corp |
| Mounting Type | Free Hanging (In-Line),. |
| Net Weight | 0 lbs |
| Package | Bulk |
| Package Quantity | 50 |
| Packaging | 50 per Package |
| Plating Material | Tin |
| Product Series | Pan-Term Disconnects |
| Product Status | Active |
| Rated Voltage | 600V |
| RoHS Compliant | Yes |
| Series | Pan-Term?, Pan-Term Ser. |
| Tab Length | - |
| Tab Size | 0.25 x 0.032 " |
| Tab Thickness | 0.032" (0.81mm) |
| Tab Width | 0.250" (6.35mm) |
| Terminal Material | Brass |
| Terminal Type | Disconnect - Female, An. |
| Termination | Crimp |
| Type | Right Angle, Disconnect. |
| UNSPSC | 39121409 |
| UPC Code | 074983124572 |
| Use With | CT-300-1 |
| Volts | 600 V |
| Width | 0.63 in. |
| Wire Gauge | 14-16 AWG |
| Wire Size | 16-14 AWG, 14-16 AWG |
| Wire Size (AWG) | 14 AWG, 15 AWG, 16 AWG |
| Wire Strip Length | 0.281 " |
