PICKER PC7150-1A-C2-12C-RN-X

B074XK2CRJ

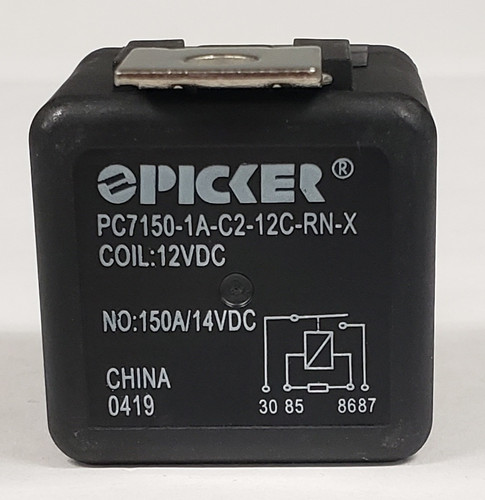

PC7150-1A-C2-12C-RN-X | 4 Pin SPST-NO 12VDC Coil 150/100 Amp 75 VDC Maxi ISO Automotive Plug-in Relay with Metal Bracket and Resistor

PC7150-1A-C2-12C-RN-X | 4 Pin SPST-NO 12VDC Coil 150/100 Amp 75 VDC Maxi ISO Automotive Plug-in Relay with Metal Bracket and Resistorzoom

Attributes

Key Value
CategoryRelays
Coil Current258 mA
Coil Power3.2W
Coil Resistance47 Ohms
Coil TypeNon Latching
Coil Voltage12VDC
Contact FormSPST-NO (1 Form A)
Contact MaterialSilver Tin Oxide (AgSnO)
Contact Rating (Current)150 A
DescriptionRELAY AUTOMOTIVE SPST 1.
Digi-Key Part Number2634-PC7150-1A-C2-12C-R.
FeaturesResistor
ManufacturerPicker Components
Manufacturer Product Nu.PC7150-1A-C2-12C-RN-X
Manufacturer Standard L.14 Weeks
MfrPicker Components
Mounting TypeChassis Mount
Must Operate Voltage7.8 VDC
Must Release Voltage1.2 VDC
Operate Time7 ms
Operating Temperature-40?C ~ 125?C
PackageBag
Product StatusActive
Release Time2 ms
Series-
Switching Voltage75VDC - Max
Termination StyleQuick Connect - Multipl.

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomSpemcoPC7150-1A-C2-12C-RN-X10.251388Picker Components10.25 @ 1
thumbzoomDigi-Key1235282513.561370Picker Components13.56 @ 1
