ZB6EG0B

B011OMHNKC

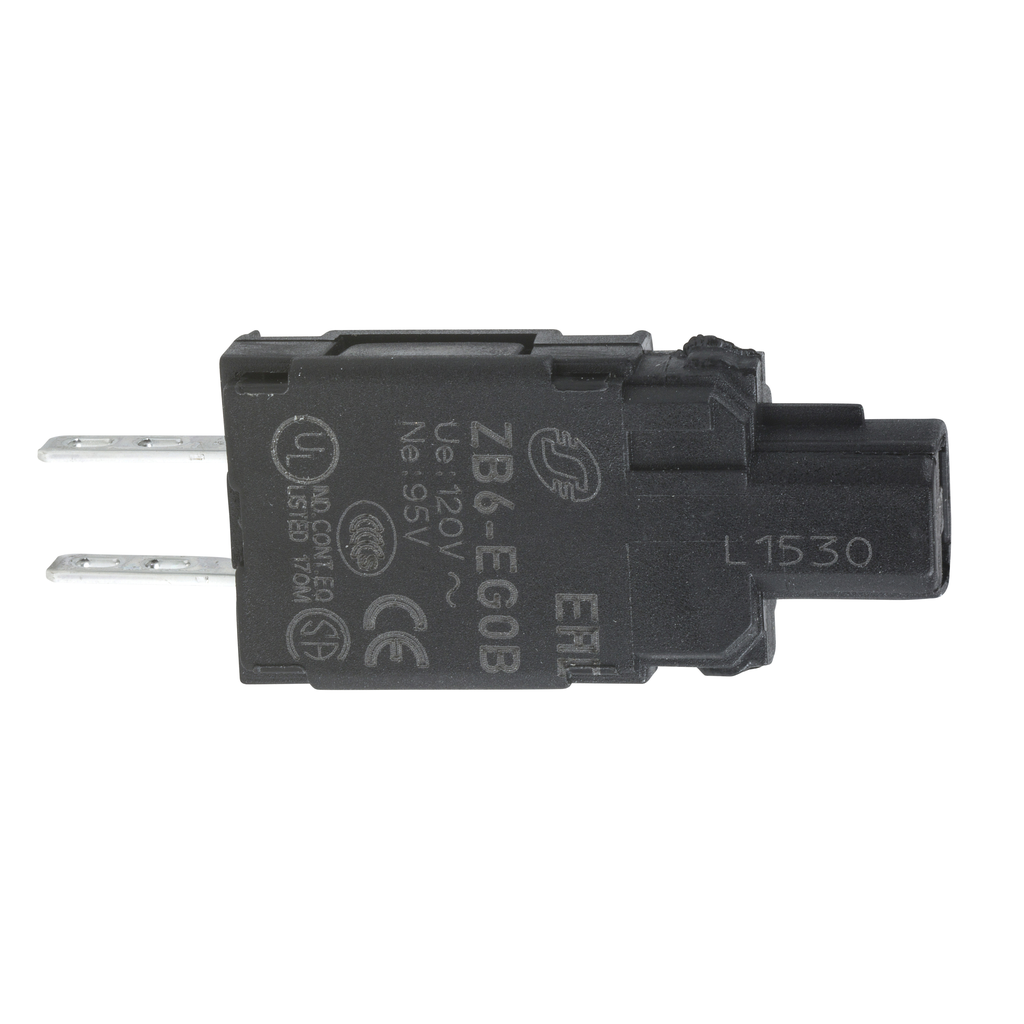

SCHNEIDER ELECTRIC ZB6EG0B 16MM LT MOD

SCHNEIDER ELECTRIC ZB6EG0B 16MM LT MODzoom

Attributes

Key Value
[Ui] Rated Insulation V.250 V 2)EN/IEC 60947-1
[Uimp] Rated Impulse Wi.4 kV EN 60947-1
[Us] Rated Supply Volta.120 V AC
Ambient Air Temperature.-25-70 ?C
Ambient Air Temperature.-40-70 ?C
BrandSchneider Electric
Bulb BaseBA 9s
California Proposition .Lead and lead compounds.
Catalog NumberZB6EG0B
CategoryOptoelectronics
China Rohs RegulationX
Circularity ProfileENVEOLI1710010EN
ConnectionFaston connectors 2.8 x.
Connections - TerminalsFaston connectors 2.8 x.
Contact Form(X1-X2)PL
Country of OriginSpain
Current-
DescriptionCOMPLETE BODY FOR PILOT.
Detailed DescriptionNeon Panel Indicator 12.
Device Short NameZB6
Digi-Key Part Number4008-ZB6EG0B-ND
Electrical Shock Protec.class II IEC 61140
Environmental DisclosureENVPEP1710010EN
Eu Rohs DirectivePro-active compliance (.
Features-
IndicatorBA 9S,NEON (BULB NOT IN.
Ingress Protection-
Insulation250 V 2)EN/IEC 60947-1
Item16Mm Lt Mod 65168008
Item Typecomplete body for pilot.
Lamp Color-
Lamp TypeNeon
Lens Color-
Lens Size-
Lens Style-
Lens Transparency-
Light Block Supplywith resistor
Light Sourceneon (bulb not included)
Made in USANo
ManufacturerSchneider Electric
Manufacturer Product Nu.ZB6EG0B
Manufacturer Standard L.1 Weeks
Mercury FreeYes
MfrSchneider Electric
Millicandela Rating-
Net Weight0.003 kg
Operating Positionany position
Operating Temperature-25-70 A Degrees C
PackageBox
Package Quantity1
Panel Cutout Dimensions-
Panel Cutout Shape-
Product CertificationsCSA || CCC || UL || GOST
Product Or Component Ty.complete body for pilot.
Product StatusActive
Protective TreatmentTC
Range Of ProductHarmony XB6
RatingsAC
Reach RegulationReference contains Subs.
Rohs Exemption Informat.Yes
Sale Per Indivisible Qu.5
SeriesHarmony ZB6
Shock Resistance30 gn 18 ms) half sine .
Signalling Typesteady
Size16MM
Special Featurescomplete body for pilot.
Standard+/- 3 MM 2-500 HZ)IEC 6.
StandardsEN/IEC 60947-5-1 || JIS.
Sub BrandZB6
Sustainable Offer StatusGreen Premium product
Terminal ConnectionFaston Connector
Terminals Description I.(X1-X2)PL
Termination StyleQuick Connect - 0.110" .
TypeSteady Signal, Neon
UPC785901363637
Vibration Resistance+/- 3 mm 2-500 Hz)IEC 6.
Viewing Angle-
Voltage120V, 120V AC
Voltage Rating120 V AC
Warranty18 months
Warranty DescriptionContractual Warranty:18.
Wavelength - Peak-
WeeeThe product must be dis.

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoommayerelectric.comSQDZB6EG0B7.941In StockSQUARE D0.00667.94 @ 1
thumbzoomZoroG312541612.591In StockSchneider Electric0.0112.59 @ 1
thumbzoomsustainablesupply.comC303922920.181In StockSchneider Electric0.0120.18 @ 1
AmazonSCB011OMHNKC23.591In StockSCHNEIDER ELECTRIC23.59 @ 1
thumbzoomDigi-Key1660673924.7615Schneider Electric24.76 @ 1
thumbzoomcrescentelectric.com8953936.121In StockSchneider Electric36.12 @ 1
