SharkBite 22304-0000LF

mpn22304-0000LF
brandname: Sharkbite
manufacturername: Sharkbite

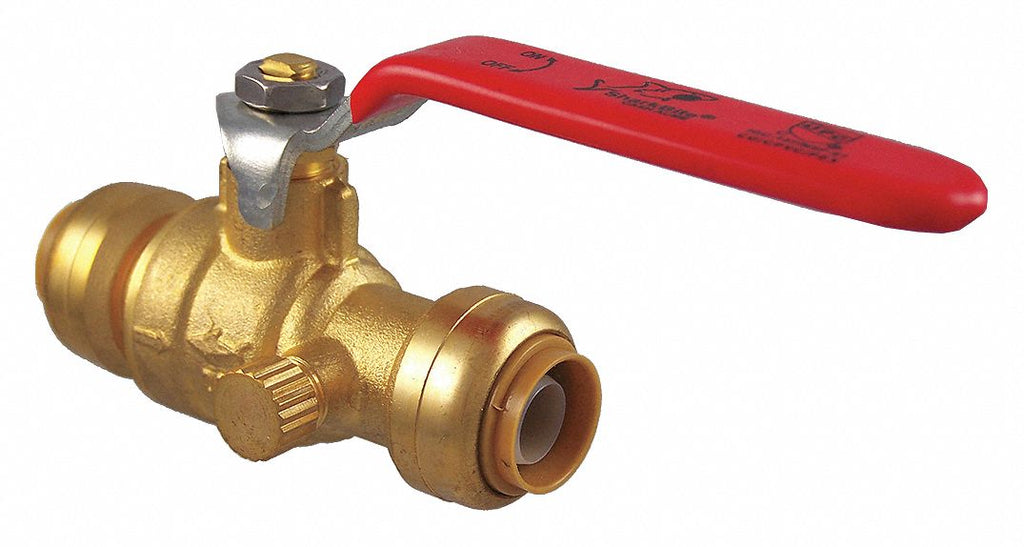

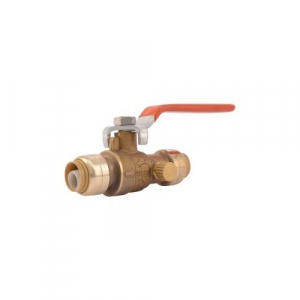

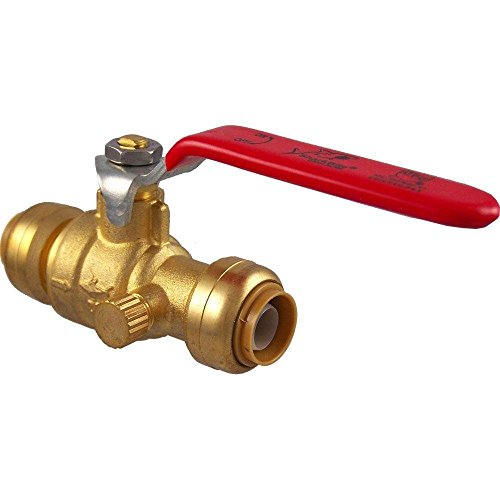

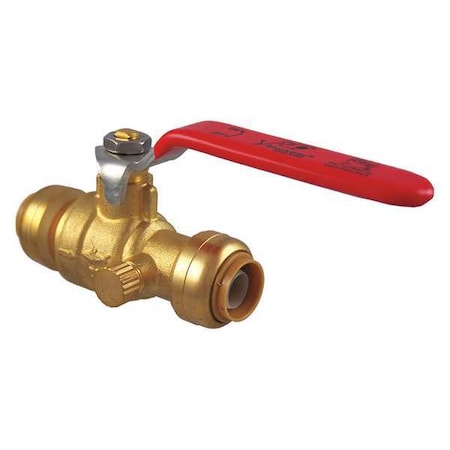

Brass Ball Valve Inline 1/2"

Brass Ball Valve Inline 1/2"

zoom

Brand: SharkBite
PartNumber: 22304-0000LF
Model: 22304-0000LF
Color: Brass
PackageQuantity: 1
Binding: Misc.
Manufacturer: SHARKBITE
Label: SHARKBITE

Attributes

Key	Value
Ball	Brass, chrome plated
Ball Material	Lead Free Brass
Ball Valve Basic Body M.	Brass
Ball Valve Product Group	Manual
Body	DZR Lead Free Brass
Body End Retainer	Brass
Body Material	Lead-Free Brass
Body Seal Material	EPDM
Body Style	Inline
Brand	Sharkbite
Compliance	IGC-157/NSF-62
Connection Type	Push x Push
Country of Origin	China
Country of Origin (subj.	China
Features	Drain
General Connection Type	Push
Grab Ring	Stainless steel
Handle	Zinc Plated Steel
Handle Material	Zinc Plated Steel
Handle Nut	Zinc Plated Steel
Handle Type	Lever
Height	1.500
Hose I.D.	1/2 in
Inlet Size	1/2"
Inlet Type	Push-To-Connect
Item	Ball Valve
Length	3.900
Manufacturer Model No	23336-0000LF
Manufacturer Name	Reliance Worldwide
Max. Pressure	200 psi CWP
Max. Steam Pressure	200 psi WSP
Maximum pressure	200 psi
Maximum temperature	200?F (water)
Nominal Fitting Connect.	1/2"
O-ring	EPDM
Outlet Size	1/4"
Package Quantity	1
Packing	PTFE
Packing Nut	Brass
Pipe Size	1/2"
Port	Standard
Product Type	Ball Valve
Seat Material	PTFE
Seat Ring	PTFE
Service	Water
Size Measure	IN
Standards	cUPC, IAPMO, IPC, UPC
Stem	Brass
Stem Material	Lead Free Brass
Stem Type	Blowout Proof
Stop Valve Type	Quarter Turn
Temp. Range	0 Degrees to 200 Degre.
Tube Size	1/2"
Tube support liner	Veradel
UNSPSC	40141607
UPC	697285606784
UPC Code	697285606784
Valve Structure	2-Piece
Weight	0.250
Weight Measure	LB
Width	3.900

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	HD Supply	400544	13.99	1	12		Sharkbite	0.25	13.99 @ 12
	Home Depot	202831909	17.29	1	12		SharkBite		17.29 @ 12
	Zoro	G6467955	19.46	1	12		Sharkbite	0.55	19.46 @ 12
	usmegastore.com	22304-0000LF	22.05	1	12		Sharkbite		22.05 @ 12
	heavydutydepot.com	22304-0000LF	22.05	1	12		Sharkbite		22.05 @ 12
	sustainablesupply.com	C1934051	31.31	1	12		Sharkbite	1.0	31.31 @ 12
