TB Woods 904C

B004KA9ZV6

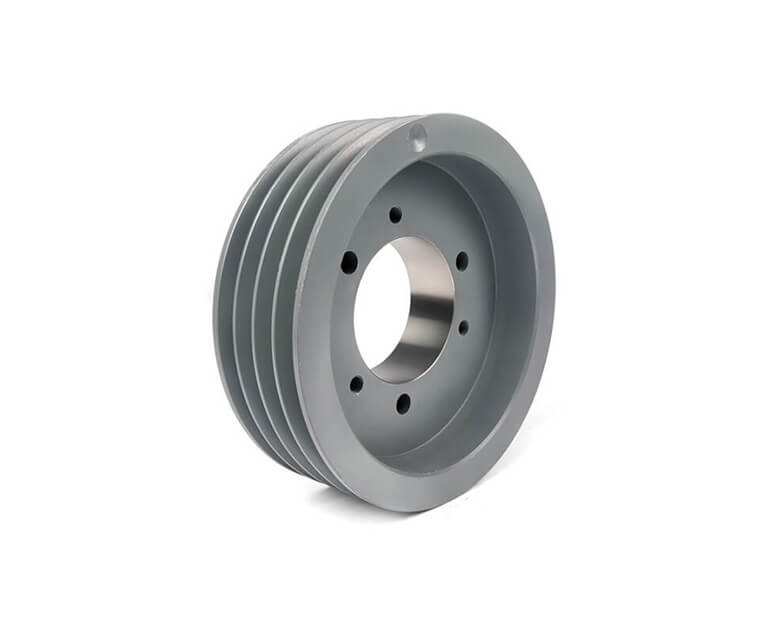

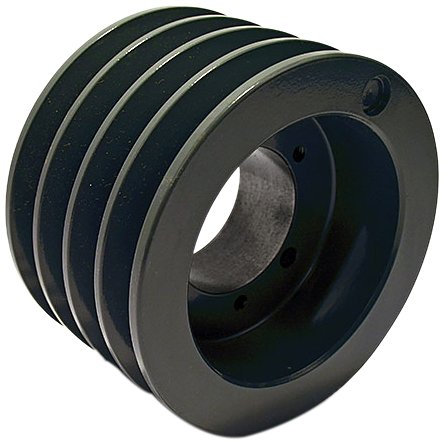

TB Woods 904C Classical V-Belt Sheave, C Belt Section, 4 Grooves, E Bushing required, Cast Iron, 9.40" OD

TB Woods 904C Classical V-Belt Sheave, C Belt Section, 4 Grooves, E Bushing required, Cast Iron, 9.40" ODzoom

Attributes

Key Value
BalanceStandard, 1 plane
Belt sectionC
Belt Section and Type (.C Banded, C Classical, .
Bore TypeBushed
Bore typeQuick disconnect bushing
BushingE
Bushing RequiredE
C or CX Belt Pitch Dia.9.0 in
C Pitch Diameter9.4 in
Component WR2 (lbs ft2)2.77
ConstructionSolid
Country of Origin (subj.Multiple
Datum diameter9
Dimension2.63
Dimension (E)1.09
Dimension (L)2.63
Dimension (M)0.66
Face Diameter9.4 in
Face width4.38
Face Width4.38 in
Face width (in)4.38
Fits Shaft Dia.7/8 in to 3-1/2 in
For Belt FamilyClassical Cogged, Class.
For Belt Section (broad.C or CX
For Belt Trade SizeC, CX
For Bushing SizeE
For Bushing TypeQuick Detachable
For V-Belt SectionC, CX
For V-Belt TypeBanded, Classical, Cogg.
Groove cross section se.C
Hub location2
Hub location (in)2.00
I.D.7.25
Industry Number904C
Inertia WR?239
Inside diameter (in)7.25
ItemStandard V-Belt Pulley
Length through Bore2 5/8 in
MaterialCast Iron
Material FabricationCast
Material typeCI
Max RPM2660
Maximum Bore Diameter3 1/2 in
Minimum Bore Diameter7/8 in
Number of Grooves4
Number of grooves4
Number of Steps4
O.D.9.4
Outside Diameter9.4 in
Outside diameter (in)9.40
Overall Width4 3/8 in
Pitch diameter9.4
Pitch Diameter9.4 in
Pitch Diameter for V-Be.C: 9.4 in
Pulley Bore TypeQuick Detachable Bushed.
Pulley ConstructionPlain
Pulley MaterialCast Iron
Pulley Outside Dia.9.4 in
Pulley TypeStandard V-Belt Pulley
RPM upper limit2660
Set Screw IncludedNo
StandardsISO 9001:2015
Weight31 lb

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG3141677189.191In Stock26Tb Woods30.35189.19 @ 1
thumbzoomNational Supply Network82246497278.171In StockTB Wood's278.17 @ 1
thumbzoomGuardian82246497318.571In StockTB Wood's318.57 @ 1
Grainger5YKN7332.0120TB WOOD'S332.0 @ 1
thumbzoomMRO Supply347660378.451In StockTB Woods378.45 @ 1
us.rs-online.com73931405419.851In StockTB Wood's (Altra)419.85 @ 1
thumbzoomRaptor SuppliesAE7HTA544.69695151In StockTB WOODS544.6969515 @ 1
thumbzoombscsource.com82246497662.191In StockTB Wood's662.19 @ 1
