TE Connectivity 4-1393789-3

B00KSPV34E

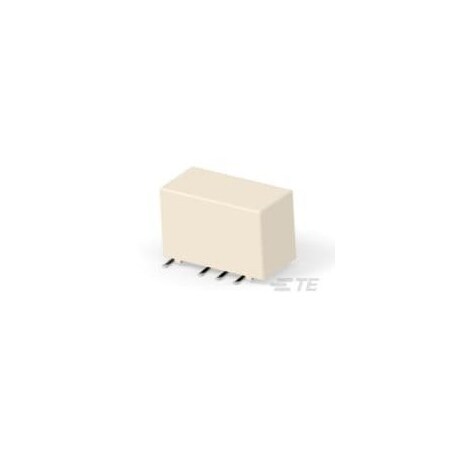

TE Connectivity Part Number 4-1393789-3

TE Connectivity Part Number 4-1393789-3zoom

Attributes

Key Value
Accessory TypeMounting Clips
Actuating SystemDC
Additional FeaturesLong Terminals
Alternate Mfr Part Numb.V23079D2001B301
Base Product NumberV23079
Body Depth - Relay0.575 in
Body Height - Relay0.39 in
Body Width - Relay0.283 in
CategoryRelays
Coil Current28 mA
Coil Insulation-
Coil Magnetic SystemMonostable, DC, Polariz.
Coil Power Rating (DC)602
Coil Power Rating Class100 ? 150 mW
Coil Resistance178 Ohms, 178
Coil Special FeaturesOvermolded Coil
Coil TypeNon Latching, Monostabl.
Coil Voltage5VDC
Coil Voltage Rating6
Coil Volts6V AC
Contact Arrangement2 Form C (CO)
Contact Current Class0 ? 2 A
Contact Current Rating2 A, 2
Contact FormDPDT (2 Form C)
Contact Form - Relay2 Form C (CO)
Contact Limiting Breaki.2, 2A
Contact Limiting Contin.2
Contact Limiting Making.2
Contact Limiting Short-.2
Contact MaterialAgNi+Au, Silver Nickel .
Contact Number of Poles2
Contact Plating MaterialGold
Contact Rating2A
Contact Rating (Current)2 A
Contact Special FeaturesBIFURCATED/Twin Contacts
Contact Switching Load .10mA @ .2V
Contact Switching Volta.250, 220
Contact Voltage Rating300, 250, 220 VDC, 250 .
Current Rating2 A
DescriptionRELAY GEN PURPOSE DPDT .
Detailed DescriptionGeneral Purpose Relay D.
Dielectric Voltage1000 Vrms Adjacent Cont.
Digi-Key Part NumberPB1082TR-ND - Tape & Re.
Electrical Connection -.Surface Mount
Environmental Ambient T.85??C?[?85??F?]
Environmental Ambient T.70 ? 85?C
Environmental Category .RTIII
FeaturesLong Terminals; Overmol.
Height9.9?mm?[?.39?in?]
Height Class (Mechanica.9 ? 10 mm
Insulation Clearance.051 in
Insulation Clearance Be.1.3?mm?[?.051?in?]
Insulation Clearance Cl.0 ? 2.5
Insulation Creepage.098 in
Insulation Creepage Bet.2.5?mm?[?.098?in?]
Insulation Creepage Cla.1.5 ? 3
Insulation Initial Diel.1000
Insulation Initial Diel.1000 V ? 1500 VA
Insulation Initial Diel.1500
Insulation Initial Diel.1000
Insulation Initial Resi.1000
Insulation Special Feat.2500V Initial Surge Wit.
Item - RelayP2 V23079 Relay
Length14.6?mm?[?.575?in?]
Length Class (Mechanica.14 ? 16 mm
ManufacturerTE Connectivity Potter .
Manufacturer Product Nu.V23079D2001B301
Manufacturer Standard L.14 Weeks
MfrTE Connectivity Potter .
Mounting TypePrinted Circuit Board, .
Must Operate Voltage3.75 VDC
Must Release Voltage0.5 VDC
Number of Poles2
Operate Time4 ms
Operating Temp. Range-40 to 85?C
Operating Temperature-40?C ~ 85?C
Operating Temperature R.-40 ? 85
PackageTape & Reel (TR)
Packaging MethodReel
Performance TypeHigh Dielectric
Power Consumption140
Power Consumption - Rel.140 mW
Product StatusActive
Product TypeRelay, Accessory
Protection CategoryRTIII
Relay StyleP2 V23079 Relay
Relay TypeP2 Relay V23079, Genera.
Release Time4 ms
Seal Rating-
SeriesV23079, AXICOM
Switching Current10mA @ .2V
Switching Voltage250 VAC, 220 VDC, 250VA.
Terminal TypePCB-SMT
Termination StyleGull Wing
Termination TypeSurface Mount
Voltage Standing Wave R.1.04 @ 100MHz, 1.4dB @ .
Weight2.8?g?[?.0988?oz?]
Width7.2?mm?[?.283?in?]
Width Class (Mechanical)6 ? 8 mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
us.rs-online.com712106451.811941TE Connectivity1.8 @ 50
thumbzoomTMEV23079D2001B3011.83150TE Connectivity1.83 @ 50
WaldomTE CONNECTIVITY POTTER-BRUMFIELD V23079D2001B3011.9840064800TE CONNECTIVITY / POTTER-BRUMFIELD1.98 @ 400
Future Electronics40214242.4484002800TE Connectivity2.448 @ 400
Onlinecomponents.comV23079D2001B3012.712837TE Connectivity / P&B Brand2.7 @ 50
thumbzoomNewark03P25772.761537AXICOM - TE CONNECTIVITY2.76 @ 50
TE Connectivity4-1393789-33.375911625TE Connectivity (TE)3.3759 @ 50
thumbzoomDigi-Key16339683.591121023TE Connectivity Potter & Brumfield Relays3.591 @ 50
RS Delivers515-5654.3811841TE Connectivity4.38 @ 50
AmazonTPB00V3U7SW4988.521505T-E Connectivity988.52 @ 50
thumbzoomZoroG2010341771276.0150Te Connectivity1276.0 @ 50
