Potter & Brumfield OAC-15

mpnOAC-15
brandname: TE Connectivity / P&B Brand
manufacturername: TE Connectivity / P&B Brand

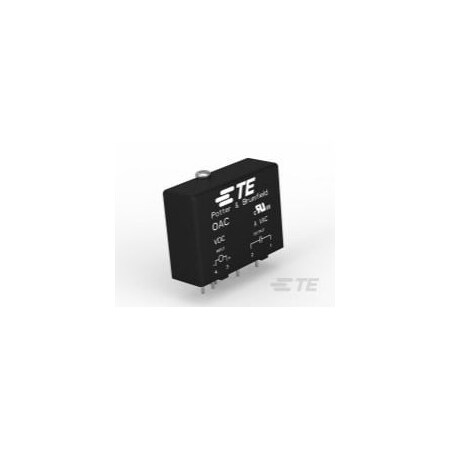

OAC-15 Potter And Brumfield 831803 Relay 120 VAC Lot of 2

OAC-15 Potter And Brumfield 831803 Relay 120 VAC Lot of 2

zoom

Brand: Potter & Brumfield
PartNumber: OAC-15
Manufacturer: POTTER & BRUMFIELD
Label: POTTER & BRUMFIELD

Attributes

Key	Value
Alternate Mfr Part Numb.	2-1393028-3
Alternate Part No.	655-OAC-15
Base Product Number	OAC
Brand	TE Connectivity / P&B
Case Colour	Black
Category	Relays
Color	Black
Connection to Host	Circuit Board
Country of Origin (subj.	Mexico
Current - Input	16 mA
Current - Output	3A
Depth	0.157 in
Dimensions	43.18 x 31.8 x 15.2 mm
Features	Hold Down Screw
For Use With	2IO Series Mounting Boa.
Input Current	16 mA
Input Resistance	1000 Ohms (Typ.) Ohms
Input Voltage	15 VDC
Insulation Resistance	100 MegaOhms
Isolation	4000 V
Isolation Voltage	4000 VAC
Leakage Current	1 mA (RMS) (Max.) @ 120.
Length	1.7 in
Manufacturer	TE Connectivity
Manufacturer Part No.	OAC-15
Maximum Operating Tempe.	+80 ?C
Mfr	TE Connectivity Potter .
Minimum Operating Tempe.	-30 ?C
Module Type	Control
Mounting Type	PCB Mount
Number of Channels	1
Number of IO Ports	1
Operating Temperature	?30 to +80 ?C
Operating Voltage	9 V
Output Current	3 A
Output Device	AC
Output Type	Digital
Output Voltage	24 VAC to 280 VAC
Package	Tray
Part # Aliases	2-1393028-3
Primary Type	Module
Product Category	I/O Modules
Product Status	Active
Product Type	DC Input Modules
Range Output	24 to 280 VAC
Series	OAC Series, OAC
Special Features	Optical Isolation
Standards	UL Recognized, CSA Cert.
Style	Standard
Supply Voltage	18 VDC
Temperature Operating R.	-30 to +80 ?C
Termination Style	PC Terminals
Turn Off Time	8.3 ms (Max.), 8.33ms
Turn On Time	8.3 ms, 8.33ms
Type	Output, AC Output Module
Voltage - Input	15VDC
Voltage - Output	12 ~ 120VAC
Width	0 in

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	us.rs-online.com	70199324	12.44	200	2		TE Connectivity		12.44 @ 200
	Allied Electronics	71210429	13.07	1	2		TE Connectivity		13.07 @ 2
	Waldom	TE CONNECTIVITY POTTER-BRUMFIELD OAC-15	15.69	200	4		TE CONNECTIVITY / POTTER-BRUMFIELD		15.69 @ 200
	Digi-Key	813767	16.90335	200	2	138	TE Connectivity Potter & Brumfield Relays		16.90335 @ 200
	Newark	18M9253	18.29	200	2		POTTER&BRUMFIELD - TE CONNECTIVITY		18.29 @ 200
	Zoro	G100979616	19.26	100	2		Te Connectivity		19.26 @ 100
	swatee.com	OAC-15	29.63	1	237		TE Connectivity		29.63 @ 2
	Onlinecomponents.com	OAC-15	40.2	1	82		TE Connectivity / P&B Brand		40.2 @ 2
