TE Connectivity RTD14012

B00M2F36PM

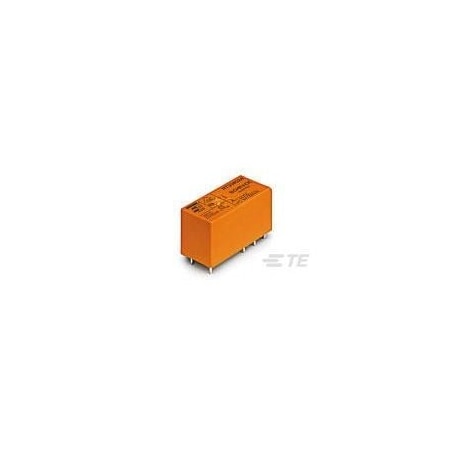

TE CONNECTIVITY RTD14012 Power Relay, RT1 Series, SPDT, 12 VDC, 16 A, Through Hole (1 Piece)

TE CONNECTIVITY RTD14012 Power Relay, RT1 Series, SPDT, 12 VDC, 16 A, Through Hole (1 Piece)zoom

Attributes

Key Value
Body Depth - Relay1.142 in
Body Height - Relay0.618 in
Body Width - Relay1/2 in
CategoryUncategorized
Coil Resistance360 ?
Coil TypeMonostable, DC, DC Coils
Coil Voltage12 VDC
Coil Volts12V DC
Contact Current Rating16 A
Contact FormSPDT
Contact Form - Relay1 Form C (CO)
Contact Limiting Breaki.16 A
Contact Limiting Contin.16 A
Contact Limiting Making.30 A
Contact MaterialAgNi90/10, Silver Nickel
Contact Rating16 A
Contact TerminationPCB
Contact Voltage Rating250 VAC
Control Voltage12
Current Rating16 A
DescriptionPower/Signal Relay, 1 F.
Dielectric Voltage5000 Vrms Coil and Cont.
Digi-Key Part Number2266-RTD14012-ND
Factory Pack Quantity20
FeaturesUL Coil Insulation Clas.
In-stock3300
Insulation Clearance.394 in
Item - RelayStandard Power Relay
ManufacturerTE Connectivity
Manufacturer Product Nu.RTD14012
MfrTE Connectivity
Mounting StyleThrough Hole
Mounting TypeSocket, Printed Circuit.
Number of Poles1
Operating Temp. Range85?C
PackageBulk
Package/CaseDIP
Part # Aliases6-1393238-2
Power Consumption400 mW
Power Consumption - Rel.400 mW
Primary TypePower Relays
Product CategoriesGeneral Purpose / Indus.
Product StatusActive
Protection CategoryRTIII
Relay TypeElectromechanical
RoHs StatusRohs
SeriesRT, *, RTD Series
Switching Voltage400 VAC
Terminal TypePCB-THT, Plug-In

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
WaldomTE CONNECTIVITY POTTER-BRUMFIELD RTD140122.17251764TE CONNECTIVITY / POTTER-BRUMFIELD2.17 @ 25
thumbzoomComponent Electronics710-12V-1382.31143Tyco Electronics2.31 @ 1
Onlinecomponents.comRTD14-0122.414078TE Connectivity / P&B Brand2.4 @ 1
Future Electronics75851692.7616014TE Connectivity2.76 @ 1
Newark36AC63922.94251920AMP - TE CONNECTIVITY2.94 @ 25
thumbzoomTMERTD140123.351349TE Connectivity3.35 @ 1
thumbzoomDigi-Key188667993.38252385TE Connectivity3.38 @ 25
us.rs-online.com704688103.74126TE Connectivity3.74 @ 1
RS Delivers198-69774.2128TE Connectivity4.2 @ 1
AmazonTPB00M2F36PM10.591432TE CONNECTIVITY10.59 @ 1
thumbzoomebay.com_plccenterRTD1401216.9143TE Connectivity16.9 @ 1
thumbzoomZoroG70102575086.7143Te Connectivity86.7 @ 1
