TE Raychem RTE25012

B07NQTN2YC

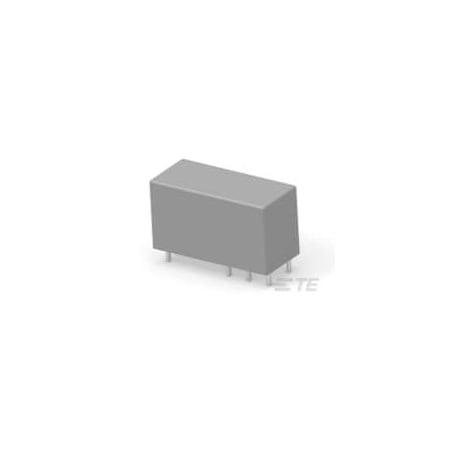

TE Raychem Connector

TE Raychem Connectorzoom

Attributes

Key Value
AC contacts rating @R8A / 250V AC
Alternate Mfr Part Numb.6803953
Alternate Part No.655-RTE25012
Body dimensions29x12.7x15.7mm
BrandTE Connectivity / Schra.
CategoryUncategorized
Coil Current33.3 mA
Coil Magnetic SystemMonostable, DC
Coil power consumption400mW
Coil Power Rating Class300 ? 400
Coil Power Rating DC400
Coil Resistance360, 360 Ohms
Coil resistance360?
Coil Special FeaturesUL Coil Insulation Clas.
Coil Voltage12 V
Coil voltage min.8.4V DC
Coil Voltage Rating12
Contact Arrangement2 Form C (CO)
Contact Current Class5 ? 10, 16
Contact current max.8A
Contact Current Rating8 A
Contact Current Rating .8
Contact FormDPDT, DPDT (2 Form C)
Contact Limiting Breaki.8
Contact materialAgNi 90/10 Au
Contact MaterialAgNi90/10, Silver Nickel
Contact Number of Poles2
Contact Switching Volta.400
Contact Voltage Rating250, 300 VDC
Contacts configurationDPDT
Country of Origin (subj.Austria
Current Rating8 A
DC contacts rating @R8A / 30V DC
Environmental Category .RTIII
FunctionGeneral Purpose
Height15.7mm
In-stock50000
IP ratingIP67
ManufacturerTE Connectivity
Manufacturer Part No.RTE25012
MfrTE Connectivity Potter .
MountingPCB
Mounting StyleThrough Hole
Mounting TypeThrough Hole
Number of pins8
Operate time7ms
Operating temperature-40...70?C
PackageBulk
Package/CaseDIP
Packaging MethodCarton, Tube
Part # Aliases2-1393243-0
Power Relay TypeStandard
Primary TypePower Relays
Product CategoriesGeneral Purpose / Indus.
Product CategoryGeneral Purpose Relays
Product Height15.7?mm?[?.618?in?]
Product Length29?mm?[?1.142?in?]
Product StatusActive
Product Width12.7?mm?[?.5?in?]
Rated coil voltage12V DC
Relay Mounting TypePrinted Circuit Board, .
Relay seriesRT2
Relay TypeElectromechanical
Relay variantminiature
Release time2ms
RoHs StatusRohs
Series*, RTE Series
StandardsCSARoHSULVDE
Switched voltagemax. 300V DC,
Switching Voltage400 VAC
Terminal pitch5mm
Terminal TypePCB-THT, Plug-In
TerminationPCB
Type of relayelectromagnetic
Voltage Rating12 V

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.com2-1393243-02.681697TE Connectivity / AMP Brand2.68 @ 1
Avnet2-1393243-05.327201500TE Connectivity5.327 @ 20
thumbzoomswatee.comRTE250126.31116TE Connectivity6.3 @ 1
HotendaH35681947.912256TE Connectivity Potter & Brumfield Relays7.9 @ 1
thumbzoomTMERTE250128.421In StockTE Connectivity8.42 @ 1
Newark48M79088.617504000POTTER&BRUMFIELD - TE CONNECTIVITY8.61 @ 750
thumbzoomZoroG50102642110.831500In StockTe Connectivity10.83 @ 1500
TE Connectivity2-1393243-011.36211921TE Connectivity (TE)11.362 @ 1
us.rs-online.com7028873711.731In StockTE Connectivity11.73 @ 1
RS Delivers680-395313.1281In StockTE Connectivity13.128 @ 1
Digi-Key1469066513.353In StockTE Connectivity Potter & Brumfield Relays13.35 @ 3
AmazonTPB07KX9JMVW38.061In Stock1TE Connectivity / AMP Brand38.06 @ 1
