CSD17552Q5A

mpnCSD17552Q5A
brandname: Texas Instruments
manufacturername: Texas Instruments

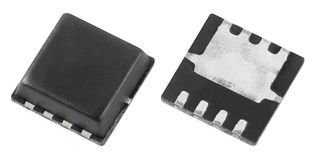

TEXAS INSTRUMENTS CSD17552Q5A MOSFET, N CHANNEL, 30V, 60A, 0.0051OHM, SON-8 (10 pieces)

TEXAS INSTRUMENTS CSD17552Q5A MOSFET, N CHANNEL, 30V, 60A, 0.0051OHM, SON-8 (10 pieces)

zoom

PartNumber: CSD17552Q5A
Size: 10 Piece
PackageQuantity: 10
Manufacturer: Texas Instruments
Label: Texas Instruments

Attributes

Key	Value
Base Product Number	CSD17552
Category	Discrete Semiconductor .
Current - Continuous Dr.	17A (Ta), 60A (Tc)
Drain to Source Voltage.	30 V
Drive Voltage (Max Rds .	4.5V, 10V
FET Feature	-
FET Type	N-Channel
Gate Charge (Qg) (Max) .	12 nC @ 4.5 V
Input Capacitance (Ciss.	2050 pF @ 15 V
Mfr	Texas Instruments
Mounting Type	Surface Mount
Operating Temperature	-55?C ~ 150?C (TJ)
Package	Tape & Reel (TR)
Package / Case	8-PowerTDFN
Power Dissipation (Max)	3W (Ta)
Product Status	Active
Rds On (Max) @ Id, Vgs	6.2mOhm @ 15A, 10V
Series	NexFET?
Supplier Device Package	8-VSONP (5x6)
Technology	MOSFET (Metal Oxide)
Vgs (Max)	?20V
Vgs(th) (Max) @ Id	1.9V @ 250?A

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Radwell	CSD17552Q5A	1.31	1	76		TEXAS INSTRUMENTS SEMI		1.31 @ 1
	Digi-Key	3830013	13.38	1	72		Texas Instruments		13.38 @ 1
