Dayton 4P916

mpn4P916
brandname: DAYTON
manufacturername: DAYTON

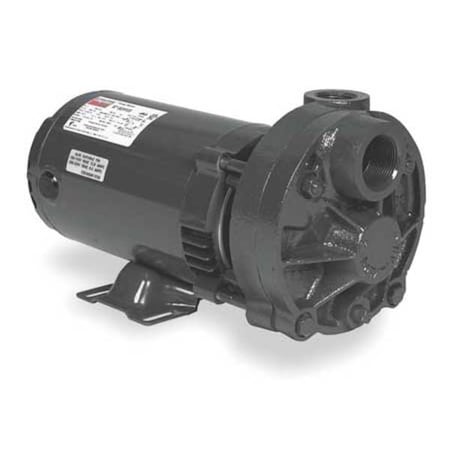

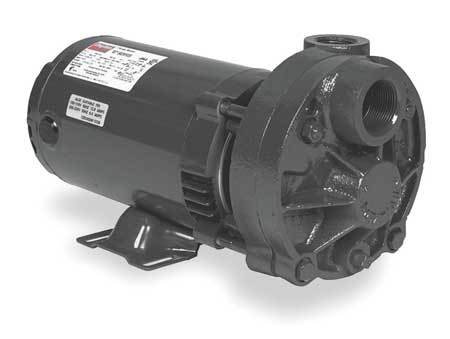

DAYTON 4P916 Bronze-fitted Turbine Pump

DAYTON 4P916 Bronze-fitted Turbine Pump

zoom

Brand: Dayton
PartNumber: 4P916
PackageQuantity: 1
Manufacturer: Dayton
Label: Dayton

Attributes

Key	Value
Agency Compliance	UL and CSA on Motor Only
Bearing Type	Sealed Ball Bearing (Mo.
Best Efficiency GPM @ H.	8.4 gpm @ 130 PSI ft., .
Brand	Dayton
Compatible Discharge Pi.	1 in
Compatible Intake Pipe .	1 1/4 in
Current Stock	3
Duty	Continuous
Frame	56C
GPM @ 10 PSI	11.1
GPM @ 100 PSI	9.0
GPM @ 20 PSI	10.8
GPM @ 30 PSI	10.6
GPM @ 50 PSI	10.2
GPM @ 60 PSI	10
GPM @ 75 PSI	9.4
Height	8-1/16", 8 1/16 in
Housing Material	Cast Iron
HP	1, 1 hp
Impeller Material	Bronze
Impeller Type	Regenerative Turbine
Includes	Cast Casing with Bronze.
Inlet	1-1/4"
Inlet (In.)	1-1/4
Inlet Pressure	200 PSI
Intake and Discharge Si.	1 1/4 in , 1 in
International Shipping	No
Item	Turbine Pump
Lead Time	Expected to ship in 1-2.
Manufacturer Warranty L.	1 yr
Manufacturers Warranty .	1 yr, 1 Year
Max. Case Pressure	300 PSI
Max. Dia. Solids	25 Microns
Max. Pressure	300 PSI
Max. Specific Gravity	1.00 SP
Motor Enclosure	ODP
Motor Type	Cap-Start, ODP
Mpn	4P916
Outlet	1 in, 1"
Overall Height	8.06 in
Overall Width	6.75 in
Phase	1
Port Rotation	90 Increments
Seal Material	Buna, Carbon, Ceramic, .
SKU	ZO-G1677715
Solid Diameter (Maximum)	25 micron
SubCategory	Pumps
UPC	190735331552
Voltage	115/230
Wetted Materials	Cast Iron, Bronze Fitte.
Width	6 3/4 in, 6-3/4"

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	grainger.ca	WWG4P916	1.69085315	1	59		DAYTON	43.5	1.69085315 @ 1
	Zoro	G1677715	1079.99	1	12		Dayton	43.5	1079.99 @ 1
	AmazonTP	B000LE4IIA	1259.07	1	59	5	Dayton Electric Manufacturing Co.		1259.07 @ 1
	sustainablesupply.com	C1740607	1316.45	1	In Stock		Dayton	43.5	1316.45 @ 1
	simsupply.com	ZO-G1677715	1320.7	1	3		Dayton		1320.7 @ 1
