- mpnES2105A
- brandname: Dranetz
- manufacturername: Dranetz

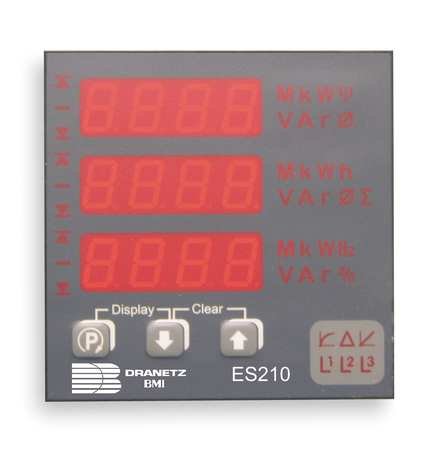

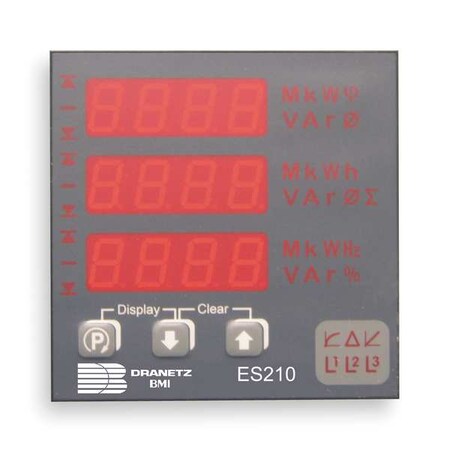

Digital Panel Meter, Power and Energy
- PackageQuantity: 1
- Manufacturer: DRANETZ
- Label: DRANETZ
Attributes
| Key | Value |
|---|
| Accuracy | +/-0.50% |
| Amps | 5 A |
| Connector Type | Screw Terminal |
| Country of Origin (subj. | Switzerland |
| Depth | 1.81 in |
| Display | Multiline Red LED |
| Display Digits | 4 |
| Display Span | 9999 |
| Enclosure Rating | IP20 |
| Fits | 1/4 DIN, 96 x 96mm Open. |
| Height | 3.87 in |
| Hz | 50/60 |
| Includes | Mounting Hardware and I. |
| Input Range | 3 Phase or 1 Phase, Lin. |
| Input Voltage | Line to Neutral 290 V, . |
| Interface | Front Keypad |
| Item | Power Meter |
| Measures | Amps, KVA, KVAh, KVAr, . |
| Meter Range | Line to Line 500 V AC, . |
| Mounting | 1/4 DIN or Panel |
| NEMA Rating | IP66 |
| Operating Temp. Range | -10 Degrees to 55 Degr. |
| Output | 2 Digital (Alarm or Pul. |
| Phase | 1 or 3 |
| Power Required | 85 to 253 V AC/DC, 45 t. |
| Standards | CE, EN61010. Protection. |
| Style | A210 |
| True RMS | Yes |
| Type | Power, Energy, Voltage . |
| Use With | 5 Amp Current Transform. |
| Width | 3.87 in |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| globaltestsupply.com | ES2105A | 414.46 | 1 | In Stock | | Dranetz Technologies | | 414.46 @ 1 |
 | Zoro | G0417514 | 556.92 | 1 | In Stock | 8 | Dranetz | 0.66 | 556.92 @ 1 |
 | sustainablesupply.com | C1758940 | 638.85 | 1 | In Stock | | Dranetz | 0.66 | 638.85 @ 1 |
