Intermatic K4251

mpnK4251
brandname: Intermatic
manufacturername: Intermatic

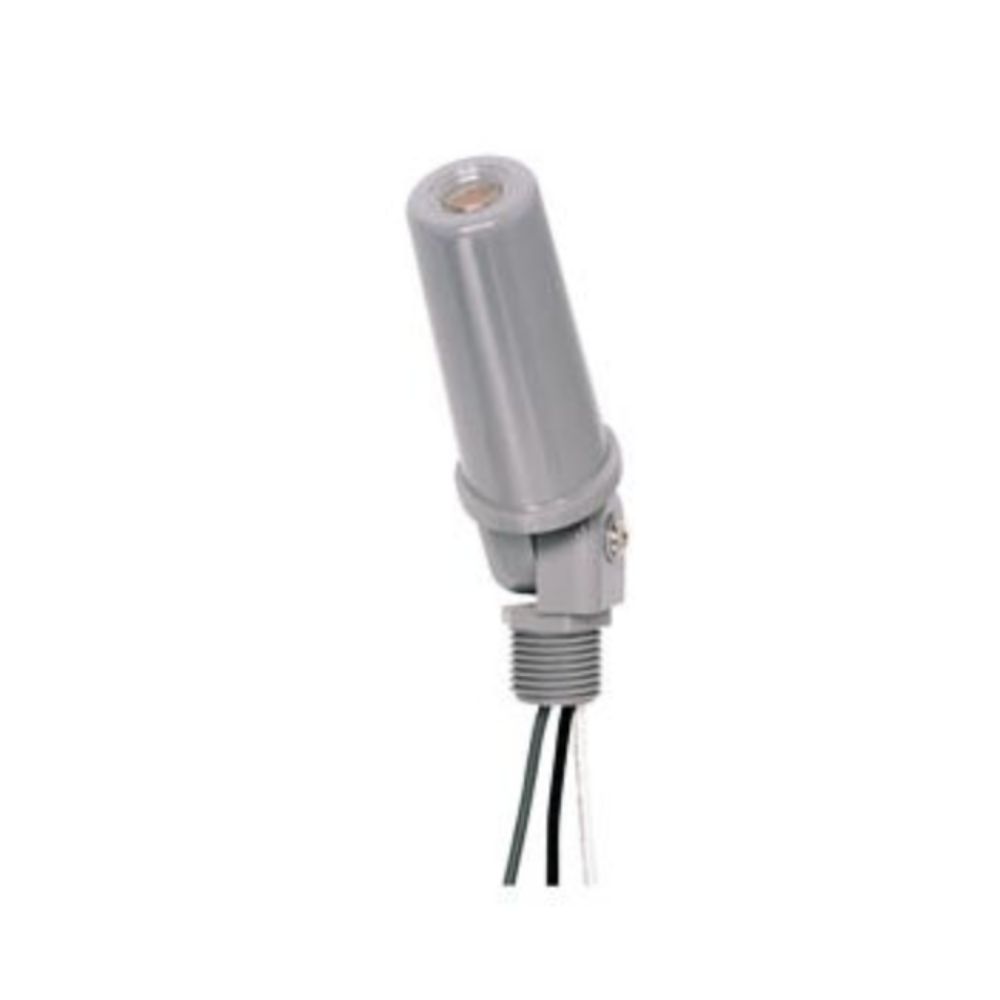

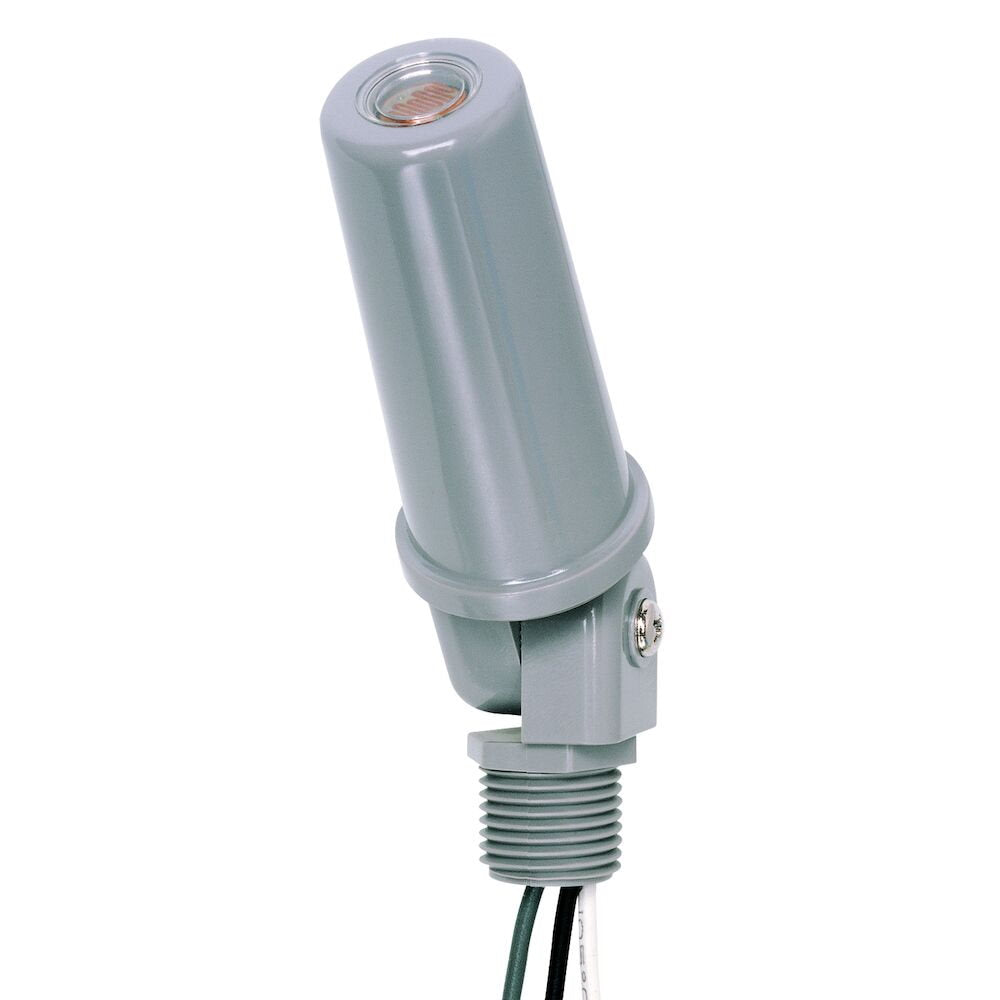

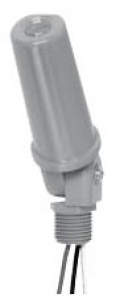

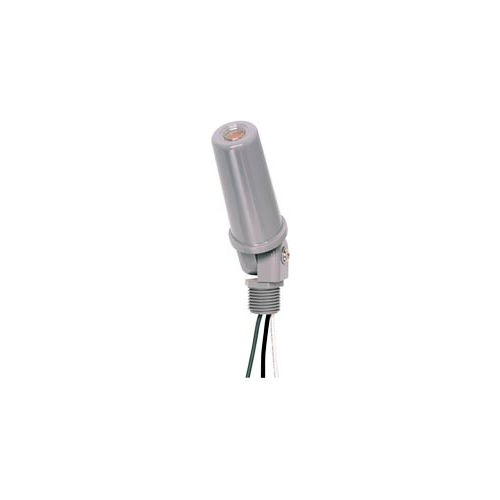

Intermatic K4251 120-Volt Thermal Photocontrols with Stem and Swivel Mounting

Brand: Intermatic
PartNumber: K4251
Model: K4251
Color: Color
PackageQuantity: 1
Binding: Tools & Home Improvement
Manufacturer: Intermatic Incorporated
Label: Intermatic Incorporated

Attributes

Key	Value
-40 Deg. F	Start Temp. (Min)
078275067752	UPC
1.5625	Width (in), Depth (in.)
1000 Watts	Watts Ballast
12	Case Quantity
120	Voltage (V)
150 Deg. F	Start Temp. (Max)
1800 Watts	Watts Tungsten
5.5	Length (in)
AMP	8.3, 15
Amperage Rating	15 A, 15 Amp Tungsten, .
Amps	15
Application	Municipal, Utility
Ballast Load	1000 VA
Brand Name	Intermatic
Certification Agency	PROP65
Certification Number	WARNING: Cancer and Rep.
Color	Gray
Color Finish Name	Grey
Colour	Gray
Connection Type	18 AWG, 6 Inch Wire Lead
Contact Configuration	SPST
Contact Form	SPST
Country of Origin	CN - China
Country Of Origin	China
CSA and UL Listed	UL Listed
CSA Certified	Yes
Depth	1 1/2 in
Description/Special Fea.	Photo Eye Located on To.
Description:	PCELL-SWV THN 120V
Dimensions	1-3/8 in Dia x 4 in H, .
ECCN	EAR99
Enclosure Type	Raintight
Energy Star Flag	No
Environmental Conditions	-40 to 158 deg F
Family Series	Intermatic Miscellaneous
Finish	No
Foot Candles Off	3 to 15
Foot Candles On	1.0 to 5.0
For Use With	Fluorescent, HID, Incan.
Frequency Rating	50/60 Hz
Gross Weight	0.3043 lbs
GTIN	00078275067752
Height	4 in
Housing Material	Polycarbonate
Includes	Washer Gasket, Lock Nut
Intermatic	Brand
Item	Photocontrol
Item Name	Photocontrol
Item Number	K4251
K4251	Stock Code
Length	5 1/2 in, 1-37/100 in
Length (Straight Wirewa.	5 1/2 in
Load Rating	1800 Watt at 15 Amp Tun.
Manufacturer	Intermatic
Manufacturer Name	Intermatic
Manufacturer Part Number	K4251
Manufacturers Warranty .	1 yr
Material	Polycarbonate, Plastic
Material Type	Polycarbonate
Max. Ballast Amps	8.3, 8.3 A
Max. Incandescent Amps	15.0, 15 A
Max. Wattage	1,800, 1800
MFG Part #:	K4251
Mounting	1/2-14 Stem and Swivel,.
Mounting Type	Stem and Swivel Mount, .
NEMA Configuration	No
Net Weight	0.3043 lbs
Outlet Type	No
Phase	No
Product Depth	1 3/8 in; 34.9 mm
Product Depth (in)	1.375
Product Height	4 in; 101.6 mm
Product Height (in)	4
Product Width	1 3/8 in; 34.9 mm
Product Width (in)	1.375
RoHS Flag	Contact manufacturer
Sensing Range	ON: 1 - 5 FC, OFF: 3 - .
Sensitivity	1 to 5 fc Turn On/3 to .
Sensor Type	Cadmium Sulfide
Series	K4200, K4100 Series
Setting	Dusk to Dawn, On at Dus.
Standards	CSA, California Proposi.
Stem and Swivel Mountin.	Family
Stem and Swivel Mountin.	Mounting
Supplier:	Intermatic
Temp. Range	-40 Degrees to 158 Deg.
Temperature Range	Up to 158 Deg F
Temperature Rating	-40 to 70 deg C
Time Delay	30 - 90 sec
Timing Range	30 to 90 s
Tungsten Rating	1800 W
Type	IK4251, Thermal, Rainti.
UNSPSC	39121524
UPC	078275067752, 078275067.
UPC Code	078275067752
UPC:	078275067752
VA Ballast	1000
Volt Amps	2
Voltage	120V AC
Voltage Rating	120 Volt AC, 120 VAC
Volts	120V
Volts AC	120
Watts	2000 W
Watts Tungsten	3100 to 4150
Width	1-3/8 in, 1 1/2 in
Wire Lead Length	6 in; 152 mm
Wire Size	18 AWG
Wire Size Max	#18 AWG
