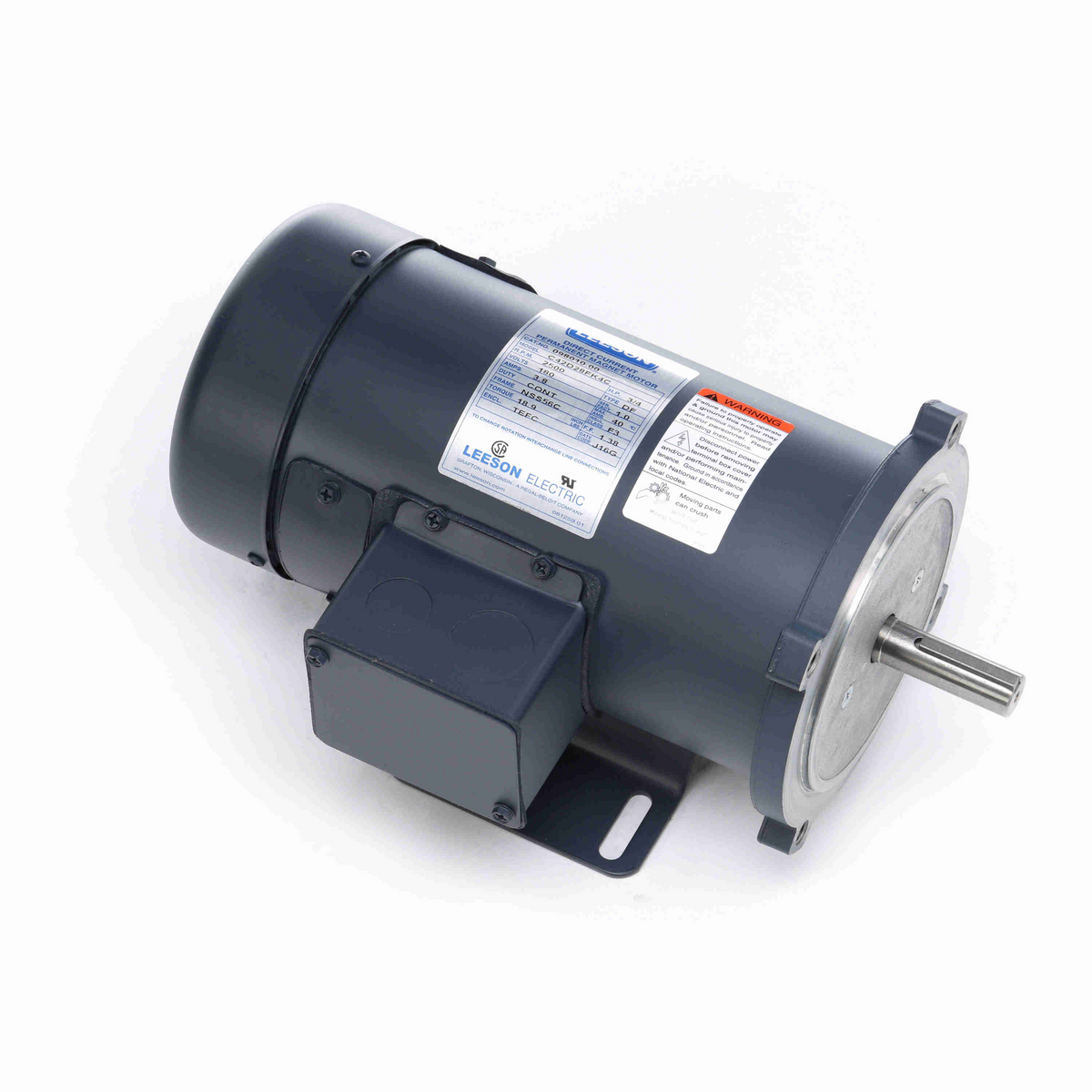

Leeson Electric 098010.00 C42D28FK4 Direct Current DC Motor-SCR Rated - Permanent Magnet, Brushed, 3/4 hp hp, 180 V, 2500 rpm, TEFC (Totally Enclosed Fan Cooled), NSS56C Frame

Leeson Electric 098010.00 C42D28FK4 Direct Current DC Motor-SCR Rated - Permanent Magnet, Brushed, 3/4 hp hp, 180 V, 2500 rpm, TEFC (Totally Enclosed Fan Cooled), NSS56C Framezoom

Attributes

Key Value
Amps3.8
Duty CycleContinuous
Efficiency72.1%
Enclosure TypeTEFC (Totally Enclosed .
Frame56C
HP3/4
Insulation ClassF
Maximum Ambient Tempera.40? C
Motor Shell Length7.50"
MountingC-Face/Rigid Base
Overall Length11.81"
PhaseDC
Product TypeDC
RotationReversible
RPM2500
Service Factor1.0
Shaft Diameter0.625"
Shaft Length2.06"
Ship Weight25 lbs.
Volts180VDC

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomemotorpro.com98010508.181In StockLeeson25.0508.18 @ 1
factorysupplyoutlet.comBN23KW782.111In StockLEESON782.11 @ 1
thumbzoomNational Supply NetworkB236721786.822In StockLEESON ELECTRIC786.82 @ 2
